YS TECH FD126025HB-N(2A7) Axial fan 12 V DC 42.66 m³/h (L x W x H) 60 x 60 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
2.16 W
Type of bearing
Double ball bearing
Air flow rate
42.66 m³/h
Datasheet (PDF)
165 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€
Technical specifications
- Product type
Axial fan
- Type
FD126025HB-N(2A7)
- Nominal voltage
12 V DC
- Max. current consumption
180 mA
2.16 W
- Type of bearing
Double ball bearing
- Rotational speed
4200 U/min
- Noise emission (max.)
36 dB
- Air flow rate
42.66 m³/h
- Cable length
29.00 cm
- Factory colour
Black
- Material
Plastic
75000 h
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
60 mm
- Width
60 mm
- Height
25 mm
- Dim

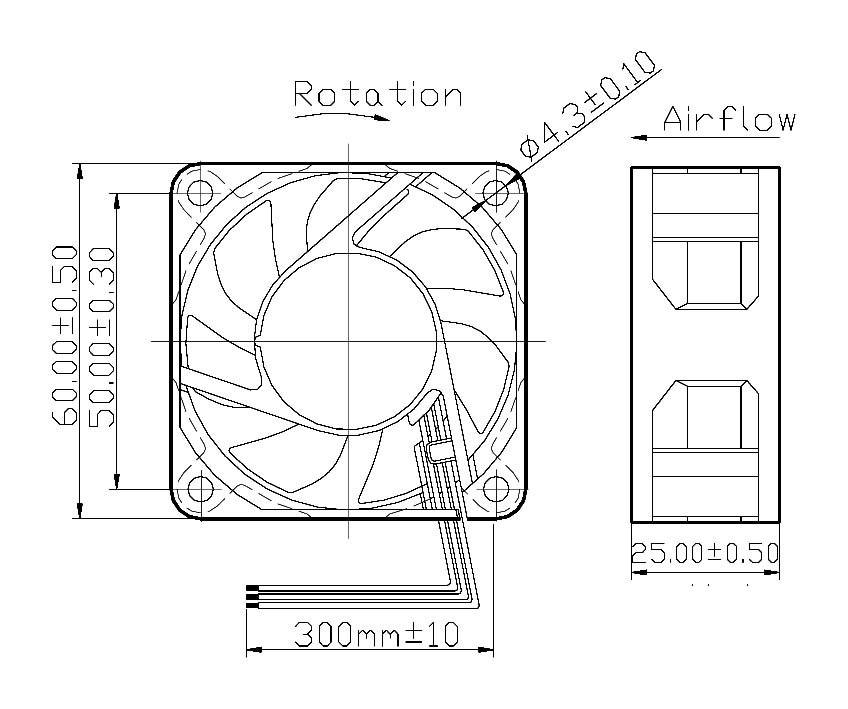

(L x W x H) 60 x 60 x 25 mm
Documents & Downloads
Datasheet
Datasheet 1208379 YS TECH FD126025HB-N(2A7) Axial fan 12 V DC 42.66 m³/h (L x W x H) 60 x 60 x 25 mm
Description
Hints
The cable ends are open, i.e. without plug system!
