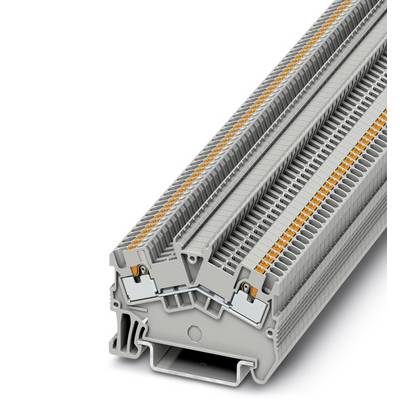

Feed-through terminal block PTS 1,5/S 3214547 Phoenix Contact
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.14 mm²
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 36.13 / piece)
€ 59.66
-39 %
€
Highlights & Details
Feed-through terminal block PTS 1,5/S
- PTS 1,5/S
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
16
- Clamp width
3.5 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3214547
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTS 1,5/S
- Dim
(L x W x H) 50.7 x 3.5 x 37 mm
- Width
3.5 mm
- Height
37 mm
- Length
50.7 mm
- Flammability rating
V0
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 589046 Feed-through terminal block PTS 1,5/S 3214547 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589046 Feed-through terminal block PTS 1,5/S 3214547 Phoenix Contact
Description
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, Width: 3.5 mm, Height: 37 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
