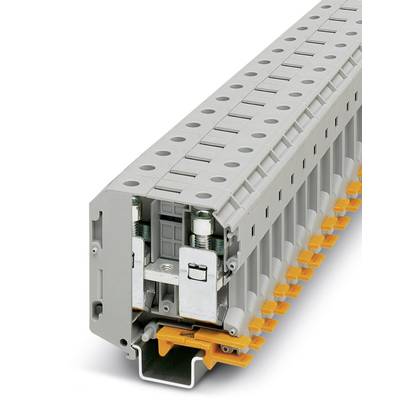

Feed-through terminal block UKH 70 3213140 Phoenix Contact
EAN:
Part number:
Item no:
Connection
Screws
Cross section (flexible) (min.)
25 mm²
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (min.)
16 mm²
Cross section (inflexible) (max.)
95 mm²
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 18.49 / piece)
€ 247.90
-25 %
€
Highlights & Details
Feed-through terminal block UKH 70
- UKH 70
Technical specifications
- Connection
Screws
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
95 mm²
- AWG (min.)
4
- AWG max.
3
- Clamp width
20.3 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
192 A
- Nominal current - rounded value
192 A
- Nominal voltage
1000 V
- Stripping length (max.)
24 mm
- Manufacturer part #
3213140
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
UKH 70
- Dim
(L x W x H) 70.5 x 20.3 x 78.3 mm
- Width
20.3 mm
- Height
78.3 mm
- Length
70.5 mm
- Flammability rating
V0
- Product type
High power terminal
Documents & Downloads
Datasheet
Datasheet 718820 Feed-through terminal block UKH 70 3213140 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718820 Feed-through terminal block UKH 70 3213140 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Number of positions: 1, Cross section: 16 mm² - 95 mm², AWG: 4 - 3/0, Width: 20.3 mm, Height: 78.3 mm, Color: gray, Mounting type: NS 35/15, NS 32
