FIAP 2408 BioSkim Active 12.000 Surface skimmer (L x W x H) 720 x 250 x 800 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 2,133.61 / piece)
€
Only 1 Piece(s) available
Highlights & Details

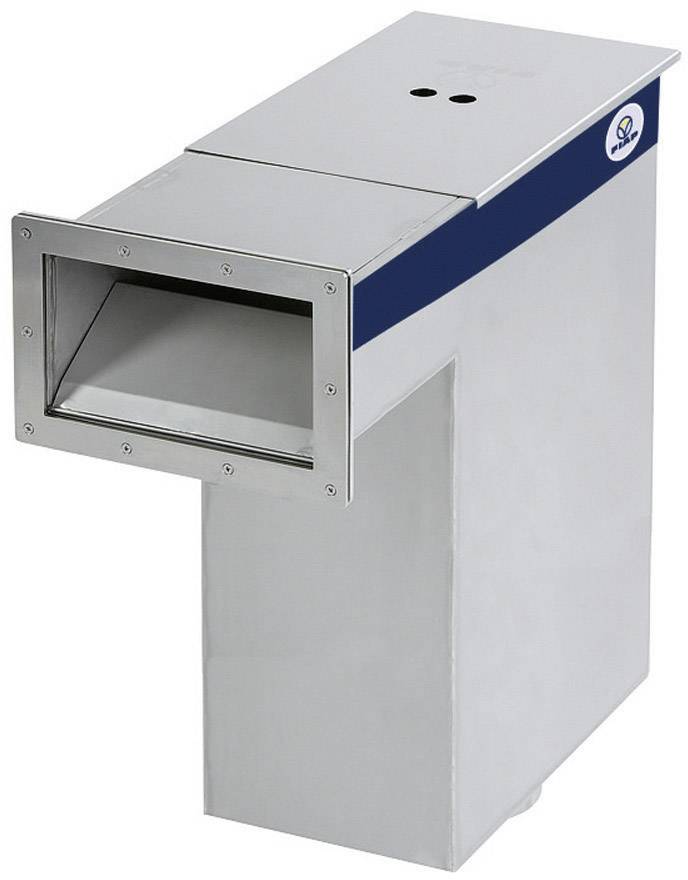

FIAP BioSkim ACTIVE 12,000 - Pond skimmer
- Recommended pump capacity of 4,500 - 20,000 l/h
- Dirt particles larger than 0.3 mm are filtered out
- Installation directly in the masonry (wall thickness up to 260 mm) is possible.
- This text is machine translated.
Technical specifications
- Connection
DN 150 and 2" female thread
- Output
12000 l/h
- Dim
(L x W x H) 720 x 250 x 800 mm
- Length
720 mm
- Width
250 mm
- Height
800 mm
- Weight
33 kg
- Factory colour
Stainless steel
n.rel.
- Product type
Surface skimmer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 520808 FIAP 2408 BioSkim Active 12.000 Surface skimmer (L x W x H) 720 x 250 x 800 mm 1 pc(s)
Description

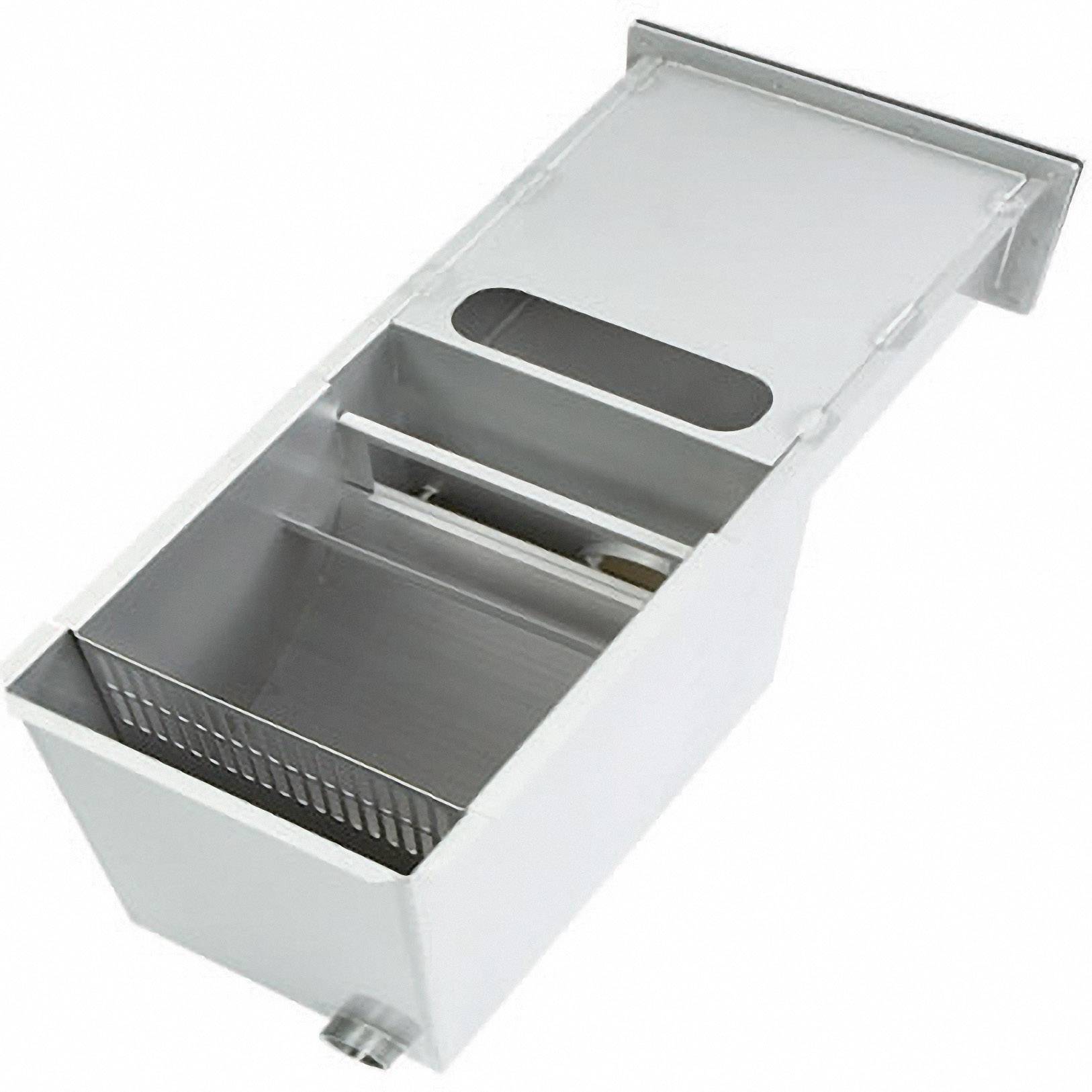

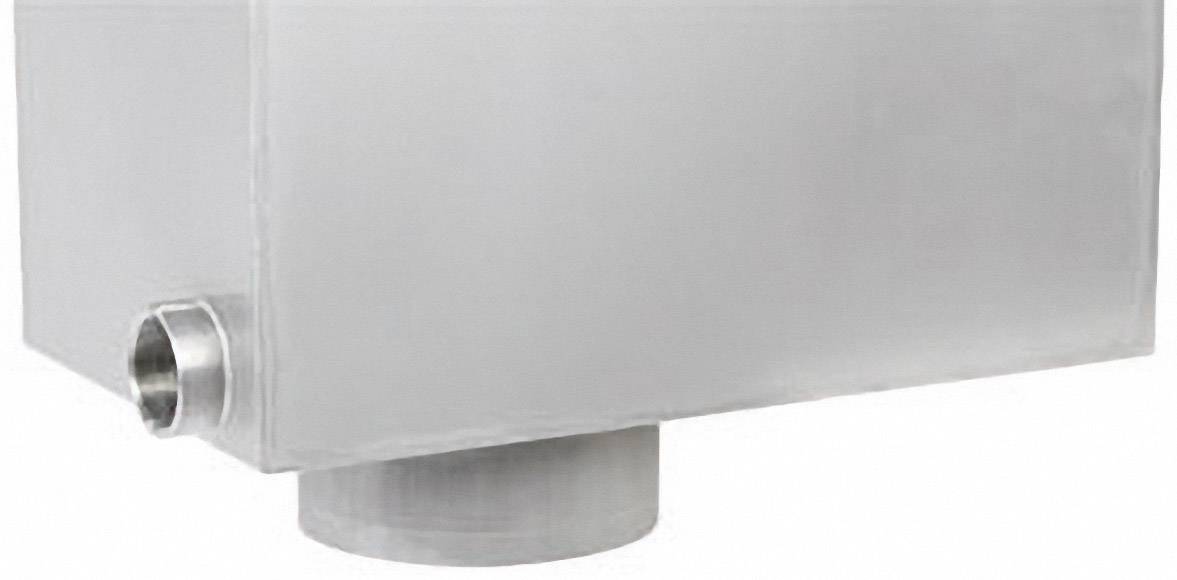

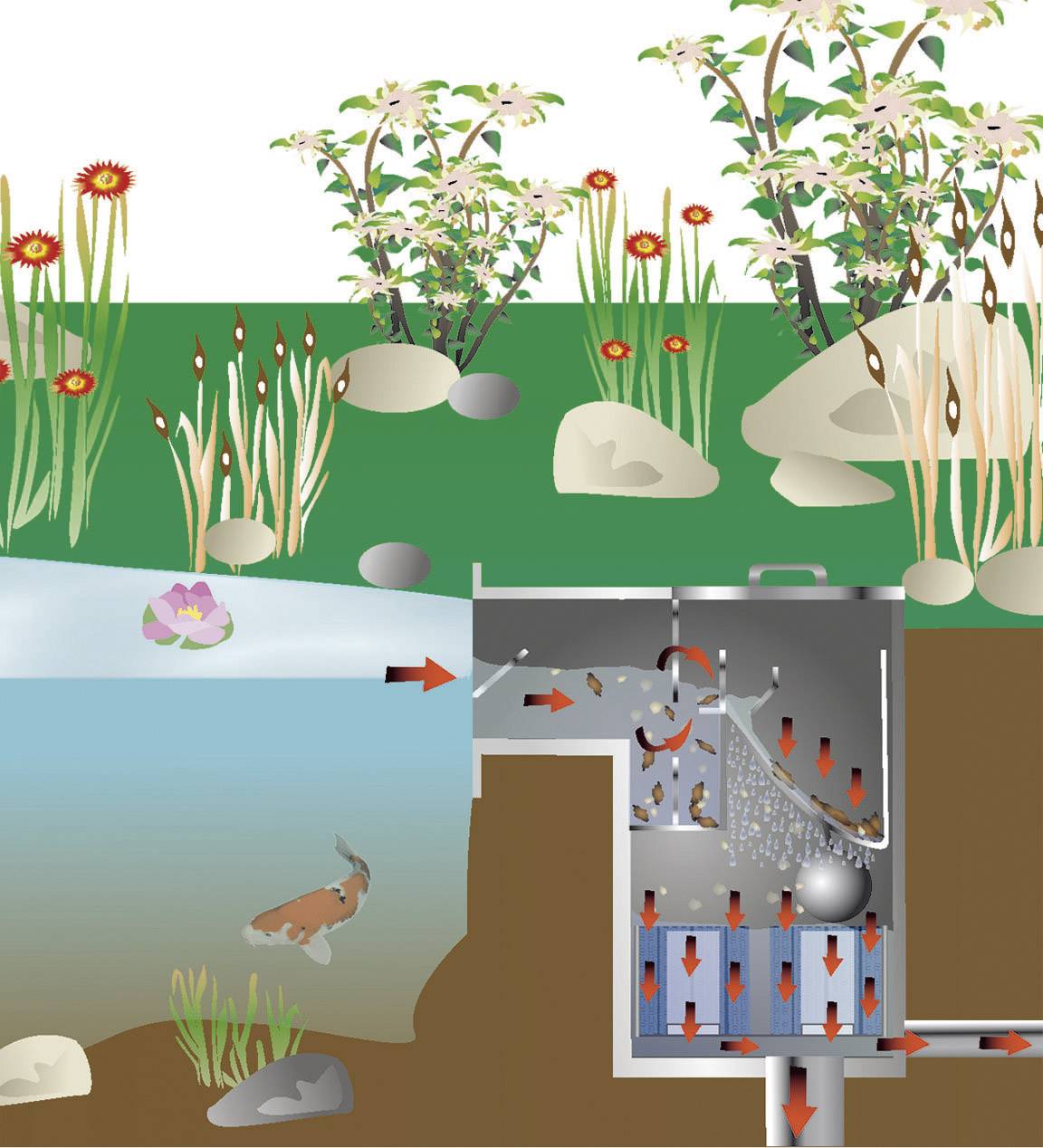

The professional extraction of the water surface for each garden, koi and swimming pond combined with biological water treatment. Through a precisely functioning skimmer, it sucks in the surface water only and thereby pulls dirt and dust from the pond. An important component is the split screen attached to the large inner basket with a self-cleaning effect. The accumulated dirt can be easily disposed of by lifting and emptying the inner basket. Ideal installation at the edge of the pond by entering the ground. Installation also directly into the wall (wall thickness up to 260 mm) possible. Recommended pump capacity 4,500 - 20,000 l/h. Connections DN 150 (gravity) or 44.9 mm / 1½ "IG (pump version). Made from stainless steel
This text is machine translated.
This text is machine translated.
Scope of delivery
- With 6 bits. Stainless steel counter flange.
