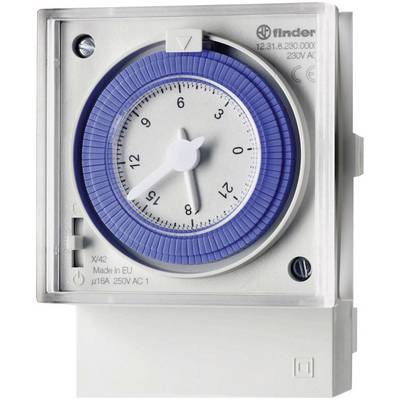

Finder 12.31.8.230.0000 Timer (front-mount) 230 V AC Weekday settings
EAN:
Part number:
Item no:
Type
Weekday settings
Contact type
1 change-over
Switching current (max.)
16 A
Product type
Timer (front-mount)
Type
12.31.8.230.0000
Datasheet (PDF)
7 Piece(s)
Sales and shipping:
Number
Total (€ 65.54 / piece)
€
Only 7 Piece(s) available
Highlights & Details
Mechanical timer clock for front installation, series 12.31
Technical specifications
- Min. power reserve: 70 h
- Type
12.31.8.230.0000
- Type
Weekday settings
- Switching distance (min)
15 min
- No. of switching intervals
96
- Power reserve
100 h
- Operating voltage
230 V AC
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Min. temperature
-10 °C
- Max. temperature
+50 °C
IP20
- Width
72 mm
- Height
91.5 mm
- Depth
51.4 mm
- Dim
(W x H x D) 72 x 91.5 x 51.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Daytime program
- Contact load capacity
(at 230 V): Incandescent bulbs 2000 W, compensated luminescent bulbs 750 W, uncompensated luminescent bulbs 1000 W, halogen lamps 2000 W
- Switching capacity
(AC1) 4000 VA
- Switching voltage
250 V AC
- Switching current
16 A
- Type
12.31.8.230.0000
- Ambient temperature
-10 - +50 °C
- Time range
96 switching slots/day, shortest switching distance 15 min
- Operating voltage
230 V/50 - 60 Hz
- Product type
Timer (front-mount)
Documents & Downloads
Datasheet
Datasheet 506032 Finder 12.31.8.230.0000 Timer (front-mount) 230 V AC Weekday settings
User & Safety Instructions
User & Safety Instructions 506032 Finder 12.31.8.230.0000 Timer (front-mount) 230 V AC Weekday settings
Description
Mechanical timer, easily adjustable control panel installation and surface mounting (front frame 72 x 72 mm).
Hints
Approvals: CE.
