Finder 38.52.0.125.0060 Crossbar switch 125 V DC/AC 8 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
125 V DC/AC
Switching current (max.)
8 A
Type
38.52.0.125.0060
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 25.20
30
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 25.20 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Reversed
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: Yes
- Product type
Crossbar switch
- Type
38.52.0.125.0060
- Connection
Screw terminal
- Contact type
2 change-overs
- Nominal voltage
125 V DC/AC
- Switching current (max.)
8 A
- Features
+ LED
IP20
- Depth
77.1 mm
- Width
14 mm
- Height
89.7 mm
- Dim
(W x H x D) 14 x 89.7 x 77.1 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3323476 Finder 38.52.0.125.0060 Crossbar switch 125 V DC/AC 8 A 2 change-overs 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3323476 Finder 38.52.0.125.0060 Crossbar switch 125 V DC/AC 8 A 2 change-overs 1 pc(s)
Description

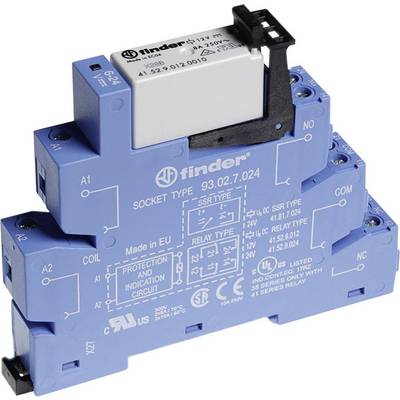

Coupling relays for DIN rail with screw terminals, 2 changer 8 A / 250 V AC coil voltage 125 V AC/DC, contact material AgNi, LED and EMC interference suppression are integrated in the socket
