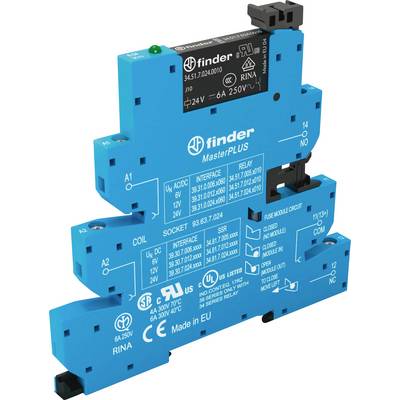

Finder 39.31.0.024.4060 Crossbar switch 24 V DC/AC 6 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
47 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: Yes
- Type
39.31.0.024.4060
- Connection
Screw terminal
- Contact type
1 change-over
- Nominal voltage
24 V DC/AC
- Switching current (max.)
6 A
- Features
+ LED
IP20
- Depth
90.7 mm
- Width
6.2 mm
- Height
94.3 mm
- Dim
(W x H x D) 6.2 x 94.3 x 90.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Product type
Crossbar switch
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3322983 Finder 39.31.0.024.4060 Crossbar switch 24 V DC/AC 6 A 1 change-over 1 pc(s)
Description
MasterPLUS narrow coupling relay for DIN rail, with screw connections, modular design, 1 changer for 6 A contact material AgSnO², universally applicable as coupling relays in the input to the PLC or in the output of the PLC for controlling actuators, LED display, terminals A1 or A2 and 11 can be bridged, Output fuse module type 093.63 for 5 x 20 mm fine-wire fuses instead of dummy plug used, coil voltage 24 V AC/DC
