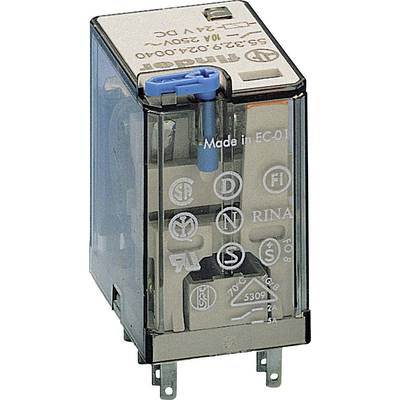

Finder 55.32.9.048.0090 Plug-in relay 48 V DC 10 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
48 V DC
Contact type
2 change-overs
Switching current (max.)
10 A
Connection
Connector
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 13.44
30
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 13.44 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Reversed
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
55.32.9.048.0090
- Coil nominal voltage
48 V DC
- Contact type
2 change-overs
- Switching current (max.)
10 A
- Connection
Connector
- Features
+ LED
IP20
- Width
20.7 mm
- Height
37.2 mm
- Depth
27.7 mm
- Dim
(W x H x D) 20.7 x 37.2 x 27.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
20.7
37.2 mm
27.7 mm
20 A
FALSE
Polarized
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
48-48 V
DC
TRUE
38.4-52.8 V
DC
0
0
2
Description
Miniature plug-in relay 2 changer for 10 A / 250 V AC, contact material AgNi, Sofa, coil data 48 V DC, 1 W, 2400 Ohm, manual operation and LED and snubber diode (+on A1/13 DC, standard polarity) Relay protection type: RT I
