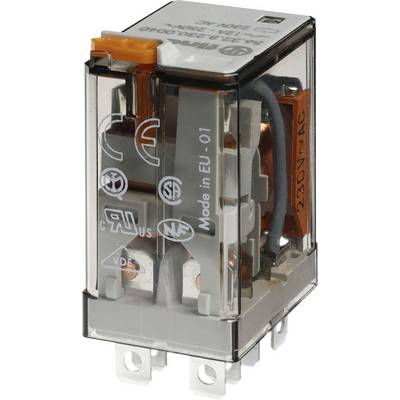

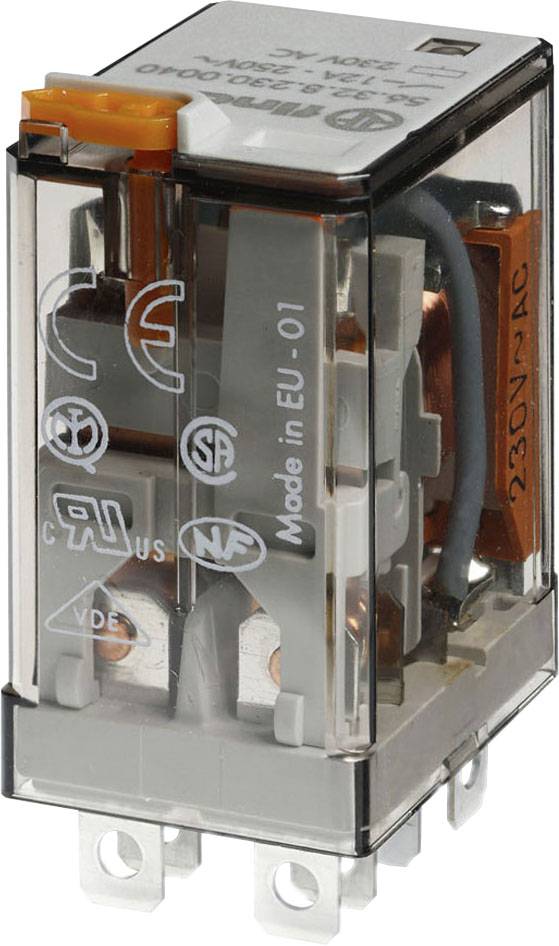

Finder 56.32.8.024.0050 Plug-in relay 24 V AC 12 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
24 V AC
Contact type
2 change-overs
Switching current (max.)
12 A
Connection
Connector
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 13.44
30
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 13.44 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
56.32.8.024.0050
- Coil nominal voltage
24 V AC
- Contact type
2 change-overs
- Switching current (max.)
12 A
- Connection
Connector
- Features
+ LED
IP20
- Width
20.7 mm
- Height
37.7 mm
- Depth
27.7 mm
- Dim
(W x H x D) 20.7 x 37.7 x 27.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
12 A
20.7
36.8 mm
27.7 mm
20 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
24-24 V
24-24 V
AC
TRUE
19.2-26.4 V
19.2-26.4 V
AC
0
0
2
Description
Power plug-in relay 2 changer for 12 A / 250 V AC, contact material AgNi, coil data 24 V AC, 1.5 VA, 190 Ohm, blocking/momentary operation and LED display, relay protection type: RT I
