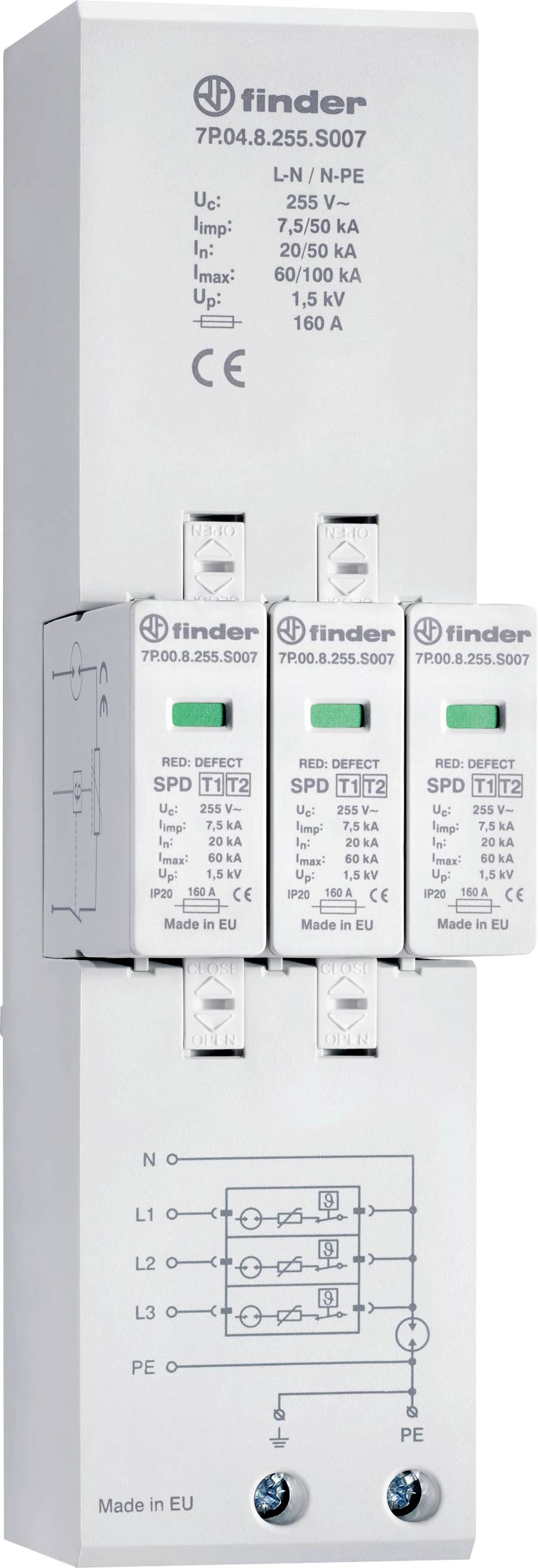

Finder 7P.04.8.255.S007 7P.04.8.255.S007 Surge arrester 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
18 Piece(s)
Sales and shipping:
Number
Total (€ 168.06 / piece)
€
Technical specifications
- Lightning surge current 7.5 kA
- Nominal leakage surge current 20 kA
- Product type
Surge arrester
- Nominal voltage
230 V AC
- Type
SPD type 1+2
- Operating temperature
-40 - +80 °C
- Manufacturer part #
7P.04.8.255.S007
- Dim
(W x H x D) 54 x 207 x 102 mm
- Width
54 mm
- Height
207 mm
- Depth
102 mm
- Content
1 pc(s)
- Weight
0.64
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2377814 Finder 7P.04.8.255.S007 7P.04.8.255.S007 Surge arrester 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2377814 Finder 7P.04.8.255.S007 7P.04.8.255.S007 Surge arrester 1 pc(s)
Description
Lightning and surge arresters type 1+2 for 40 mm busbar, 7.5 kA per path, 4-conductor system, L1, L2, L3, PEN, replaceable module, visual defect display, holding system for the modules, for busbars 40 mm, can be used for the discharge of lightning currents up to 7.5 kA per pole. Installation in the pre-counter area at the interface of zones LPZ 0 to LPZ 1, especially in main switchgear systems before measuring systems.
