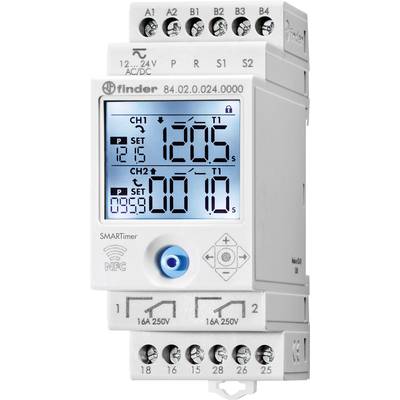

Finder 84.02.0.024.0000 84.02.0.024.0000 TDR 24 V DC 1 pc(s) 2 change-overs
EAN:
Part number:
Item no:
Datasheet (PDF)
29 Piece(s)
Sales and shipping:
Number
Total (€ 113.44 / piece)
€ 142.86
-21 %
€
Highlights & Details
Multifunction timer relay Smartimer 84.02 with NFC interface
- Two programming modes - smart and classic modeHigh precision and precise time settingsProgramming lock by assigning a PINUp and down time
Technical specifications
- Time range(s): 0.1 s - 9999 h.
- Type
84.02.0.024.0000
- Operating voltage
24 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
2 change-overs
- Contact material
AgNi
- Switching voltage (max.)
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
1000 VA
- Min. temperature
-20 °C
- Max. temperature
+50 °C
IP20
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
35
56.5 mm
88.8 mm
FALSE
Screw connection
12-24 V
12-24 V
12-24 V
IP20
AC/DC
- Product type
TDR
Documents & Downloads
Datasheet
Datasheet 1487845 Finder 84.02.0.024.0000 84.02.0.024.0000 TDR 24 V DC 1 pc(s) 2 change-overs
User & Safety Instructions
User & Safety Instructions 1487845 Finder 84.02.0.024.0000 84.02.0.024.0000 TDR 24 V DC 1 pc(s) 2 change-overs
Information
Information 1487845 Finder 84.02.0.024.0000 84.02.0.024.0000 TDR 24 V DC 1 pc(s) 2 change-overs
Description
In "Smart" mode with smartphone via NFC communication or "Classic" mode can be programd with joystick. Large backlit display for easy reading of all information during programming and normal operation. By flexible inputs in the two channels with 25 functions each, it is possible to program further new functions. Adjustable times up to 4 digits between 0.1 second and 9999 hours. Large display for displaying the adjustable times, the time course, the functions, the input commands and the output contacts.
This text is machine translated.
This text is machine translated.
Features
- One common reset input (selectable per channel or both channels)One common pause input (selectable per channel or both channels)Two independant start inputs (S1/S2) - one start input per channel
Hints
Approvals: cULus, EAC.
