Buy Finder 86.00.0.240.0000 86.00.0.240.0000 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 3 change-overs

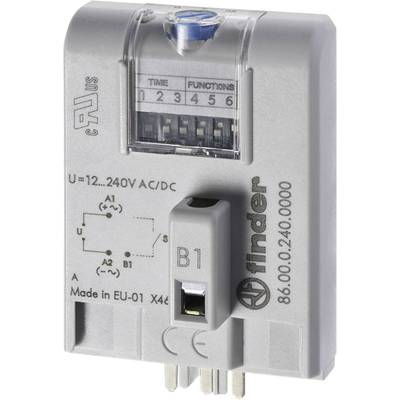

Grey-white time switch relay by Finder with transparent cover, six setting functions and connection diagram. Made in EU.

Circuit diagram shows three terminals A2, A1 and B1. A1 connected to B1 via switch 'S'. Voltage U indicated between A2 and A1.

Diagram of an electrical component with dimensions: width 38 mm, height 54 mm, depth 10.5 mm and 6.3 mm. Side and front views shown.

1/3

Datasheet (PDF)

99 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 43.69 / piece)

€

Report legal concerns

Highlights & Details

Industrial timer module series 86.00

Technical specifications

Suitable for: screw sockets 90.02 and 90.03 (series 60)

Type: 86.00.0.240.0000

Type: Multifunction

Functions: On-delay
Single shot leading edge
Flasher, asymmetric, pulse ON
Off-delay
On-/Off-delay
Single shot leading edge, puls shaper
Single shot trailing edge
Single shot leading and trailing edge

Min. operating voltage: 12 V DC
12 V AC

Max. operating voltage: 240 V DC
240 V AC

Operating voltage: 12, 12 - 240, 240 V DC, V AC

Contact type: 3 change-overs

Contact material: AgNi

Time range (min.): 0.05 s

Time range (max.): 100 h

Time range(s): 1 s
10 s
100 s (value.1402885)
10 min
100 min
10 h
100 h

Min. temperature: -20 °C

Max. temperature: +50 °C

: IP20

Length: 38 mm

Width: 54 mm

Height: 16.8 mm

Dim: (L x W x H) 38 x 54 x 16.8 mm

Content: 1 pc(s)

Switching capacity: -

Switching voltage: -

Switching current: -

Type: 86.00.0.240

Time range: 7 ranges from 50 ms - 100 h

Operating voltage: 12 - 240 V DC/AC

: 16 A

: 38

: 54 mm

: 16.8 mm

: FALSE

: Screw connection

: 12-240 V

: 12-240 V

: 12-240 V

: AC/DC

: IP20

: 10.2-265 V

: 10.2-265 V

: 10.2-265 V

: AC/DC

Product type: TDR

Documents & Downloads

Datasheet

Datasheet 503163 Finder 86.00.0.240.0000 86.00.0.240.0000 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 3 change-overs

User & Safety Instructions

User & Safety Instructions 503163 Finder 86.00.0.240.0000 86.00.0.240.0000 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 3 change-overs

Information

Information 503163 Finder 86.00.0.240.0000 86.00.0.240.0000 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 3 change-overs

Conformity certificate

Conformity certificate 503163 Finder 86.00.0.240.0000 86.00.0.240.0000 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 3 change-overs

Description

Timer module for sockets 90.02 and 90.03 (series 60). To create an industrial timer relay with 2 or 3 changeover contacts for 10 A and 8 time functions. 7 time ranges up to 100 h, selected with a DIP switch.
