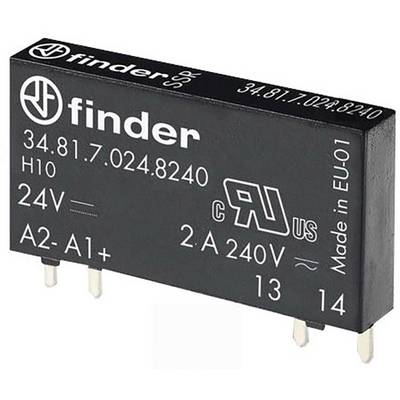

Finder SSR 34.81.7.024.8240 Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 21.00
€
Highlights & Details
Solid state PCB relays, series 34
Technical specifications
- Relay protection type: RT III
- Type
34.81.7.024.8240
- Switching type
Zero crossing
- Control voltage (min.)
16 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
16 - 30 V DC
- Control current (max.)
7 mA
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
275 V AC
- Contact type
1 maker
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
5 mm
- Height
15.5 mm
- Length
28 mm
- Content
1 pc(s)
- Type
SSR:
- Permanent current (max.)
2 A
- Nominal control voltage
24 V DC
- Switching current
2 A
- Dielectric strength
2500 V
- Type
34.81.7.024.8240
- Ambient temperature
-20 - +60 °C
- Current load
2 A
- Operating voltage
24 (16 - 30) V DC
FALSE
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 503228 Finder SSR 34.81.7.024.8240 Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 503228 Finder SSR 34.81.7.024.8240 Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)
Information
Information 503228 Finder SSR 34.81.7.024.8240 Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)
Description
Very slim electronic load/PCB relay, silent, rapid switching, long service life.
Hints
Series 34, electronic power relay (SSR), miniature PCB relay
