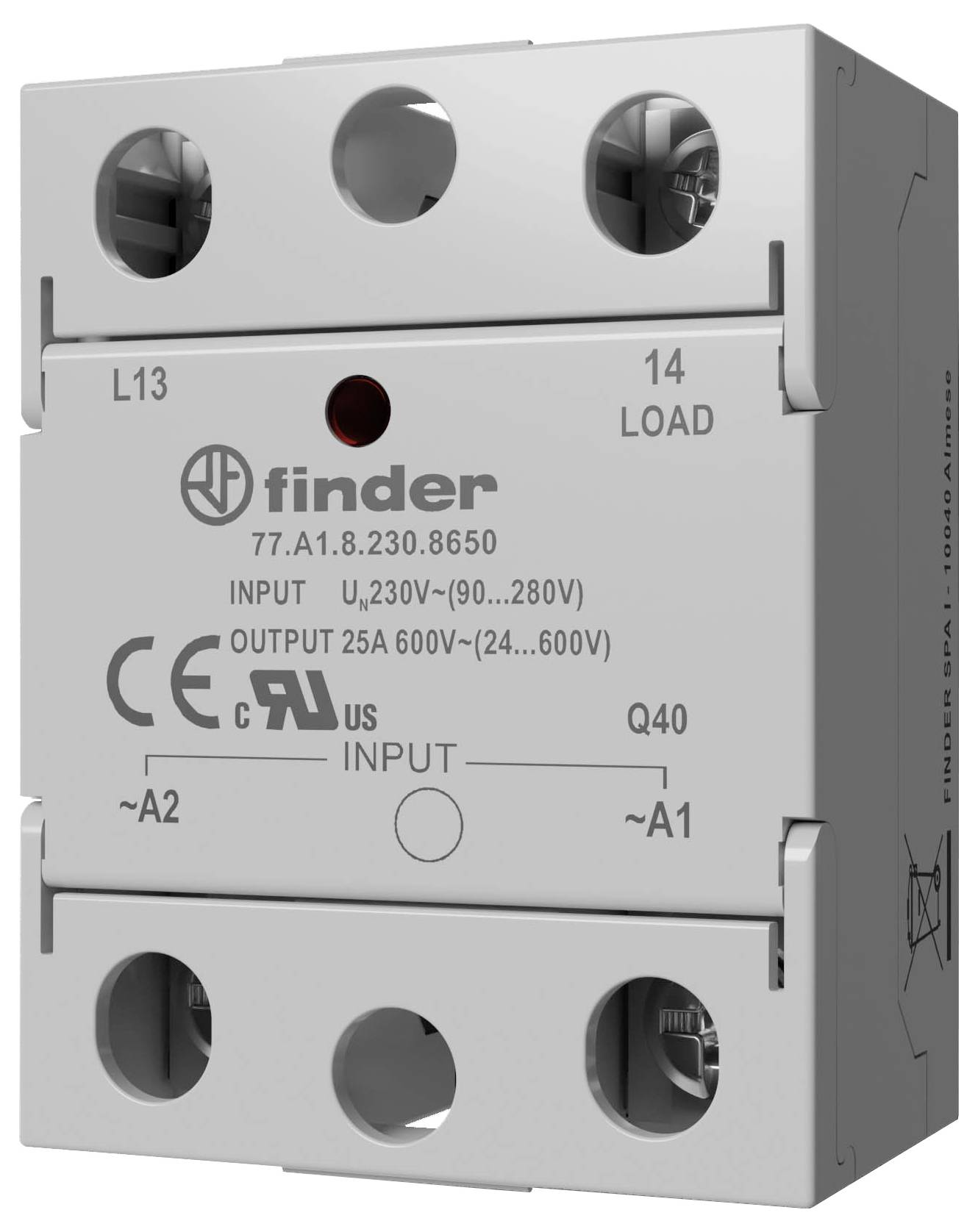

Image similar

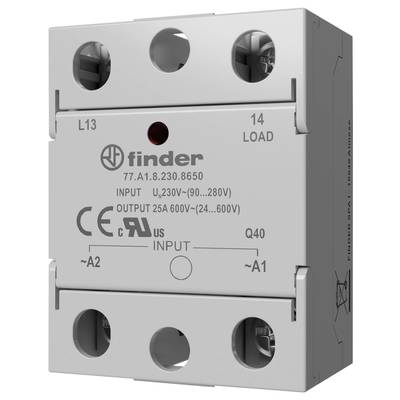

Image similar
Finder SSR 77A182308250 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
15 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€
Technical specifications
- Input voltage 230 Vac
- Inrush current: Up to 300 A for 10 ms
- Minimum switching current 100 mA at 250 V/AC
- Thermal output at In:30 W
- Periodic Peak Reverse Voltage: 600 Vpk
- Residual current in "OFF" state at rated voltage: 0.1 mA
- Dielectric strength input to output 4 kV
- Design: With LED
- Type
77.A1.8.230.8250
- Switching type
Zero crossing
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
25 A
- Contact type
1 maker
- Min. temperature
-30 °C
- Max. temperature
+80 °C
IP20
- Width
45 mm
- Height
29.40 mm
- Length
59 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Permanent current (max.)
25 A
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 3343684 Finder SSR 77A182308250 25 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Description
Features
- SSR relay;
- Hockey puck housing with fold-out terminal cover
- Long life and switching speed
- Noiseless switching
- Arc-and bounce-free switching
- Low control power
- For mounting on a control cabinet or heatsink
- This text is machine translated.
