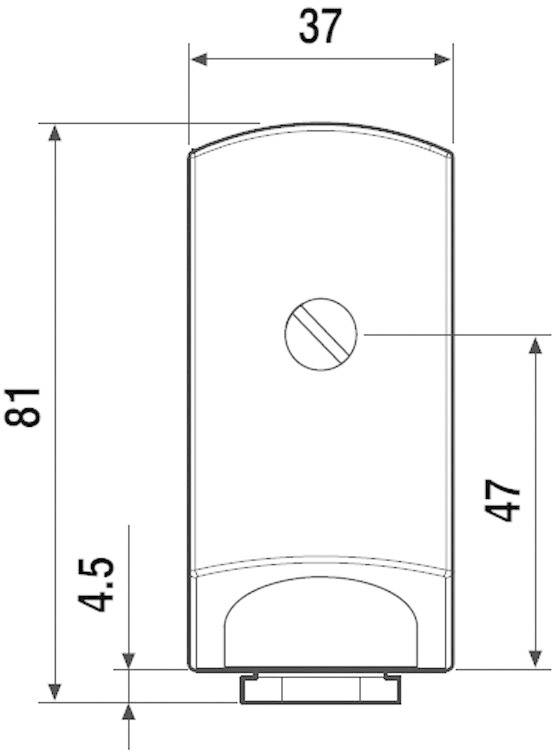

Technical drawing of a rectangular enclosure with dimensions: height 81 mm, width 37 mm, including a circular recess in the upper area.

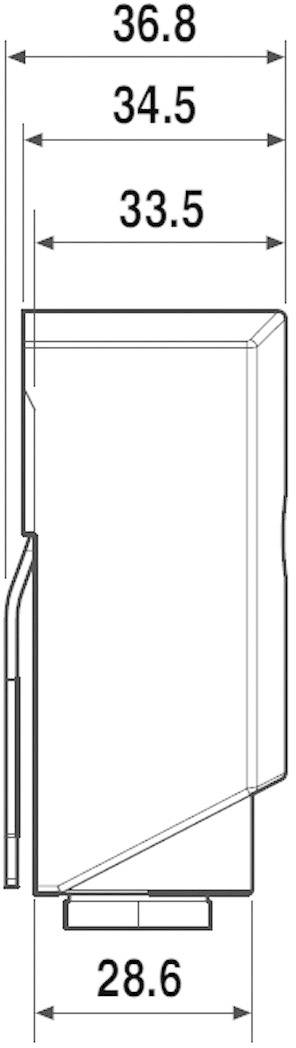

Technical drawing of a component with multiple dimensional specifications: width at the top 36.8 mm, 34.5 mm, 33.5 mm; at the bottom 28.6 mm.

1/3

Finder

Datasheet (PDF)

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€

Report legal concerns

Highlights & Details

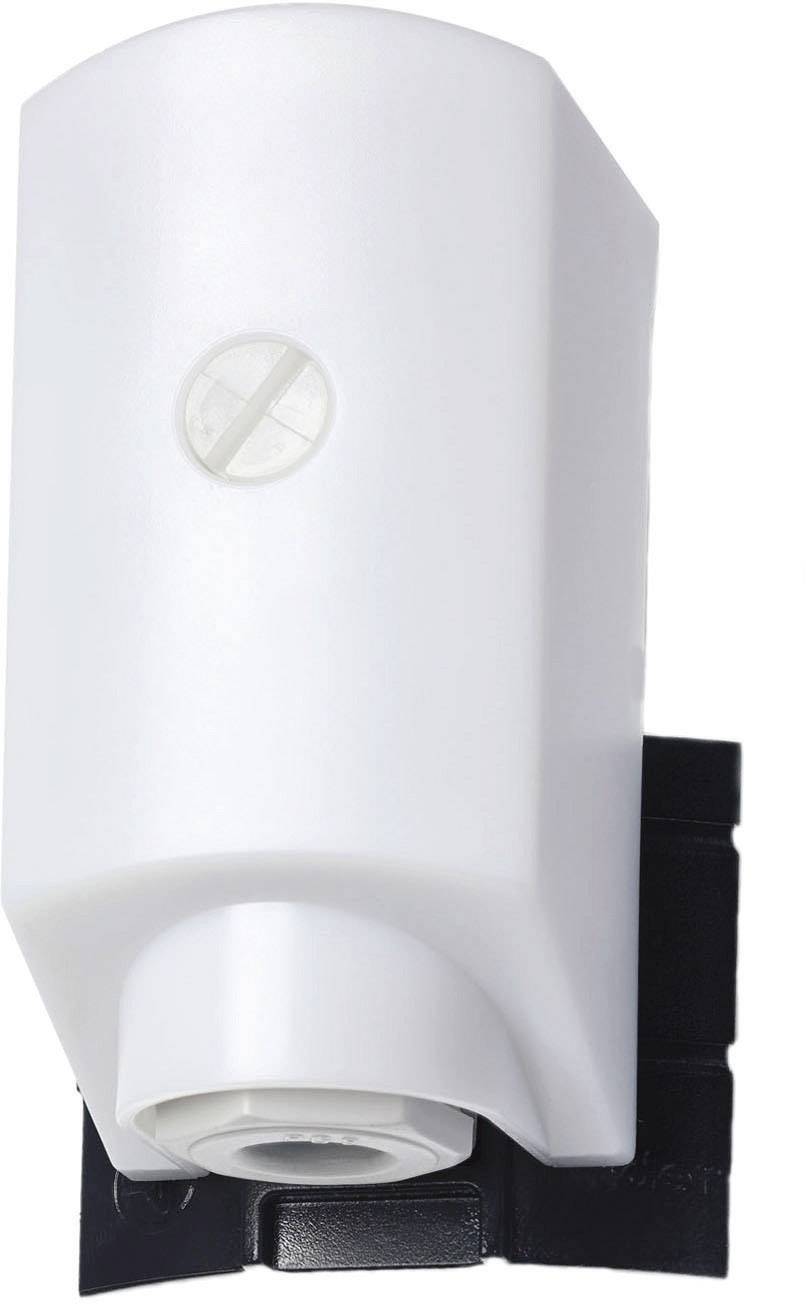

Twilight switch, compact design, series 10.51.8.230

Technical specifications

Switch-on current (reference):< 5 ms

Type: 10.51.8.230.0000

Operating voltage: 230 V AC

Switch-on current: 80 A

Contact type: 1 maker

Contact material: AgSnO2

Switching voltage (max.): 230 V AC

Switching current (max.): 12 A

Max. switching capacity: 2800 VA

Light sensitivity (min.): 1 lx

Light sensitivity (max.): 80 lx

Light sensitivity: 1 - 80 lx

: IP54

Min. temperature: -30 °C

Max. temperature: +70 °C

Content: 1 pc(s)

Factory colour: White

Sensitivity: 1 - 80 lx

Switching capacity: AC1: 2800 VA/AC15 (230 V): 600 VA

Switching voltage: 230 V AC

Switching current: (AC1, 230 V/AC) 12 A

Type: 10.51.8.230.0000

Ambient temperature: -30 - +70 °C

Operating voltage: 230 V/50 - 60 Hz

: 230 V

: Surface mounted (plaster)

: White

: 37

: TRUE

: 81 mm

: 36.8 mm

: Untreated

: Thermoplastic

: Plastic

: -30-70 °C

: FALSE

: Glossy

: IP54

: FALSE

: FALSE

: FALSE

: FALSE

Product type: Twilight switch

Documents & Downloads

Datasheet

Datasheet 502720 Finder Twilight switch 1 pc(s) 10.51.8.230.0000 Operating voltage:230 V AC Light sensitivity: 1 - 80 lx 1 maker

User & Safety Instructions

User & Safety Instructions 502720 Finder Twilight switch 1 pc(s) 10.51.8.230.0000 Operating voltage:230 V AC Light sensitivity: 1 - 80 lx 1 maker

Description

Switch and sensor integrated in one housing. Mounting on the wall or on lighting pole. Switching threshold can be adjusted between 1 - 80 lx.

Hints

Approvals: CE, GOST.
