Fischer Elektronik 10046212
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 1.60
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 1.93 / piece)
€
Highlights & Details

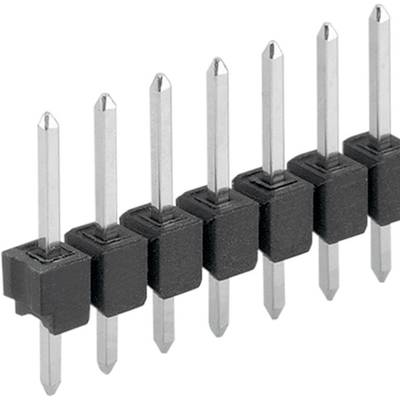

Fischer Elektronik 10046212
- Content 1 pc(s)
- No. of rows 1
- Pins per row 36
Technical specifications
- Connector type
Pin strip, straight
- No. of rows
1
- Pins per row
36
- Total number of pins
36
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
250 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Tin plated
- Contact material
Copper alloy
- Case material
PA 4.6, GF
- Pin length (receptacle)
5.80 mm
- Pin length (PCB)
2.60 mm
- Separable
No
- Dim
(L x W x H) 91.44 x 11.2 x 2.5 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
10046212
- Content
1 pc(s)
- Height
2.5 mm
- Length
91.44 mm
- Width
11.2 mm
- Dimensions
A x B x C 11.2 x 2.6 x 5.8 mm
- Industrial packaging
No
- Type
SL 1 025 36 Z
- RoHS-compliant
Yes
- Max. temperature
+163 °C
- Min. temperature
-40 °C
- Product type
Pin strip (standard)
Documents & Downloads
Datasheet
Datasheet 736500 Fischer Elektronik 10046212
User & Safety Instructions
User & Safety Instructions 736500 Fischer Elektronik 10046212
