Buy FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

Thermal imaging camera shows temperature differences in a pipe system. At the top, hot areas are at 37.7°C, with cooler areas at 18.3°C at the bottom.

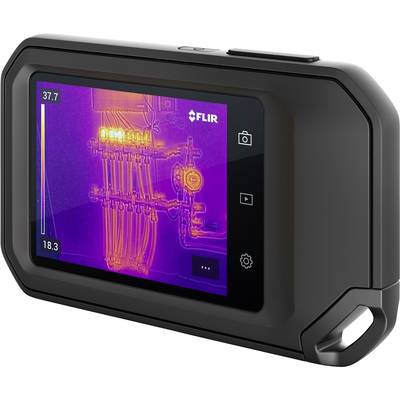

A handheld thermal imaging device shows a thermal image of pipes. Temperature reading '37.7' in the top left, '18.3' at the bottom.

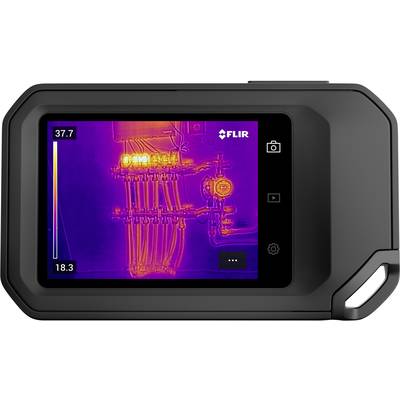

A thermal imaging camera shows heating pipes with different temperatures. Top left 37.7°C, bottom 18.3°C.

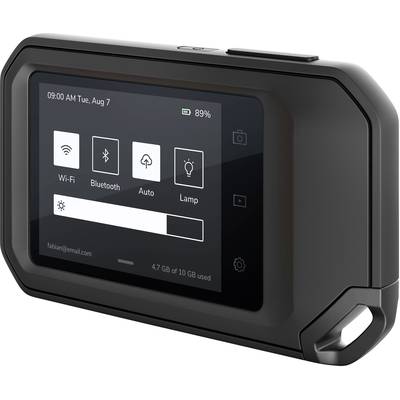

A portable electronic device with a screen shows connection options such as Wi-Fi, Bluetooth, and a battery charge of 89%.

Portable FLIR C5 thermal imaging camera, rectangular, black, displays low and high temperatures with built-in LED and display.

A black thermal imaging camera with 'FLIR' labelling and a green-marked lens. Model C5 is visible to the right of the lens.

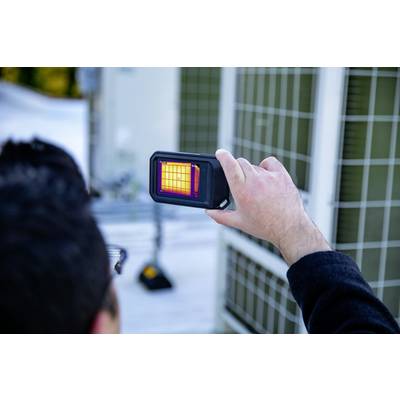

A person is holding a device that displays the thermal radiation of an object. The screen shows a thermal image in various colour tones.

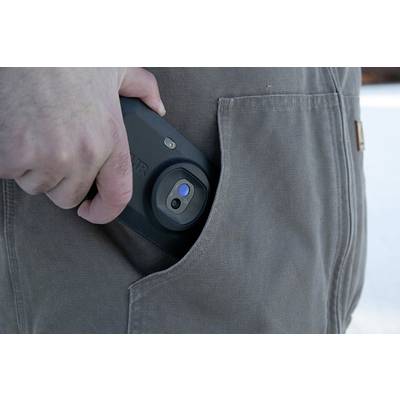

A person is putting a mobile phone into a jacket pocket. The mobile phone has a highlighted blue button and a black case.

A person is holding a portable electronic device with a display showing a user interface with icons. In the background, a blurred outdoor area is visible.

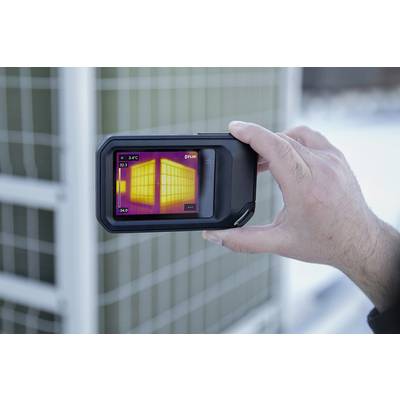

A hand is holding a thermal imaging camera pointed at an air cooler. The display shows a heat distribution with clear temperature variations.

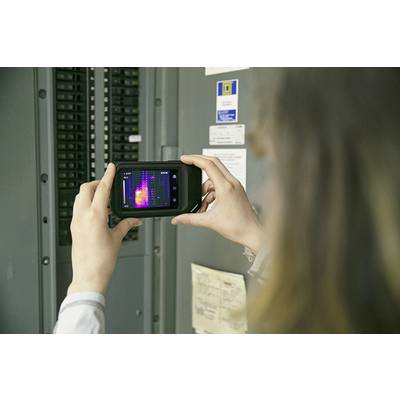

A person is holding a thermal imaging camera in front of an electrical cabinet to detect temperature differences. The display shows colourful thermography.

1/12

Datasheet (PDF)

109 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 634.45 / piece)

€

Report legal concerns

Highlights & Details

Flir C5 thermography camera

8.7 Hz Thermal imaging camera
Temperature reading range -20 up to +400 °C
Bolometer matrix
Thermal sensitivity 70 mK

Technical specifications

Optics: 54° x 42°

Dim: (L x W x H) 138 x 84 x 24 mm

Height: 24 mm

Length: 138 mm

Width: 84 mm

Display resolution: 160 x 120 Pixel

Temperature reading range: -20 up to +400 °C

Connection: USB
Bluetooth

: IP54

: Manufacturer's standards (no certificate)

Focus: Fixed-focus

Features: MSX®
Built-in LED light
Built-in digital camera
Wi-Fi

Type: C5 (Wi-Fi)

Accuracy ± °C: 3 °C

Temperature reading range (max.): +400 °C

Temperature reading range (min.): -20 °C

Colour schemes: 6

Frame rate: 8.7 Hz

Min. focusing distance: 0.3 m

Thermal sensitivity: 70 mK

Weight: 190 g

: 0.19 kg/m

: -10-50 °C

: IP54

Product type: IR camera

Documents & Downloads

Datasheet

Datasheet 2258834 FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

User & Safety Instructions

User & Safety Instructions 2258834 FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

Information

Test Summary Report 2258834 FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

Security datasheet

Security datasheet 2258834 FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

Description

The compact infrared camera FLIR C5 is your indispensable tool for building inspections, plant maintenance, HVAC/R, electrical repairs and other troubleshooting applications. The powerful FLIR C5 is equipped with a thermal imager, a visual inspection camera and an LED torch and makes it easier to detect hidden problems. Integrated FLIR Ignite™ Cloud connectivity enables direct data transfer, storage and backup, so images are always available on all your devices. The integrated 3.5-inch (8.89cm) touchscreen is easy to use, so you can quickly inspect, document repairs, and share evidence with customers. With FLIR C5 in the bag you are always ready to find hot fuses, air leaks, plumbing problems and much more.
