Highlights & Details

Infrared camera FLIR TG165-X MSX

8.7 Hz Thermal imaging camera
Temperature reading range -25 up to +300 °C
80 x 60 Pixel Bolometer matrix
Thermal sensitivity 70 mK

Technical specifications

Optics: 51° x 66°

Dim: (L x W x H) 210 x 64 x 81 mm

Height: 81 mm

Length: 210 mm

Width: 64 mm

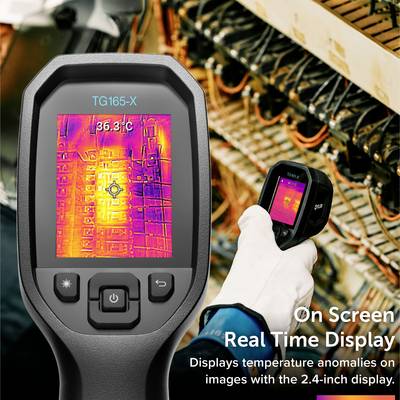

Display resolution: 320 x 240 Pixel

Emission level (max.): 0.99

Emission level (min.): 0.1

Temperature reading range: -25 up to +300 °C

Connection: USB

: IP54

Bolometer array: 80 x 60 Pixel

Focus: Fixed-focus

Features: MSX®
Built-in LED light
Built-in digital camera

Type: TG165-X MSX

Accuracy ± °C: 1.5 °C

Temperature reading range (max.): +300 °C

Temperature reading range (min.): -25 °C

Colour schemes: 6

Frame rate: 8.7 Hz

Min. focusing distance: 0.3 m

Power supply (details): 3.7 V lithium battery

Thermal sensitivity: 70 mK

Weight: 394 g

Product type: IR camera

Documents & Downloads

Datasheet

Datasheet 2269208 FLIR TG165-X MSX IR camera -25 up to +300 °C 80 x 60 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

User & Safety Instructions

User & Safety Instructions 2269208 FLIR TG165-X MSX IR camera -25 up to +300 °C 80 x 60 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

Conformity certificate

Conformity certificate 2269208 FLIR TG165-X MSX IR camera -25 up to +300 °C 80 x 60 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

Security datasheet

Security datasheet 2269208 FLIR TG165-X MSX IR camera -25 up to +300 °C 80 x 60 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

Description

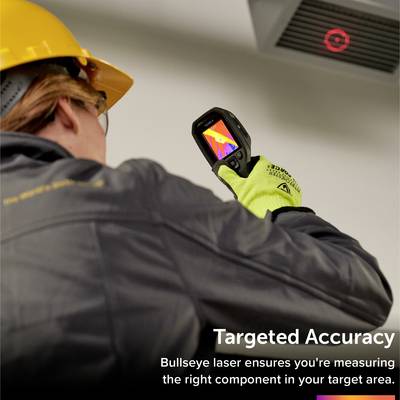

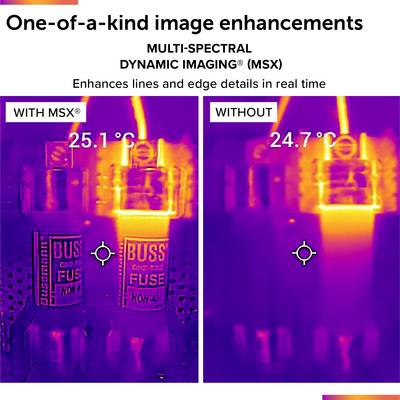

FLIR TG165-X significantly reduces inspection and diagnostic time by helping you visually locate the source of electrical, mechanical, and HVAC/R system failures. Instead of searching for temperature anomalies with a single-point IR thermometer, this non-contact temperature measurement and imaging tool displays a thermal image of your target, including any hot spots or cold zones that may indicate a problem. FLIR's patented MSX image enhancement adds visual detail to the full thermal images, allowing you to clearly identify wires or components and even read labels. With the Bulleye laser, you can make sure that you always target the right component for measurement, while the design with easy-to-use buttons and settings helps you to do the work quickly and stress-free. With internal memory for up to 50,000 images. Thanks to the Li-ion battery, the FLIR TG165-X is ready to use immediately after unpacking.
