Fluke 88V/A Handheld multimeter Digital Vehicle testing CAT III 1000 V, CAT IV 600 V Display (counts): 19999
EAN:
Part number:
Item no:
2 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 1,088.24 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Kfz-Multimeter Fluke 88V/A
- CAT III 1000 V, CAT IV 600 V
- Konduktanzmessung for examination of the ignition coils
- Built-in thermometer
Technical specifications
- Measuring range conductance: 0.01 - 60 nS
- Measuring range duty factor: 0,001 - 0,999
- Measuring range pulse duration: 0.1 ms-2s
- Measuring range speed: 1 - 12000
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.01 Ω - 50 MΩ
- Reading range - capacity
0.01 nF - 10000 µF
- Frequency reading range
0.01 Hz - 200 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.1 %
- Measurement type (details)
True RMS
- Frequency range
5 kHz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
186 mm
- Width
86 mm
- Length
32 mm
- Weight
625 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
88V/A
- Display
Digital
- Display (counts)
19999
- Dim
(L x W x H) 32 x 86 x 186 mm
- Temperature reading range (max.)
+1090 °C
- Temperature reading range (min.)
-200 °C
- Features
Vehicle testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1372898 Fluke 88V/A Handheld multimeter Digital Vehicle testing CAT III 1000 V, CAT IV 600 V Display (counts): 19999
Description
Our cars are today with numerous electrical systems. And if vehicles with hybrid drive on the market, the number of these systems increase further. For this reason, the multimeter perhaps the most important instrument for troubleshooting. The Fluke 88V offers improved measurement functions, special search functions and high accuracy, both in conventional as well as for the new hybrid vehicles even more problems can be resolved.
This text is machine translated.
This text is machine translated.
Features
- 0.1% DC accuracy
- , 20,000 counts high resolution mode (4-1/2 digits) For precise measurements
- Measurement of direct and alternating voltages up to 1000 V
- Measurement of currents up to 10 A and of up to 20 A for a duration of up to 30 seconds Thanks to the integrated thermometer function you can save a separate instrument (
- temperature measuring sensor included in the delivery)
- Diode test for testing alternators
- Frequency up to 200 kHz and % duty cycle
- Resistance, continuity
- Speed measurement with inductive sensor (included)
- Millisecond pulse width measurement for injectors
- Magnetic hanger for attaching the multimeter to the vehicle, So that you have your hands free for other work
- Min/Max/average recording with Min/Max-Alert for automatic recording of deviations
- Peak value recording for recording of short-term transients up to 250 µs
- Relative value mode for deducting the measuring lead resistance in low-impedance measurements
- Automatic and manual range selection for maximum flexibility
- AutoHOLD for recording stable measured values, In order to avoid noisy signals
- , large display digits and two-stage bright background lighting for improved readability
- Analogueue segment display for tracking of changing or unstable signals
- "Input Alert" gives an acoustic signal when incorrectly connected to the input sockets
- improved snooze mode reduces the power consumption and protects the battery
- separately accessible battery compartment for fast Battery change without opening the housing
- "Classic" design with new removable holster including integrated holder for test leads and measuring tips
- Thanks to an input impedance of 10 megohm, the circuits are not loaded; the multimeter can also be used safely for computers.

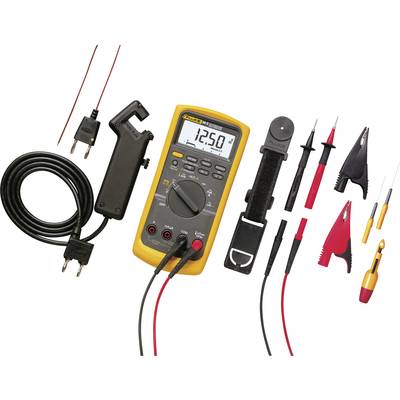

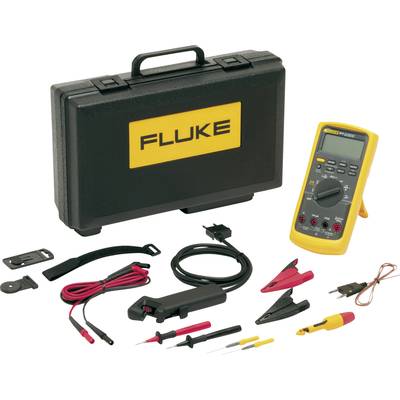

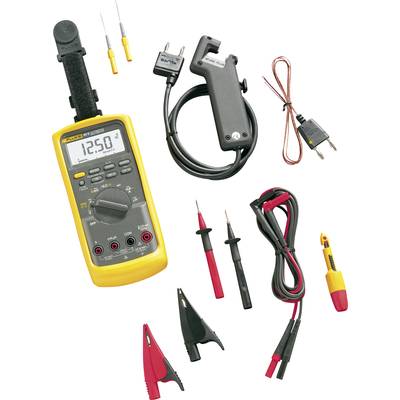

Scope of delivery
- H80M holster with TPAK attachment set TL 224 SureGrip™ silicone test leads set TP220 SureGrip™ probe tips set SureGrip™ AC285 set of large alligator clips
- 80BK integrated temperature probe
- EA-100 speed sensor
- two car backprobe pins
- Insulations vials
- C800 hard shell case
- User manual and quick start guide.
