Fluke Calibration 9102S-256 Calibrator Temperature
EAN:
Part number:
Item no:
Highlights & Details

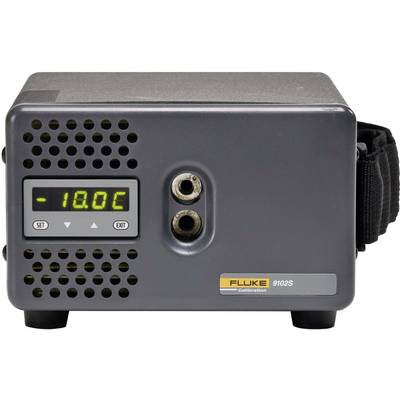

Fluke Calibration 9102S-256 Calibrator Temperature
- For work in the temperature range of –10°C to 122°C, our Model 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
Technical specifications
- Heat-up time: ambient temperature to 100 °C in 10 minutes
- Cooling time: ambient temperature of 0°C in 10 minutes
- Stabilization: 7 minutes
- Stability: ±0.05 °C
- Calibration range (thermometer)
-10°C to +122 °C
- Temperature accuarcy (details)
0.25 °C
- Dim
(L x W x H) 99 x 140 x 175 mm
- Weight
1.8 kg
- Height
175 mm
- Length
99 mm
- Width
140 mm
Manufacturer's standards (with certificate)
- Unit of measurement
Temperature
- Product type
Calibrator
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1761796 Fluke Calibration 9102S-256 Calibrator Temperature
Description
World’s smallest, lightest and most portable dry-wells
Features
- Smallest dry-wells in the world, Ranges from –10°C to 375°C, Accuracy to ±0.25°C, stability of ±0.05°C at 0°C, RS-232 interface
Scope of delivery
- 9102 S Dry-Well
- Power cord
- User Manual with calibration expression
- RS-232 cable
- 9930 Interface-it software
- 3102-3 slot, 3/16"
- 3102-4 slot, 1/4"
- Removal tool for the slot
Hints
The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.
