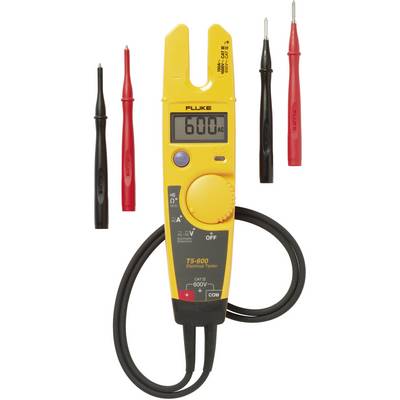

Fluke T5-600 Two-pole voltage tester CAT III 600 V LCD, Acoustic
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 247.90 / piece)
€
Highlights & Details
FLUKE Tester T5-600 for voltage, continuity and current
- Measures up to 100 A
- VDE-approved
- Current and resistance measurement
Technical specifications
- Working temperature: -10 to +55 °C
- Power supply: 2 x 1.5 V/DC
IP52
- Dim
(L x W x H) 31 x 51 x 203 mm
- Weight
300 g
- Height
203 mm
- Length
31 mm
- Width
51 mm
- Max. frequency
66 Hz
- Frequency range
45 Hz - 66 Hz
- V AC reading range
1 up to 600 V
- V DC reading range
1 up to 600 V
Manufacturer's standards (no certificate)
- Display
LCD
Acoustic
- Reading category
CAT III 600 V
- Reading type
Continuity
Phase
Resistance
- Type
T5-600
- Min. frequency
45 Hz
- V AC reading range (max.)
600 V
- V AC reading range (min.)
1 V
- Voltage DC reading range (max.)
600 V
- Voltage reading range DC (min.)
1 V
- Display (details)
LCD (4000 counts)
- Power supply (details)
2 x 1.5 mm V DC
- Product type
Two-pole voltage tester
Documents & Downloads
Datasheet
Datasheet 124575 Fluke T5-600 Two-pole voltage tester CAT III 600 V LCD, Acoustic
User & Safety Instructions
User & Safety Instructions 124575 Fluke T5-600 Two-pole voltage tester CAT III 600 V LCD, Acoustic
Description
Tester for voltage, continuity and current. The fixed fork allows the testing of currents without breaking the circuit. The test leads can be stored on the back side, saving space. Available in two versions for 600 V and 1000 V.
Features
- Contact-free measurement up to 100 A
- Automatic measurement of DC and AC voltages
- Resistance measurement up to 1 kΩ
- Acoustic continuity test
- Auto power-off to save battery life.
Scope of delivery
- 2 Batteries (type AA)
- 1 set of test leads
- User manual.
