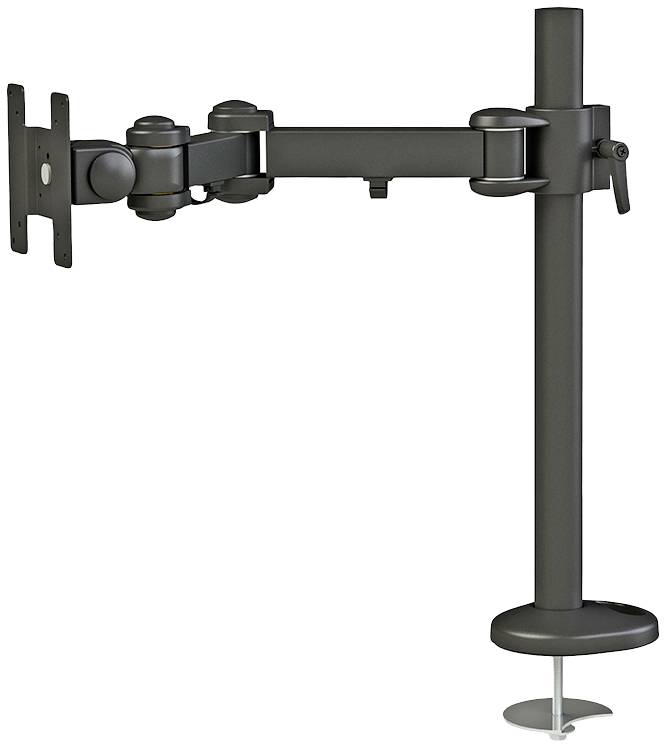

A black monitor arm with multiple joints and a desk clamp for flexible positioning of a display screen.

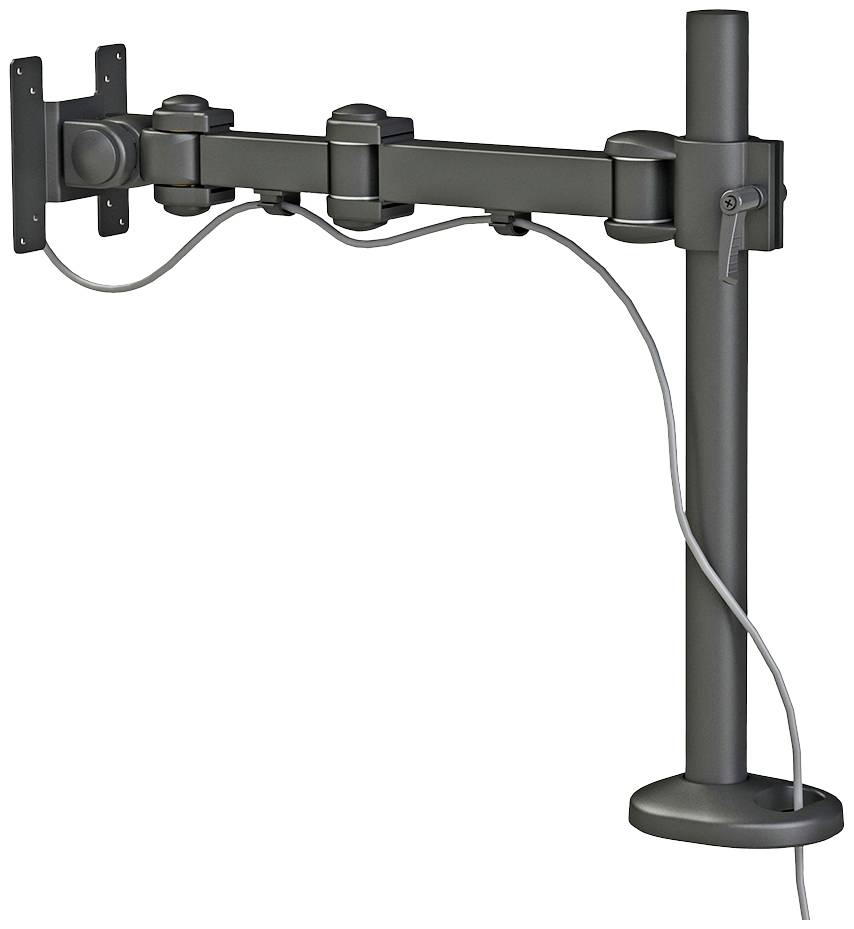

An adjustable monitor arm with two joints and cable management. It is mounted on a vertical post and used for attaching a computer screen.

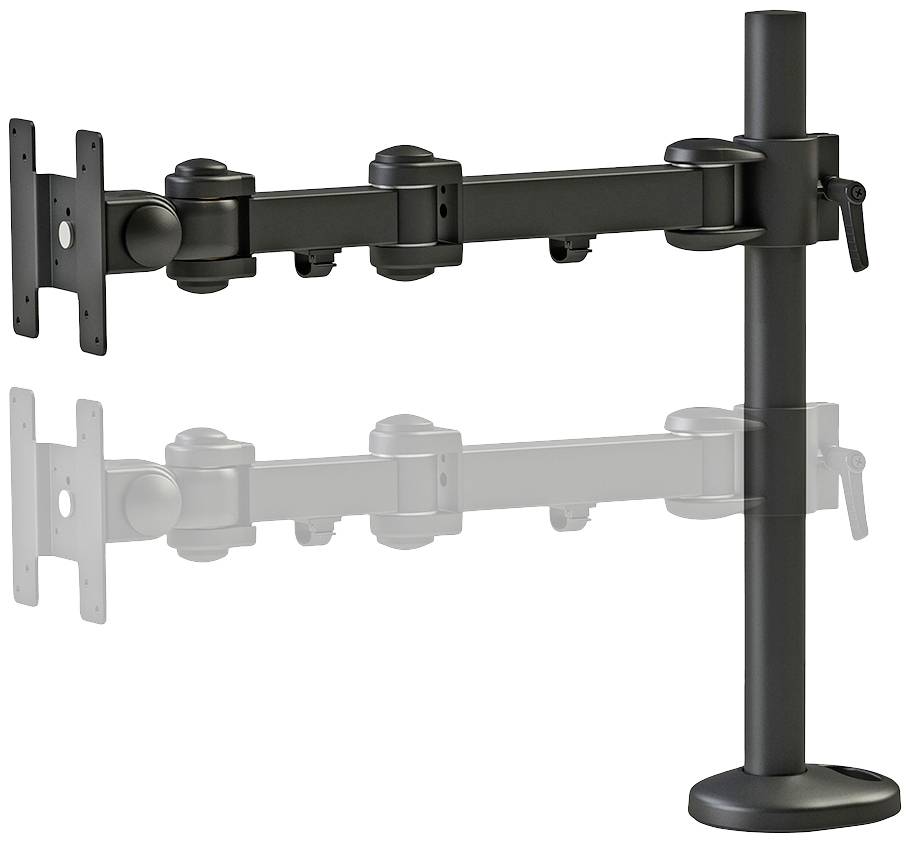

A height-adjustable monitor arm in black, mounted on a stand with two horizontal arms that can flexibly change positions.

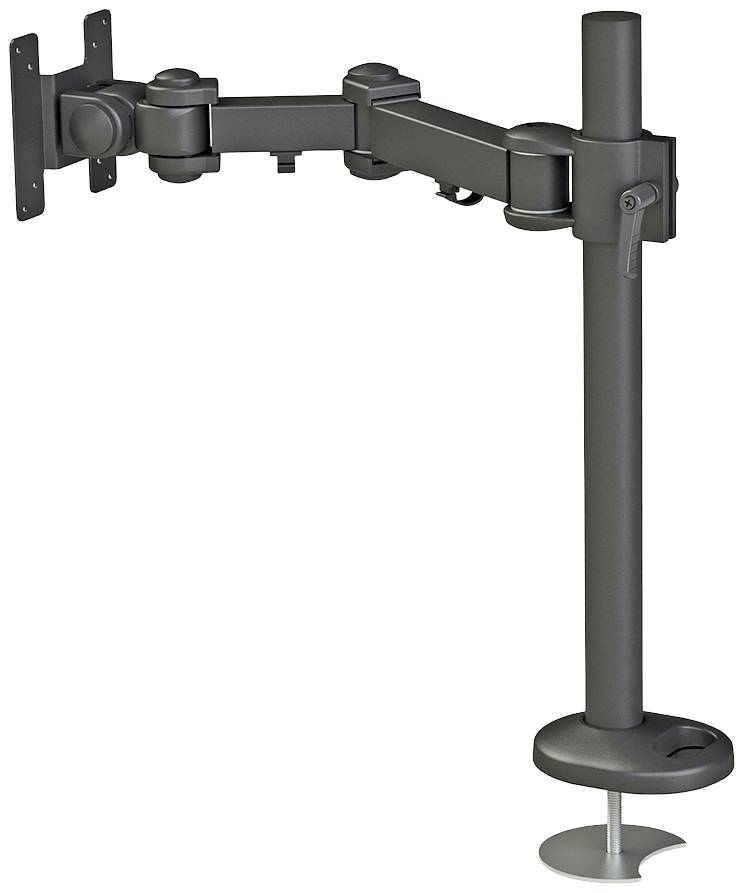

Flexible metal monitor arm, mounted on a desk. Adjustable in height and angle, for ergonomic positioning of a monitor.

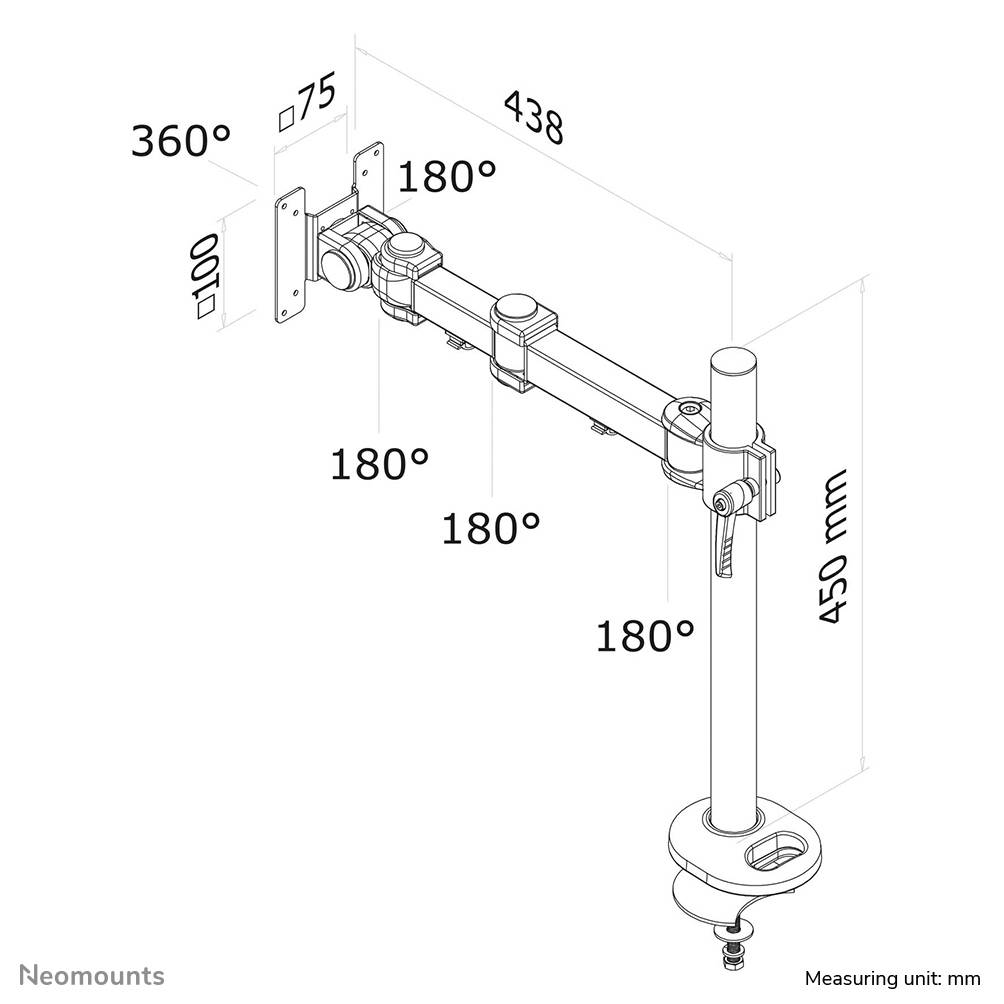

Assembly Instructions for a Monitor Arm. Details of joints with rotation angles of 180° and 360°, measurements in mm.

1/6

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 73.94 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

FPMA-D960G

Holder type: Height-adjustable, Tiltable, Swivelling, Swivelling, RetractableSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 76,2 cm (30")Load capacity (max.) 12 kg

Technical specifications

Colour of product: Black
Height adjustment: Y
Height adjustment range: 0 - 450 mm
Tilt angle: 0 - 180°
Swivel angle: 180°
Rotation: 360°
VESA mounting interfaces compatibility: 75 x 75, 100 x 100 mm
Maximum weight (capacity): 12 kg
Number of displays supported: 1
Minimum screen size compatibility: "25.4 cm (10"")"
Maximum screen size compatibility: "66.04 cm (26"")"

Product type: Monitor desk mount

Suitable for: 25,4 cm (10") - 76,2 cm (30")

Add-on displays: 1 Display(s)

Holder type: Height-adjustable
Tiltable
Swivelling
Swivelling
Retractable

: No

Max. load capacity: 12 kg

: No

: 100 x 100 mm
75 x 75 mm

Rotation: 360°

Max. table thickness: 45 mm

Tilt range (bottom): -90°

Tilt range (top): +90°

Min. distance to floor/ceiling: 0 cm

Max. distance to floor/ceiling: 45 cm

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 10 cm

Distance to wall (max.): 43 cm

Width: 13 cm

Height: 59 cm

Depth: 16 cm

Factory colour: Black

Weight: 4.6 kg

Dim: (W x H x D) 13 x 59 x 16 cm

Suitable for: 25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
Show more

Product type description: Zubehör TFT/LCD-TV

Documents & Downloads

Datasheet

Datasheet 1300741 FPMA-D960G

User & Safety Instructions

User & Safety Instructions 1300741 FPMA-D960G

Warranty Terms

Warranty Terms 1300741 FPMA-D960G

Description

The NewStar desk mount, model FPMA-D960G is a tilt-, swivel and rotatable desk mount for flat screens up to 26”. This mount is a great choice for space saving placement on desks using a grommet mount. NewStars’ unique tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar FPMA-D960G has three pivot points and is suitable for screens up to 26" (65 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
