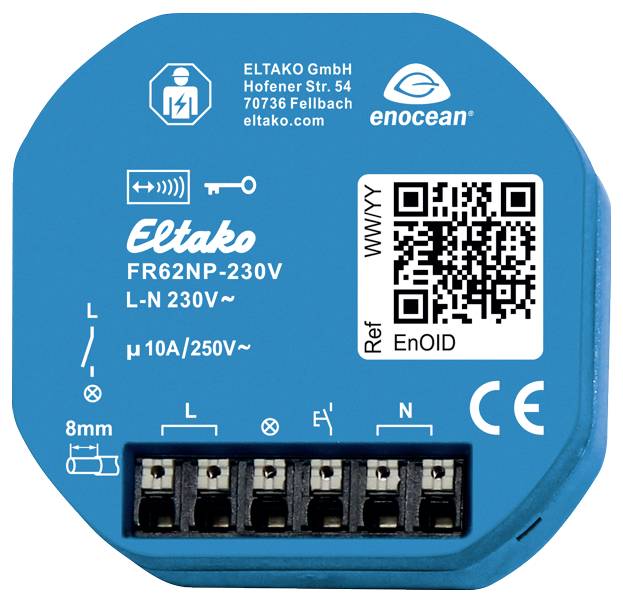

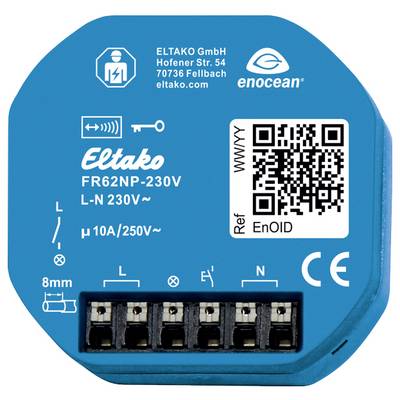

FR62NP-230V Eltako Wireless Actuator Flush mount

Wireless relay actuator 10A/250V AC 1 NO contact or NC contact, not potential-free. Standby loss of only 0.4 watt. For panel mounting. 49x51mm, 20mm deep. The connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 2.5mm2. With the comfortable tip technology up to 32 radio buttons and wireless window contacts can be taught in. Bi-directional radio can be activated. Contact switching in the zero crossing. Supply, switching and control voltage locally 230V. If the supply voltage fails, the switch position is maintained. A defined cut-off is performed when the supply voltage is restored. After installation, wait for the automatic short synchronization before connecting the switched load to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button that may be installed before. A glow lamp current is not permitted. The contact function can be set to NO or NC when not in use. If the contact closes with at least one open window, it can result in cooker hoods or similar. Optional or Alarm can be given. If the contact opens at least one open window, heating or air conditioning can be switched off with it. Several wireless window contacts are linked together, the last learned wireless window contact determines the function.

This text is machine translated.
