A silver blind rivet with a long, ribbed shaft and a wide head, used for joining materials without threading.

A silver blind rivet with a long, ribbed shaft and a wide head, used for joining materials without threading.

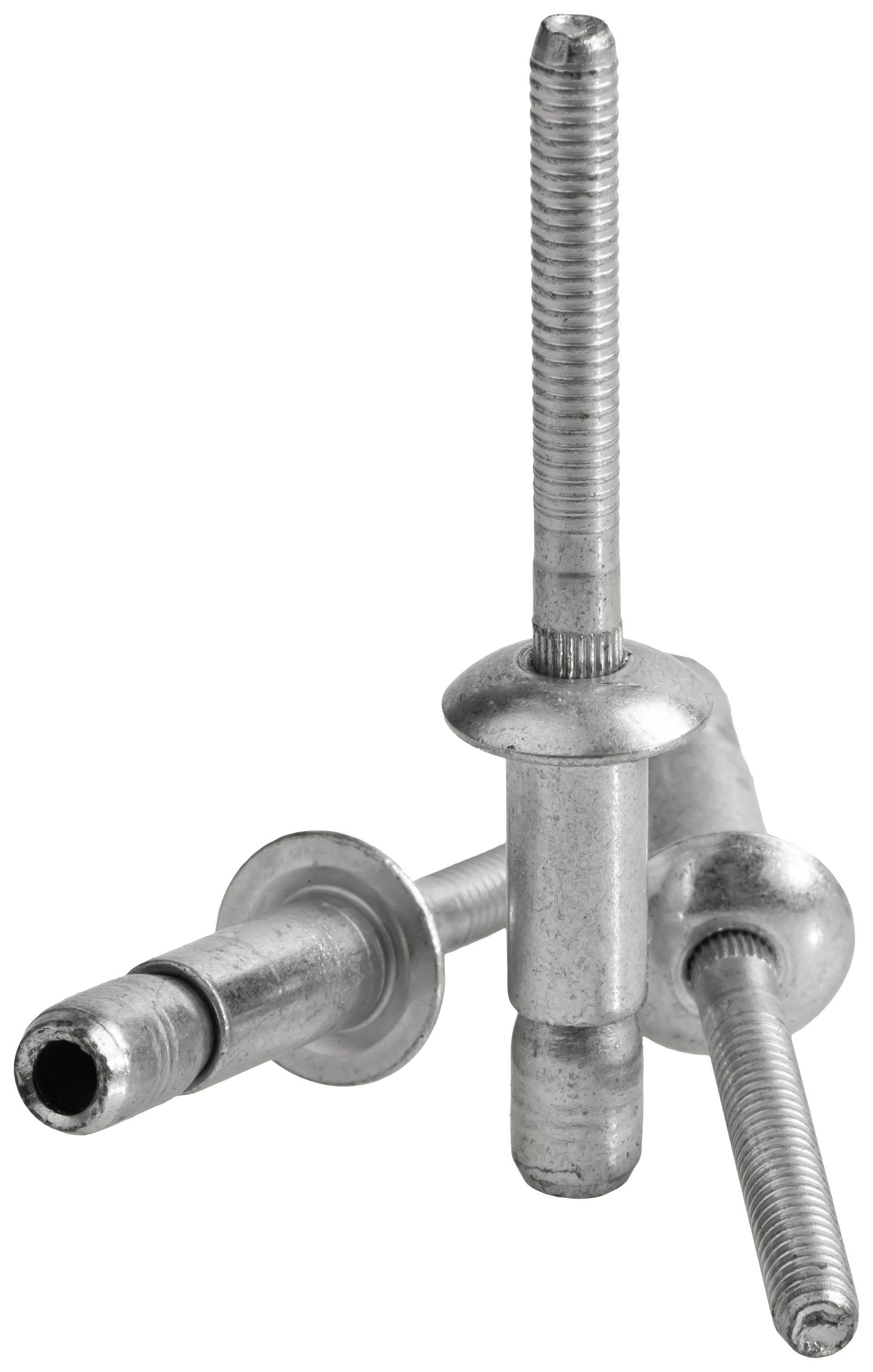

Three metallic rivets standing upright, showing different perspectives. They are cylindrical and have ribbed shanks.

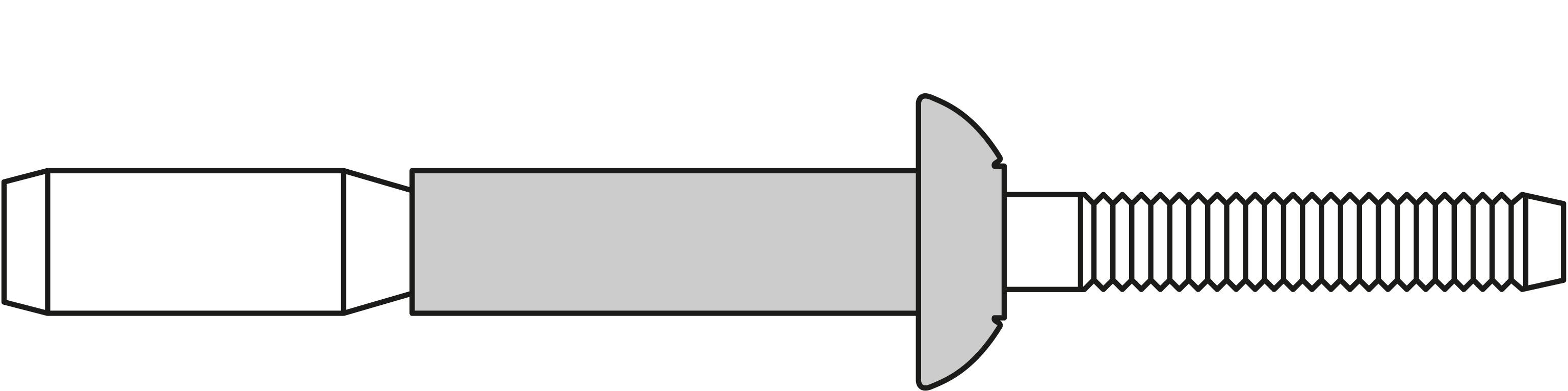

A technical diagram illustrates a blind rivet with a threaded screw and expandable cylinder, used for secure fastenings.

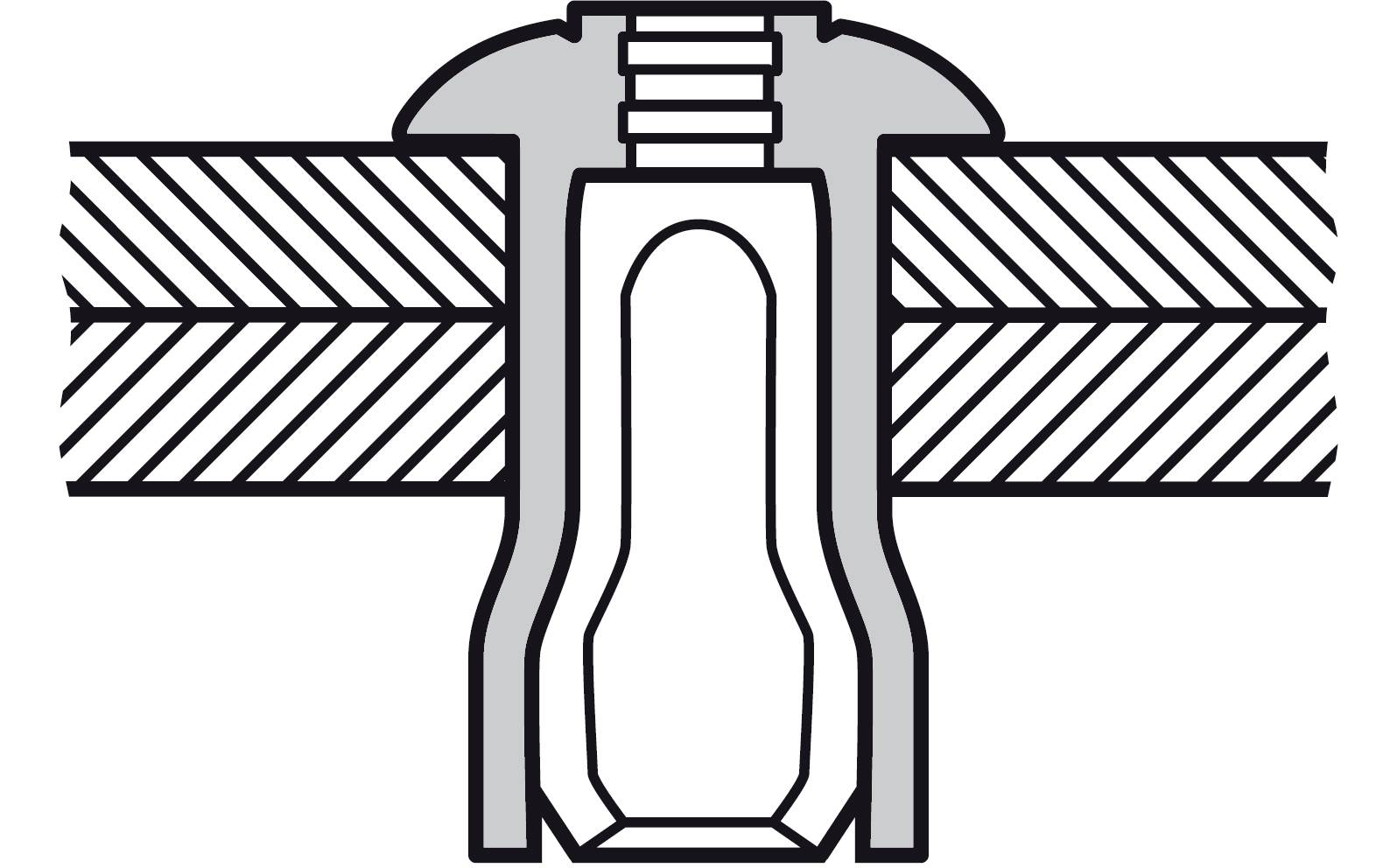

Schematic representation of a cross-section of a riveted joint connecting two layers. Main components are visible.

1/4

Product type

Blind rivet

Material (spike)

Aluminium

Material (sleeve)

Aluminium

Max. clamping range

11.1 mm

Min. clamping range

1.6 mm

Gesipa

Sales and shipping:

Number (Package size 250 pc(s))

Set(s)

Total (€ 0.29 / piece)

€

Report legal concerns

Technical specifications

Product type: Blind rivet

Content: 250 pc(s)

Material (spike): Aluminium

Material (sleeve): Aluminium

Max. clamping range: 11.1 mm

Min. clamping range: 1.6 mm

Tubular rivet diameter: 4.8 mm

Tubular rivet length: 14 mm

Clamping range: 1.6 - 11.1 mm

Head Ø: 9.5

Head height: 2.2 mm

Rivet mandrel diameter: 2.95 mm

Shear force: 3280 N

Head shape: Truss head

Tensile force (max.): 2350 N
