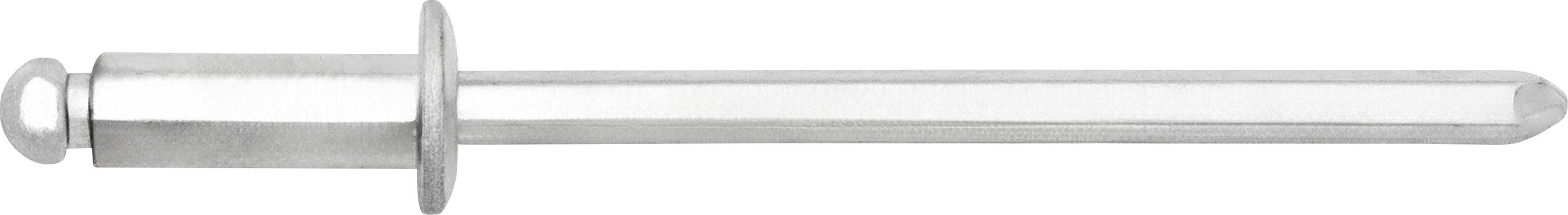

Gesipa 1538388 Blind rivet Steel (galvanized) Steel (galvanized) 500 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Steel (galvanized)
Material (sleeve)
Steel (galvanized)
Max. clamping range
7.50 mm
Min. clamping range
4.50 mm
Datasheet (PDF)
Sales and shipping:
Number (Package size 500 pc(s))
Total (€ 0.08 / piece)
€
Highlights & Details
Steel/steel flat-round tip 3.2 x 12 mm
- Solderable
- All relevant versions for Spengler/Installers available in 3.2mm
- Stock items by local specialist trade
- Stainless steel rivet can be welded with TIG welding procedure
- Can be used with every GESIPA® rivet unit
- Small packaging unit
Technical specifications
- Product type
Blind rivet
- Content
500 pc(s)
- Material (spike)
Steel (galvanized)
- Material (sleeve)
Steel (galvanized)
- Max. clamping range
7.50 mm
- Min. clamping range
4.50 mm
- Tubular rivet diameter
3.20 mm
- Tubular rivet length
12.00 mm
- Clamping range
4.50 - 7.50 mm
- Head Ø
6.90
- Hole diameter
3.30 mm
- Rivet mandrel diameter
2.00 mm
- Shear force
1.100 N
- Head shape
Truss head
- Tensile force (max.)
1.250 N
Documents & Downloads
Datasheet
Datasheet 3411703 Gesipa 1538388 Blind rivet Steel (galvanized) Steel (galvanized) 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3411703 Gesipa 1538388 Blind rivet Steel (galvanized) Steel (galvanized) 500 pc(s)
Description
GESIPA Splint rivets
The plumbers' rivet is the ideal solution for the roof trade.
It can be easily soldered and is available in a variety of materials.
Benefits:
- Easily soldered
- All relevant versions for Spengler/Installers available in 3.2 mm
- Stock items from local specialist trade
- Stainless steel rivet weldable with TIG welding process
- Particularly suitable for very thin materials
- Can be used with every GESIPA rivet unit
- Small packaging unit
This text is machine translated.
The plumbers' rivet is the ideal solution for the roof trade.
It can be easily soldered and is available in a variety of materials.
Benefits:
- Easily soldered
- All relevant versions for Spengler/Installers available in 3.2 mm
- Stock items from local specialist trade
- Stainless steel rivet weldable with TIG welding process
- Particularly suitable for very thin materials
- Can be used with every GESIPA rivet unit
- Small packaging unit
This text is machine translated.
