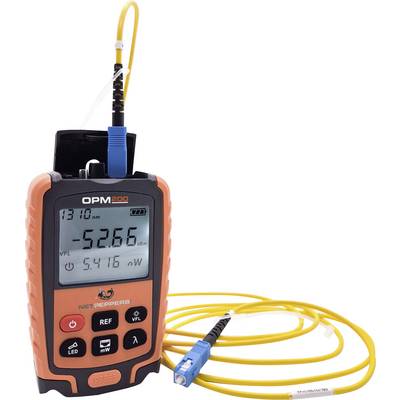

An orange and black optical power metre displays '-52.66' dBm on the display. Yellow fibre optic connection at the top.

An optical power measurement device with an orange-black casing, digital display, buttons, and connection options; includes accessories.

Two optical measuring devices: On the left, an optical power meter, on the right, a light source. Both are connected by a yellow cable.

An optical power measurement device with a luminous orange cable, digital display, and control buttons.

Orange handle with a black area labelled 'REMOTE', featuring an ergonomic design for easy use.

An orange cable with a remote sensor and illuminating indicators. It displays activity or status through LED lights.

A red laser distance measuring device with an illuminated display shows the distance. The device glows with a small white light.

1/9

Datasheet (PDF)

42 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 126.04 / piece)

€

Report legal concerns

Highlights & Details

NetPeppers pocket Power meter OPM200

Technical specifications

Supported wavelengths: 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 nm
Fiber types supported: Singlemode and multimode fiber
Measuring range: -70 to +6 dBm
Sensor type: InGaAs
Resolution 0.01 dB
Measuring accuracy ± 5%
Signal detection 270 Hz, 1 kHz, 2 kHz
Stores 60 rooms (ring memory)
Power supply: Li-ion battery 700 mAh, charging via USB-C port
Auto-Off 10 min.
Torch: White LED
Integrated visible laser light source (VFL)
Mode: Continuous and flashing (slow/fast)
Wavelength 650 nm ± 20 nm
Output power < 1 mW (laser class 2)
2.5 mm universal socket (ST/FC/SC/E2000) 1.25 mm (LC) via adapter cable
RJ45 copper cable test: Twisted-pair cable test Check for continuity, short circuit, interchange by 8 LEDs
Operating temperature: -20 to + +70°C

Product type: Glass fibre tester

Function: Continuity

Max. cable length: 300 m

Display: LCD

Optical display: Yes

Test sockets: RJ45

Dim: (L x W x H) 115 x 68 x 28 mm

Weight: 135 g

Width: 68 mm

Height: 28 mm

Length: 115 mm

Type: Pocket Power Meter OPM200

Documents & Downloads

Datasheet

Datasheet 3384777 Glass fibre tester NP-FIBER-OPM200 NetPeppers Pocket Power Meter OPM200

User & Safety Instructions

User & Safety Instructions 3384777 Glass fibre tester NP-FIBER-OPM200 NetPeppers Pocket Power Meter OPM200

Description

The OPM200 is the ideal companion for the fiber optic cable installer or the IT administrator who wants to test fiber optic cable systems for their output level. Attenuation tests can be performed on passive fiber optic cabling together with a light source such as OLS light sources. Furthermore, fiber breaks or defective connectors can be checked effectively using the integrated, visible laser light source. The small multi-talent also possesses an integrated RJ45 cable test function for a quick check of e.g. a RJ45 patch or installation cable for an interruption, short-circuit and interchanging of the wires. Working in dark environments is child's play thanks to the LCD backlight and an integrated torch.

This text is machine translated.

Features

Fibre optic level meter in practical pocket format
Supports wavelengths 850/980/1270/1300/1310/1490/1550/1577/1625 nm
Universal connectivity options for the standard ST/FC/SC connectors
Memory for up to 60 measurements
Integrated visible laser light source (VFL) with blink function
RJ45 cable test function for testing the continuity of twisted-pair cabling
Built-in LED flashlight for illumination of poorly-lit areas at work
Integrated Lithium-Ionen battery for long run time and Charging via USB-C Port
Backlit LCD screen for easy reading of the measurements
Handy and robust design

Scope of delivery

1 OPM200 Optical level meter
1 USB-A on USB-C charging cable
1 Hand strap
1 quick instructions
