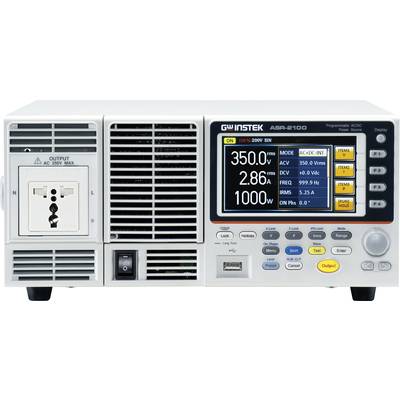

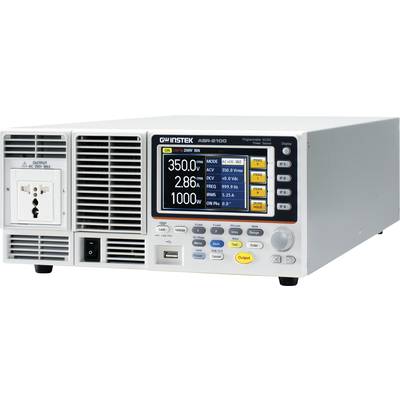

Buy GW Instek ASR-2100 Universal Bench PSU (adjustable voltage) 0.1 - 500 V 10 mA 1000 W No. of outputs 1 x

1/3

Datasheet (PDF)

Sales and shipping:

Piece(s)

Total (€ 3,478.15 / piece)

€

Highlights & Details

Datasheet 2208126 GW Instek ASR-2100 Universal Bench PSU (adjustable voltage) 0.1 - 500 V 10 mA 1000 W No. of outputs 1 x

User & Safety Instructions 2208126 GW Instek ASR-2100 Universal Bench PSU (adjustable voltage) 0.1 - 500 V 10 mA 1000 W No. of outputs 1 x

Information 2208126 GW Instek ASR-2100 Universal Bench PSU (adjustable voltage) 0.1 - 500 V 10 mA 1000 W No. of outputs 1 x

Programmable AC/DC power source
Output power: AC 0 - 350 Vrms, DC 0 - ± 500 V.
Output frequency up to 999.9 Hz
DC output (100% of rated power)
Output power 1000VA
Measuring elements: VRMs, Vavg, Vpeak, Irmen, IpkH, Iavg, Ipeak, P, S, Q, PF, CF.
Voltage and current harmonics analysis (THDv, THDi)
Adjusted phase angle for output
On
Remote sensing function
OVP, OCP, OPP, OTP, AC error detection and fan error alarm

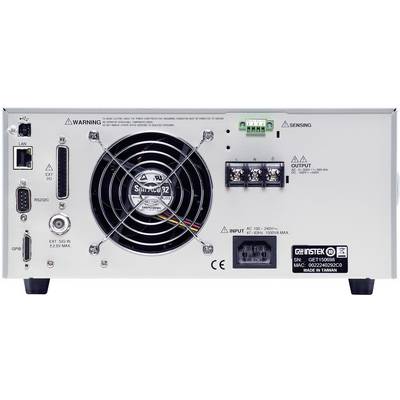

Interface: USB, LAN (standard), RS-232 + GPIB (opt)
Built-in external control inputs and external signal input
Built-in output relay control
Memory function (up to 10 sets)
Sequence and simulation function (up to 10 sets)
Support of arbitrary waveform function
Built-in web server
This text is machine translated.
