GW Instek GPM-8320 Network diagnostics
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 3,881.51 / piece)
€
Technical specifications
- Input resistance 2 MΩ
- VOLTAGE 15V/30V/60V/150V/300V/600V/1000V
- Accuracy 0.06 %
- Power supply (details)
100 - 240 V
- Dim
(L x W x H) 40.25 x 22 x 13.2 cm
- Weight
3.4 kg
- Height
13.2 cm
- Length
40.25 cm
- Width
22 cm
Manufacturer's standards (no certificate)
- Interfaces
RS232C
USB
LAN
GPIB
- Product type
Network diagnostics
Documents & Downloads
Datasheet
Datasheet 2888647 GW Instek GPM-8320 Network diagnostics
User & Safety Instructions
User & Safety Instructions 2888647 GW Instek GPM-8320 Network diagnostics
Description

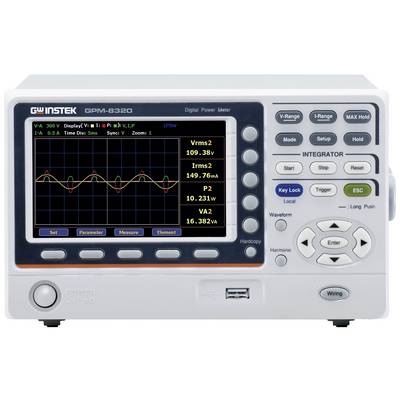

GW Instek GPM-8320 is a digital power meter with RS-232C, USB device and host, LAN and GPIB+DA12 option. The device has a 5 inch TFT LCD screen with a five digit measuring display. In addition, it has the ability to display the waveform (voltage/current/power).
This text is machine translated.
This text is machine translated.
Features
- 5" TFT LCD display
- Voltage and current test Frequency bandwidth: DC, 0.1Hz ~ 100kHz
- Waveform display: V (voltage), I (current), P (Watt power)
- Current and voltage measurement with distorted wave: Full range for CF=3 and half range for CF=6 (or 6A)
- Fulfils IEC 61000-4-7 harmonic measurement (50/60Hz)
- Button for selecting the wiring (1P3W, 3P3W, 3P4W, 3V3A)
- Measurement and analysis of harmonics up to 50 orders
- Automatic measurement function for the integration mode
- Screen recording via USB host
- Provision of an external current sensor input (EXT1/EXT2)
