Buy GW Instek GPP-3323 Bench PSU (adjustable voltage) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 3 x

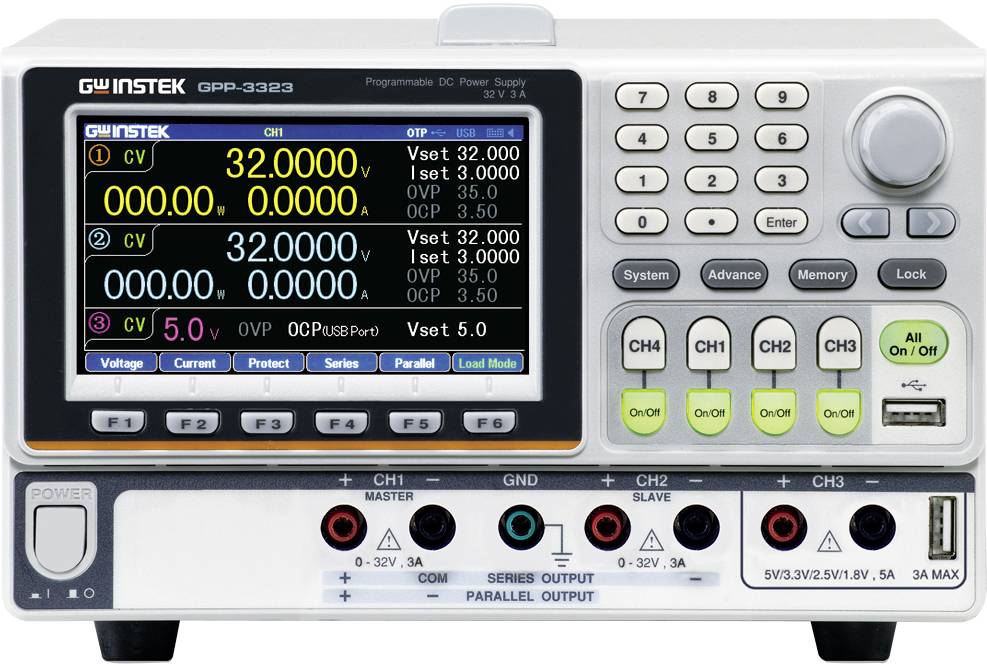

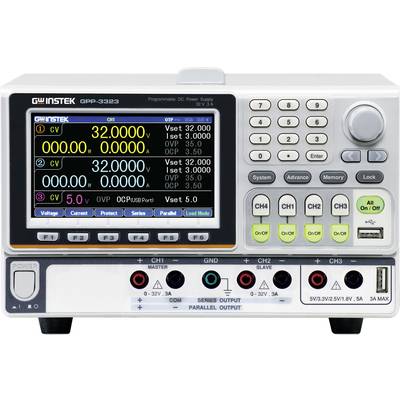

Programmable DC power supply with multiple displays; showing voltage (32 V) and current (0 A) on channel 1; control buttons visible.

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 693.28 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

GW Instek lab power supply GPP-Series

No. of outputs 3 x
0 - 32 V / 0 - 3 A
0 - 32 V / 0 - 3 A
1.8 - 5 V / 5 A (max.)
RS232, USB
programmable

Technical specifications

Type: GPP-3323

Product type: Bench PSU (adjustable voltage)

No. of outputs: 3 x

Technology: Linear regulated PSU

Interfaces: RS232
USB

Features: programmable

Dim: (L x W x H) 312 x 213 x 145 mm

: Manufacturer's standards (no certificate)

Weight: 7500 g

Output voltage (max.): 32 V

Output voltage (min.): 0 V

Output voltage 2 (max.): 32 V

Output voltage 2 (min.): 0 V

Output voltage 3 (max.): 5 V

Output voltage 3 (min.): 1.8 V

Max. output current: 3 A

Output current (min.): 0 A

Output current 2 (max.): 3 A

Output current 2 (min.): 0 A

Output current 3 (max.): 5 A

Width: 213 mm

Height: 145 mm

Length: 312 mm

Residual ripple: Under 350 µVrms

Max. temperature: 40 °C

Min. temperature: 0 °C

Variants(All information is without VAT, plus shipping costs)

Calibrated to

Output voltage

No. of outputs

Output voltage 3 (range)

Output current

GW Instek GPP-3323 Bench PSU (adjustable voltage) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 3 x

Item no:2111058

This article

Manufacturer's standards (no certificate)

0 - 32 V

3 x

1.8 - 5 V

0 - 3 A

GW Instek GPP-1326 Bench PSU (adjustable voltage) 0 - 32 V 0 - 6 A RS232, USB programmable No. of outputs 1 x

Item no:2111144

Manufacturer's standards (no certificate)

0 - 32 V

1 x

0 - 6 A

GW Instek GPP-2323 Bench PSU (adjustable voltage) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 2 x

Item no:2111173

Manufacturer's standards (no certificate)

0 - 32 V

2 x

0 - 3 A

GW Instek GPP-4323 Bench PSU (adjustable voltage) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 4 x

Item no:2111174

Manufacturer's standards (no certificate)

0 - 32 V

4 x

0 - 5 V

0 - 3 A

GW Instek GPP-4323 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 4 x

Item no:2468353

ISO standards

0 - 32 V

4 x

0 - 5 V

0 - 3 A

GW Instek GPP-2323 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 2 x

Item no:2468354

ISO standards

0 - 32 V

2 x

0 - 3 A

GW Instek GPP-1326 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 V 0 - 6 A RS232, USB programmable No. of outputs 1 x

Item no:2468381

ISO standards

0 - 32 V

1 x

0 - 6 A

GW Instek GPP-3323 Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 3 x

Item no:2468382

ISO standards

0 - 32 V

3 x

1.8 - 5 V

0 - 3 A

GW Instek GPP-4323 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 4 x

Item no:2468934

DAkkS standards

0 - 32 V

4 x

0 - 5 V

0 - 3 A

GW Instek GPP-2323 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 2 x

Item no:2468935

DAkkS standards

0 - 32 V

2 x

0 - 3 A

Documents & Downloads

Datasheet

Datasheet 2111058 GW Instek GPP-3323 Bench PSU (adjustable voltage) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 3 x

User & Safety Instructions

User & Safety Instructions 2111058 GW Instek GPP-3323 Bench PSU (adjustable voltage) 0 - 32 V 0 - 3 A RS232, USB programmable No. of outputs 3 x

Description

With the maximum output power of 217 W is the GPP-Series four models: GPP-1244 (0~6 0~32 V/A) for single-channel output and GPP -2323 for two-channel output (CH1: 0~32 V/0~3 A, CH2: 0~32 V/0~3 A), GPP -3323 for three-channel output (CH1: 0~32 V/0~3 A, CH2: 0~32 V/0~3 A, CH3: SUPPORTS 1.8V ensuring, 2.5V, 3.3V, 5.0 V/5A) and GPP-4277 for four-channel output (CH1: 0~32 V/0~3 A, CH2: 0~32 V/0~3 A, CH 3:0~5 V/0 ~ 1 A, CH4: 0~15 V/0~1 A). This series offers not only a high program resolution (1 mV/0.1MA) and re-read resolution (0,1mV/0.1MA), but also ≦ ≦ is characterised by an optimal noise behavior at low shaft lengths of 350 uVrms/2 mArms and a transient output power of ≦. For each channel is an independent Ausgangs-Ein/off switch.

This text is machine translated.

Features

4.3" TFT-LCD-Display
Supports setting value, measured value and output waveform display
Charging function (CC, CV, CR-mode)
Setting the resolution: 1mV/0.1MA; re-read resolution: 0,1mV/0.1MA
Low noise: 350 VRMS/2 mArms ≦
Transient Response Time: 50 s
Series and parallel tracking function without additional external wiring.
Use of hardware for the realization of surge protection/overload protection/overheating protection
Delay function/output monitoring function/Output recorder function
Intelligent temperature regulator fan reduces effective noise
Sequential output function and built-in 8-template waveforms
The output recorder function records the output voltage and current parameters with a minimum recording interval of 1 second on
Offers 10 Storage sets for each sequence/delay/Recorder/Panel Setting conditions.
Standard: RS-232, USB, external inputs and outputs

Scope of delivery

User manual · Power cord · 3x measuring lead GTL-204 A · 1x measuring lead GTL-201 A
This text is machine translated.
