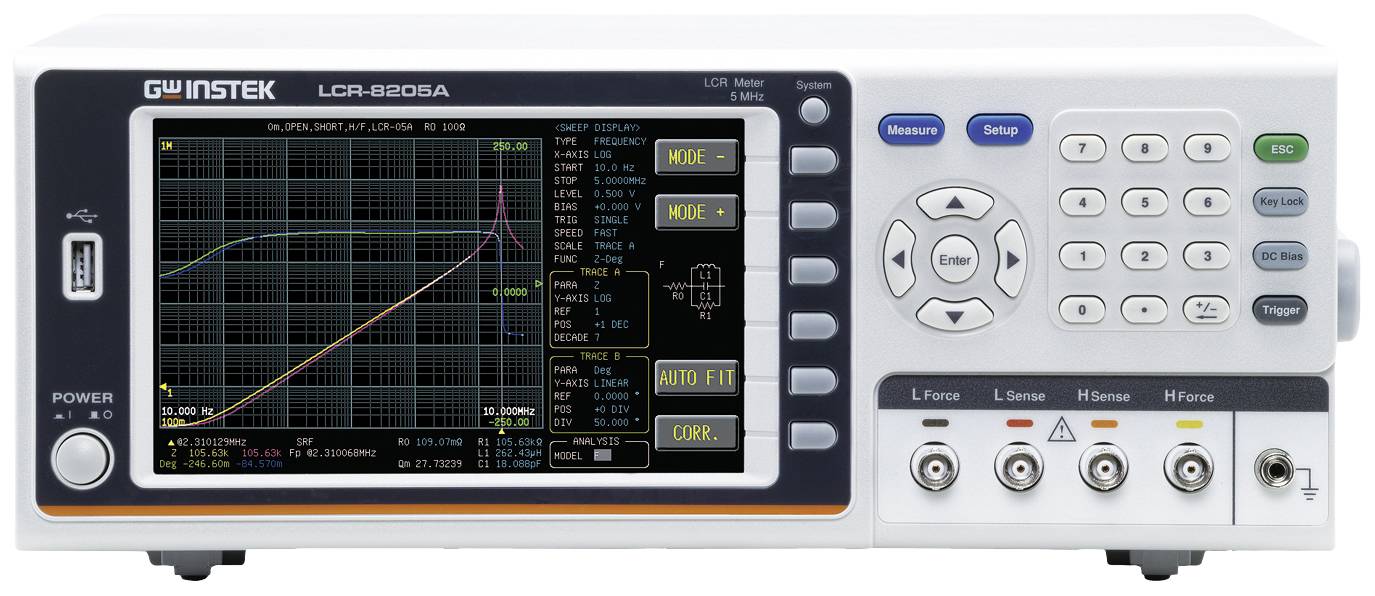

GW Instek LCR-8205A RLC circuit Digital

The GW Instek ~ LCR-8200 (A) high frequency LCR tester, which includes two series, LCR-8200A and LCR-8200, has ten models and the maximum test frequency is up to 50 MHz. The entire series has a 7-inch color display and offers high accuracy (0.08%). The measurement results can be displayed numerically or graphically, depending on the selected measuring mode, so that the user can optimally interpret the properties of the test object. At the same time, a wide range of standard interfaces such as USB device / RS-232C / Handler and GPIB allows the user to control the device via the most familiar interface without worrying about additional hardware investment costs. Furthermore, the series also offers a USB memory function for operation in graphics mode. The measured characteristics and values of the test sample are saved for later analysis. The versatile functions of the LCR-8200 (A) help the users to easily meet the test requirements for passive components in research and development as well as in production.
