GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 390.76 / piece)
€
Only 1 Piece(s) available
Highlights & Details

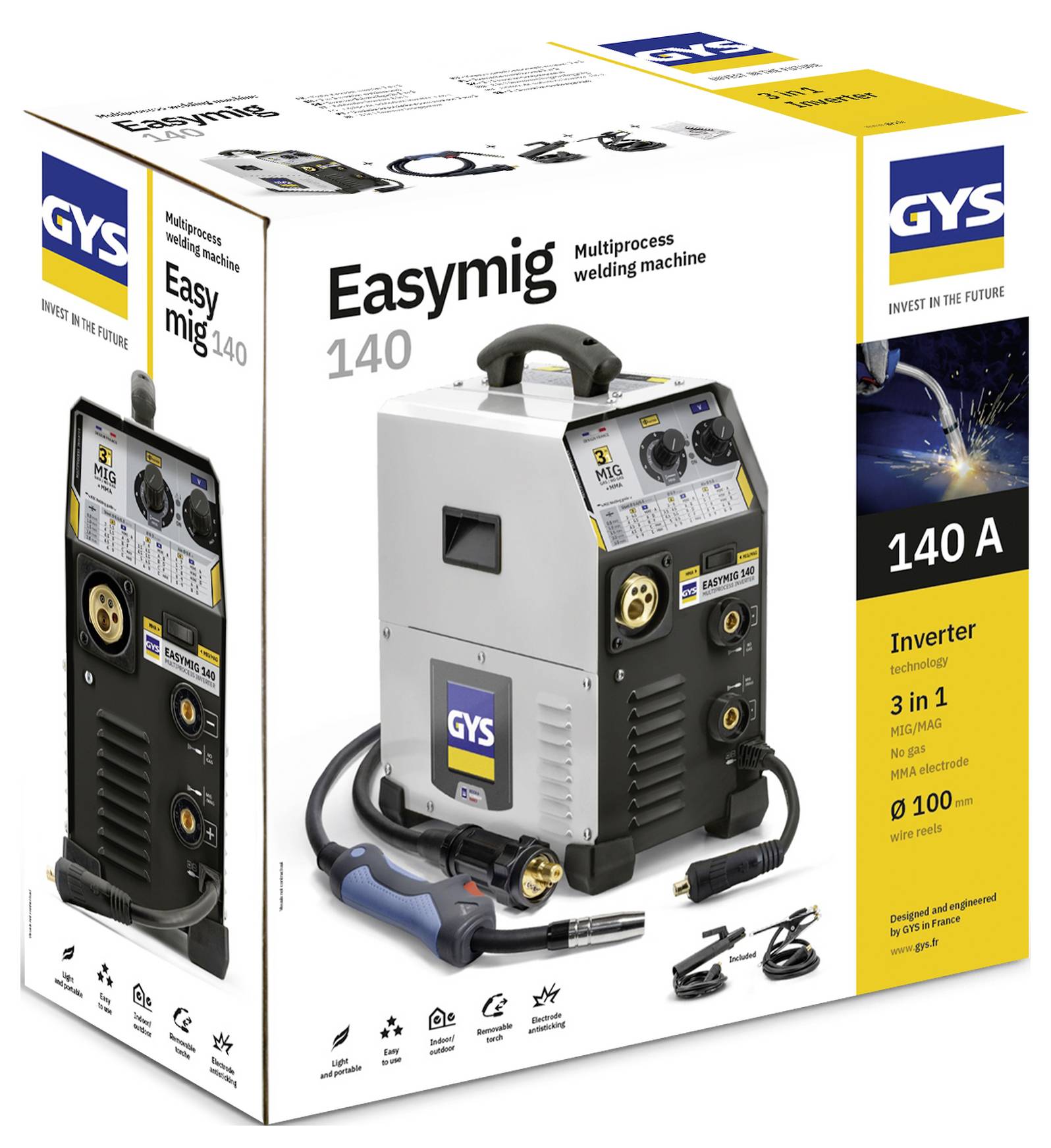

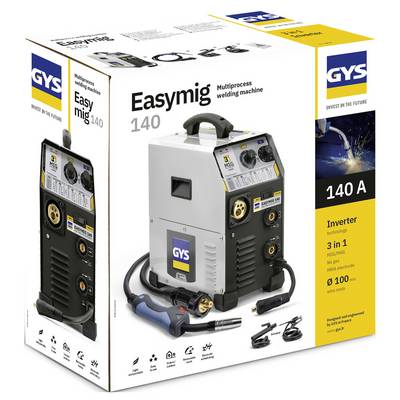

EASYMIG 140 - with accessories
- Ultra-light and portable
- Easy setting
- Simplified display
- Robust built
- Integrated
- Wire feed case
Technical specifications
- EN60974-1 (40°C) MIG:
- IA 80 A.
- X% 140 A.
- MMA:
- IA 70 A.
- X% 120 A.
- Product type
MIG/MAG welder
- Welding current (min.)
30 A
- Welding current (max.)
140 A
- Welding current (range)
30 - 140 A
- Welding wire Ø
0.9 (with gas 0.6 - 0.9 mm)
- Fused
16 A
- Operating voltage
230 V AC
- Length
350 mm
- Width
160 mm
- Height
380 mm
- Dim
(L x W x H) 350 x 160 x 380 mm
- Weight
7.8 kg
Documents & Downloads
Datasheet
Datasheet 2372146 GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
User & Safety Instructions
User & Safety Instructions 2372146 GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
Information
Information 2372146 GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
Information 2372146 GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
Information 2372146 GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
Information 2372146 GYS EASYMIG 140 MIG/MAG welder 30 - 140 A
Description

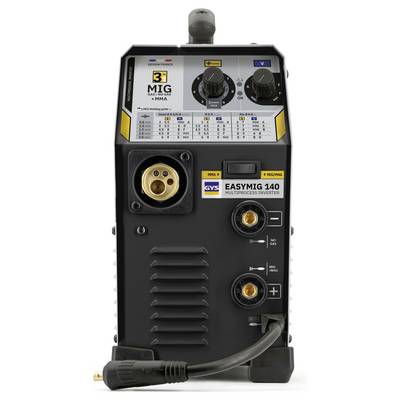

The EASYMIG 140 is a single-phase welding inverter capable of MIG/MAG, fill wire and e-hand welding and is suitable for steel, stainless steel and aluminum.

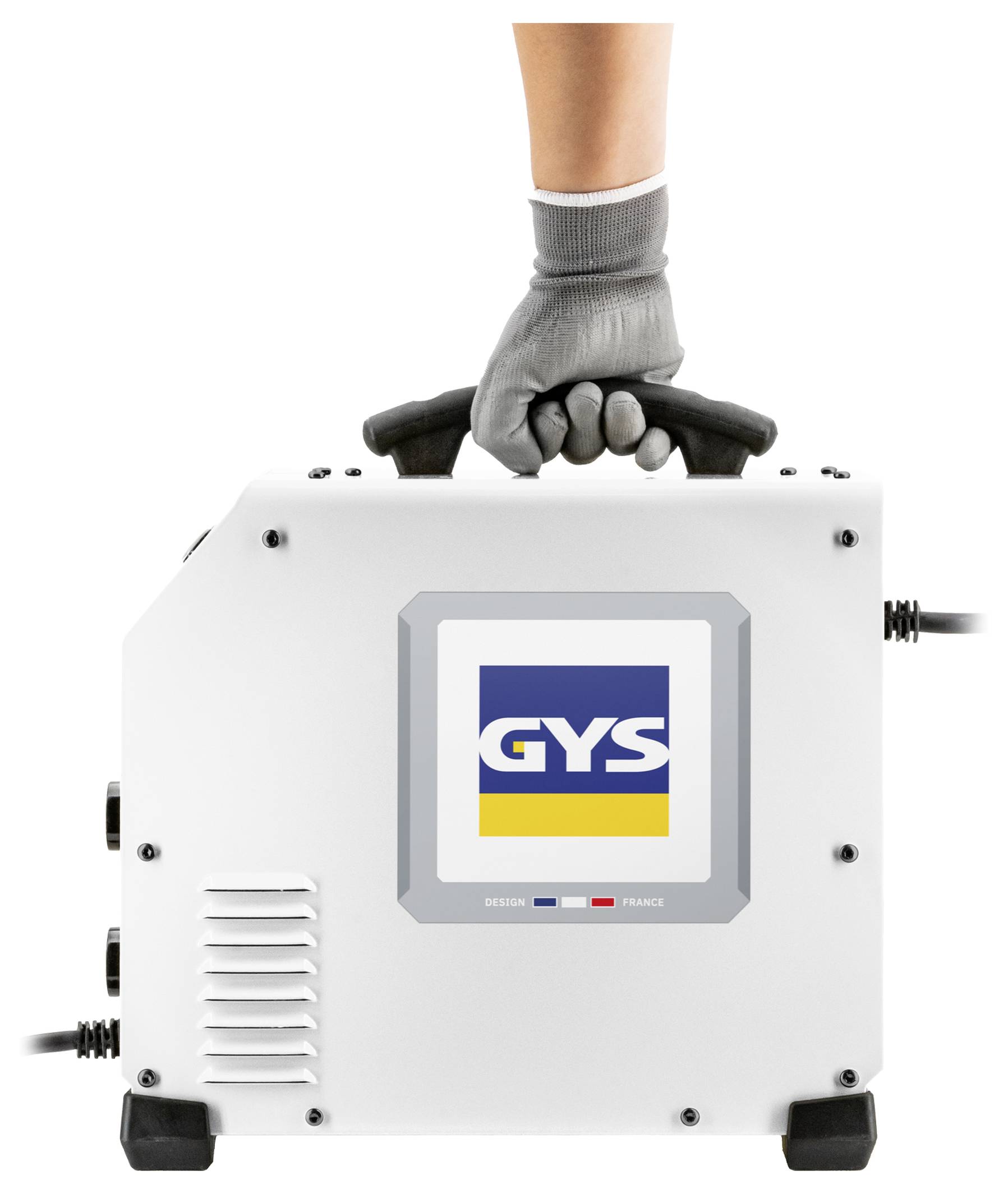

The robust and reinforced design, low weight and rubber dampers, which reduce shocks and vibrations, make the device suitable for mobile use.
An intuitive control panel makes it easy to set the wire tension and speed.
Only the following settings need to be selected:
· Specified voltage of 15 to 20 V or the electrical diameter for E-hand welding
· Selection of wire speed from 3 to 9 m/min.

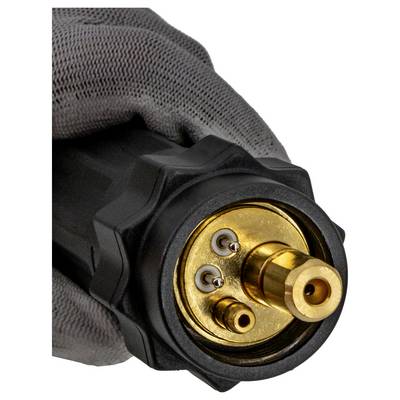

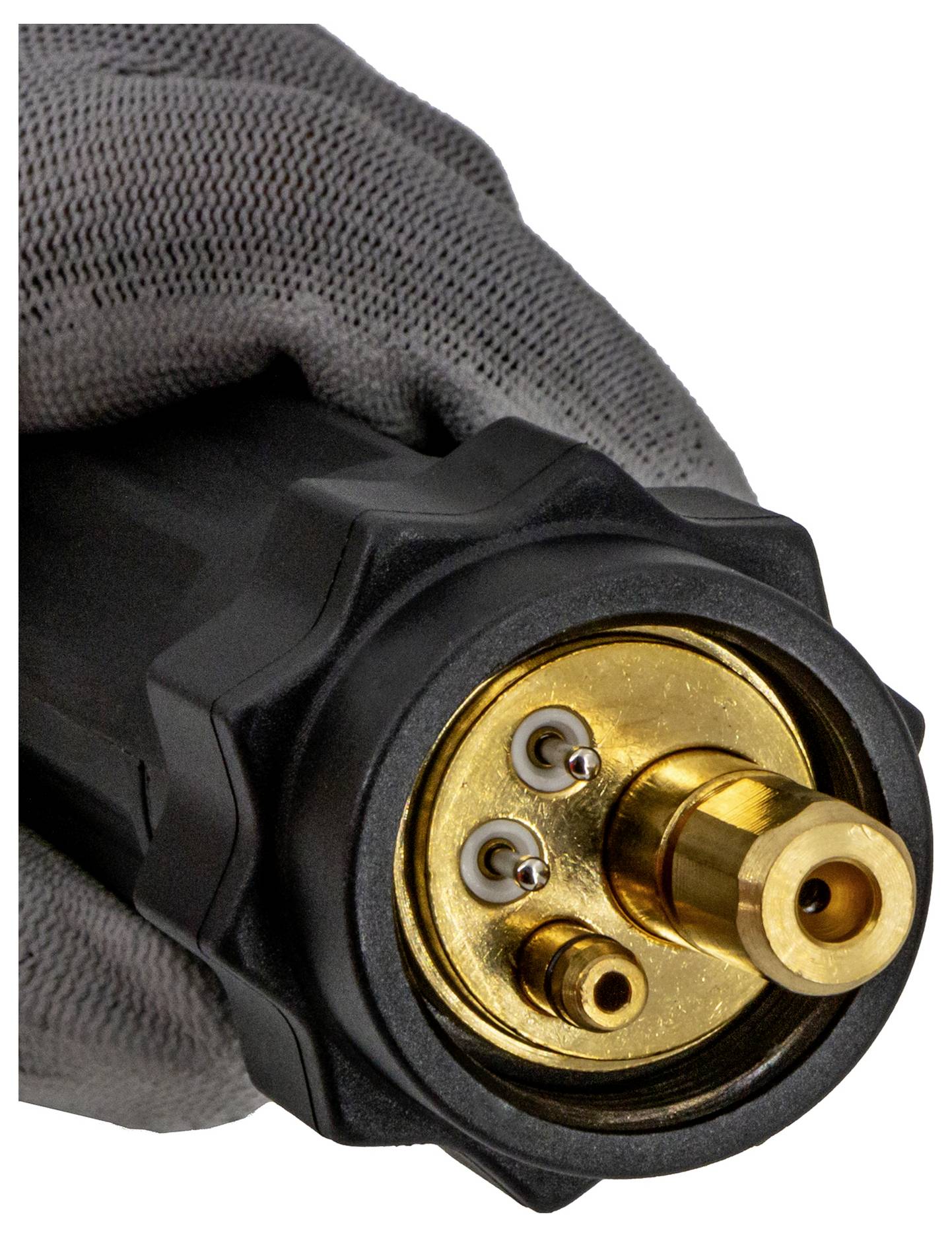

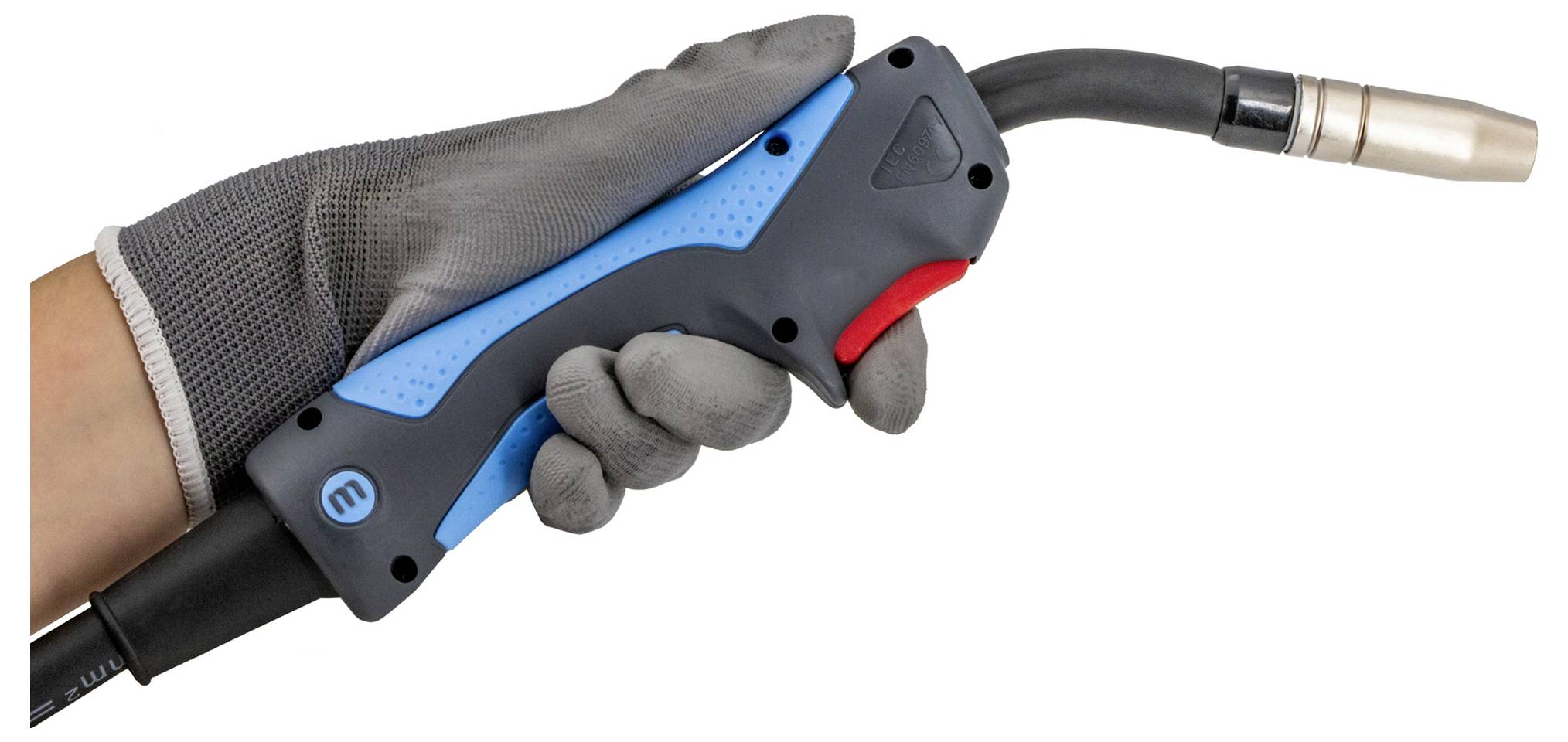

The device is equipped with a central Euro connection for easy replacement of the burner.
ANTI-STICKING:
Helps to reduce the tendemial sticking of the electrode in the welding bath.
The filling wire welding enables:
· Use the reverse polarity system to weld with the filler wire
· Insensitive to external influences (wind, ...)
· Lighter and more mobile, as no gas cylinder is required
· Ideal for external work on thin sheets
This text is machine translated.
The robust and reinforced design, low weight and rubber dampers, which reduce shocks and vibrations, make the device suitable for mobile use.
An intuitive control panel makes it easy to set the wire tension and speed.
Only the following settings need to be selected:
· Specified voltage of 15 to 20 V or the electrical diameter for E-hand welding
· Selection of wire speed from 3 to 9 m/min.
The device is equipped with a central Euro connection for easy replacement of the burner.
ANTI-STICKING:
Helps to reduce the tendemial sticking of the electrode in the welding bath.
The filling wire welding enables:
· Use the reverse polarity system to weld with the filler wire
· Insensitive to external influences (wind, ...)
· Lighter and more mobile, as no gas cylinder is required
· Ideal for external work on thin sheets
This text is machine translated.
Scope of delivery

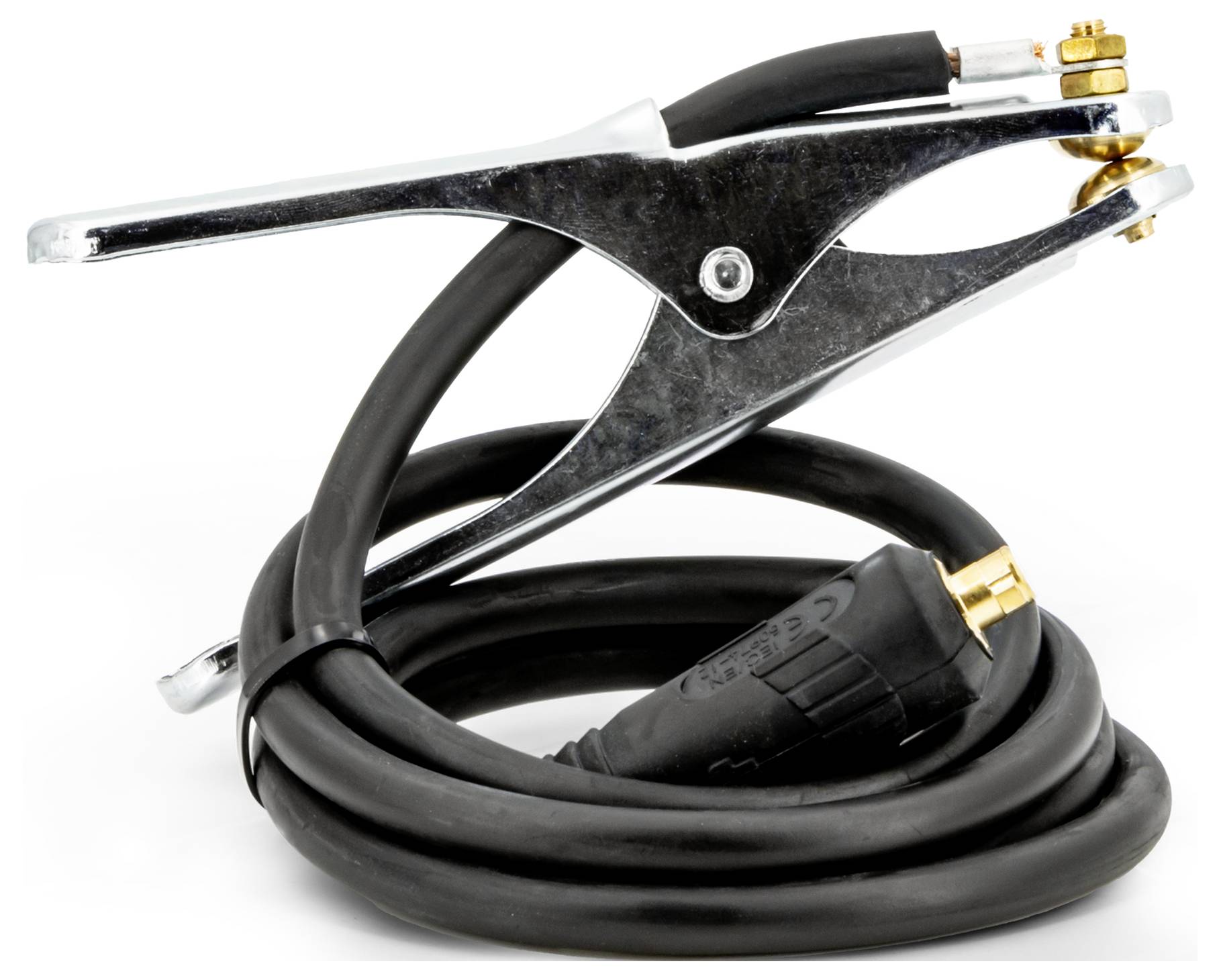

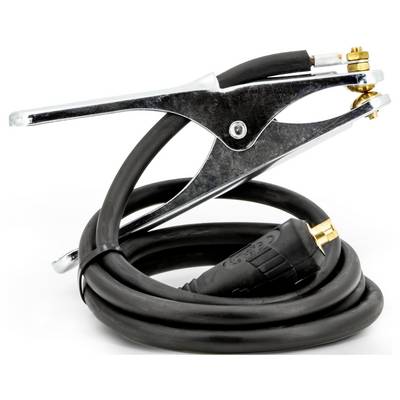

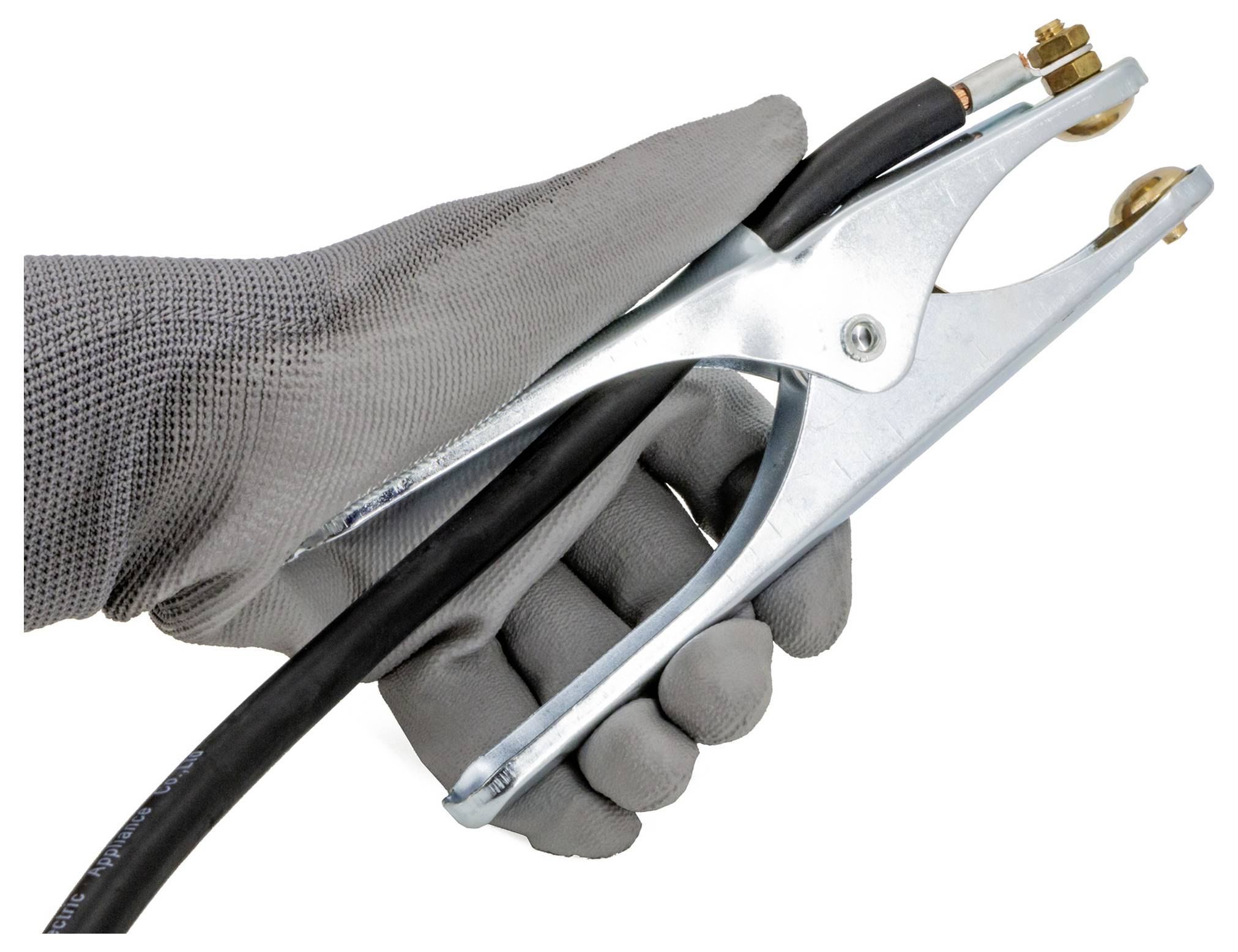

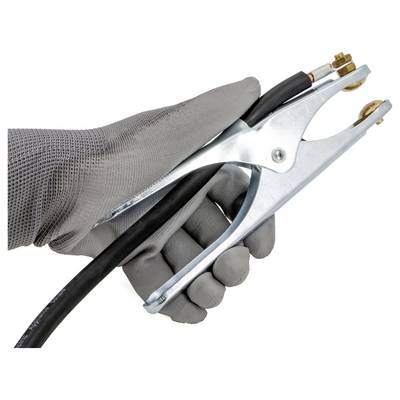

- Ground terminal (cable 1.6 m/16 mm²)

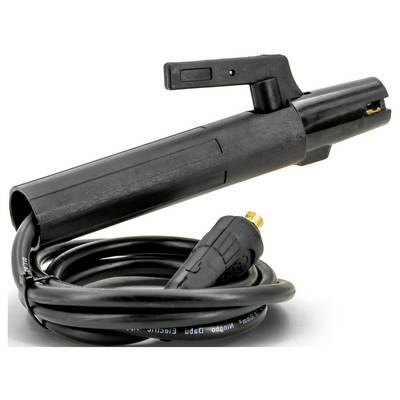

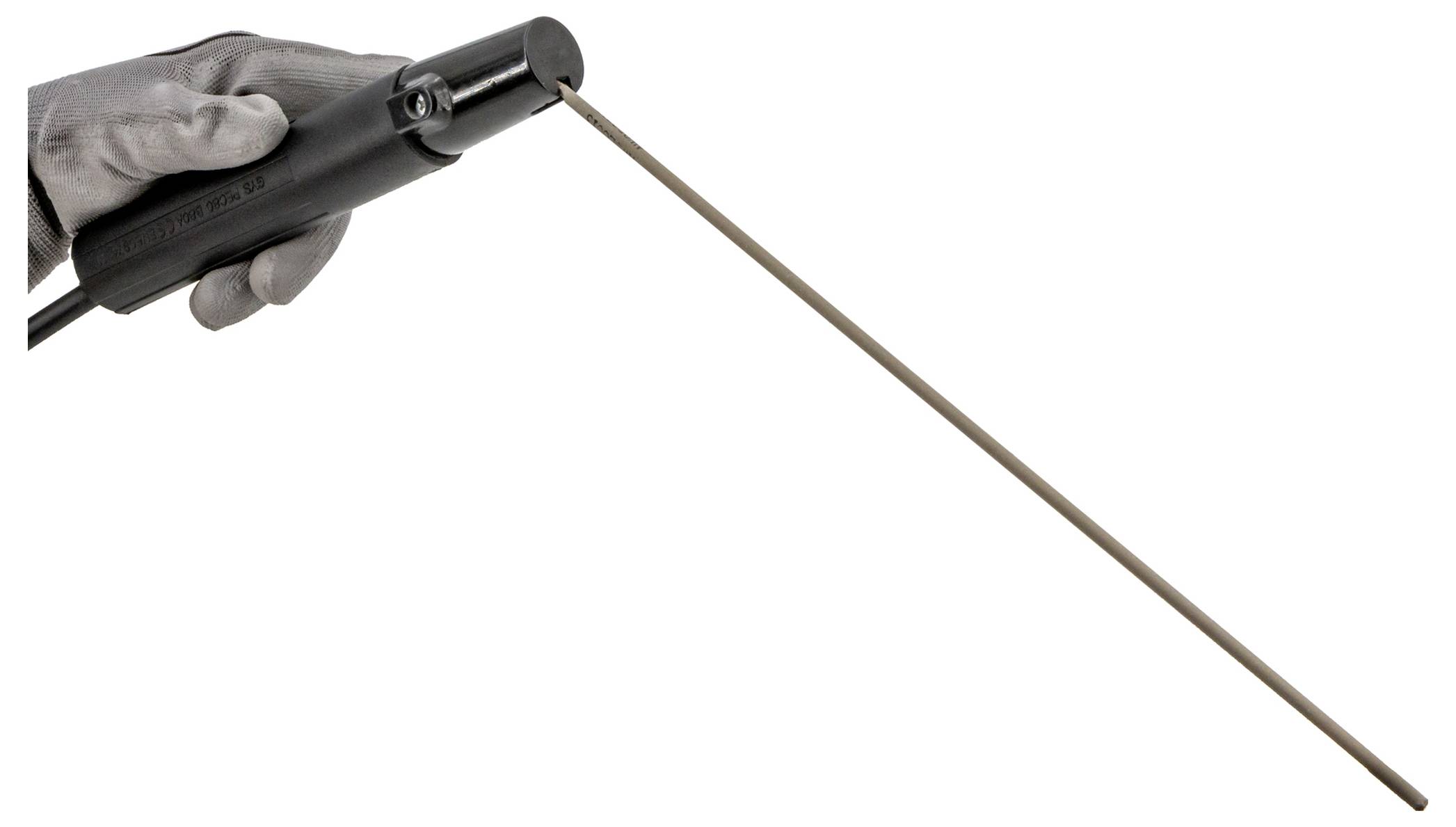

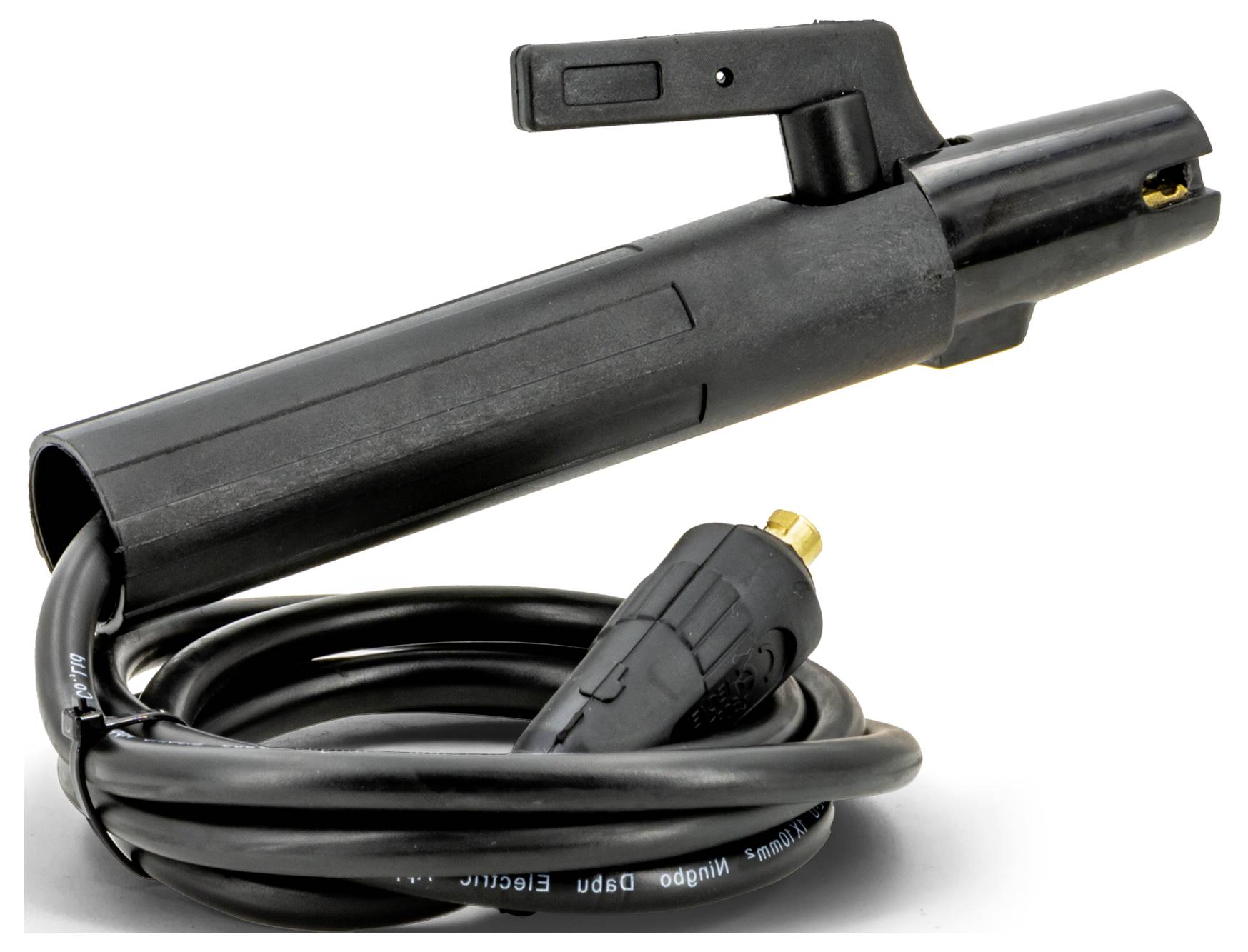

- Electrode holder (1.6 m/16 mm² cable)

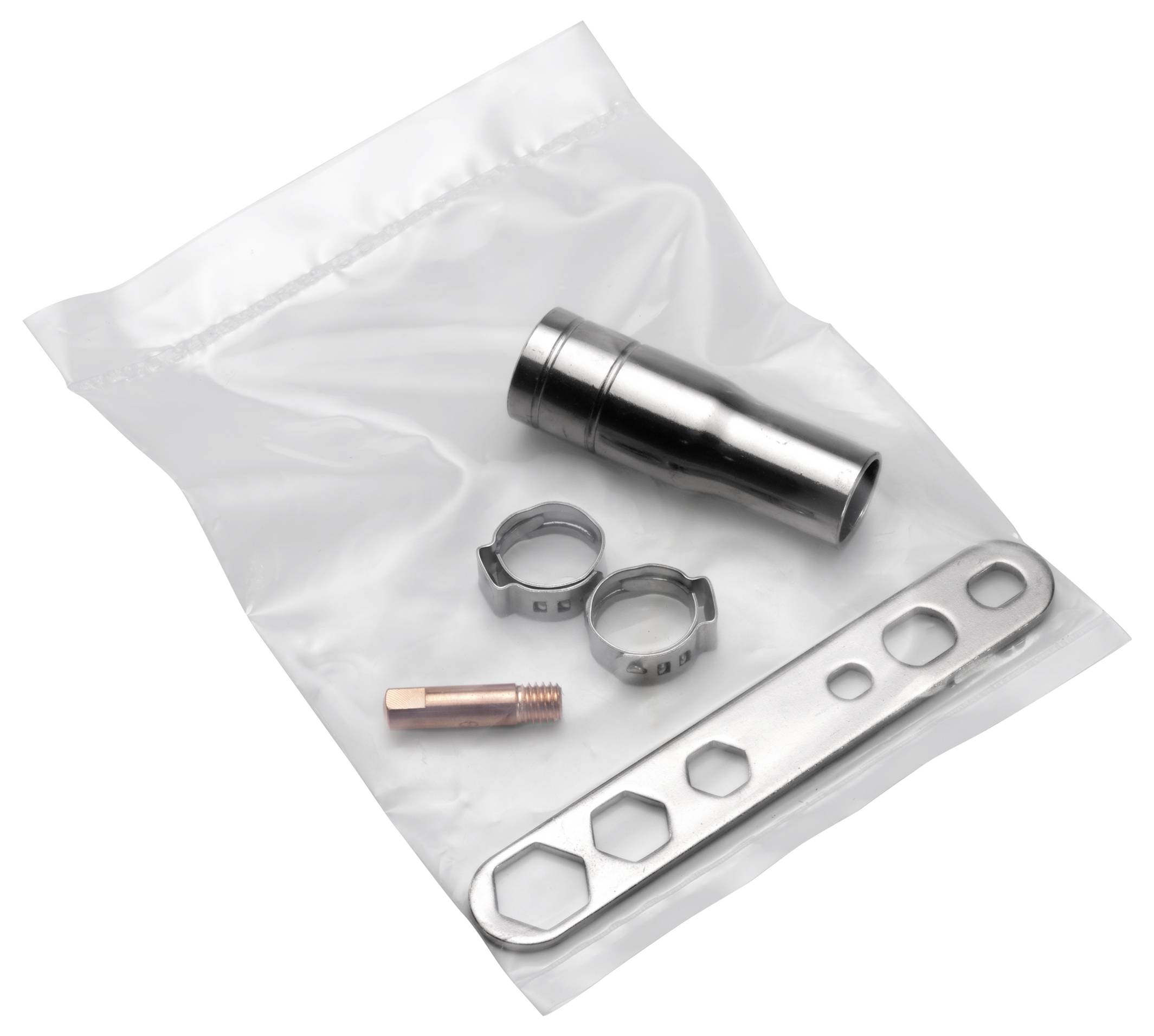

- Contact tube 0.9 mm
- «Gas" nozzle
- Contact pipe wrench
- Gas pipe 1 m
- 2 Hose clip for the gas pipe
