Buy GYS MULTIWELD 220M-C Inverter welder 30 - 220 A

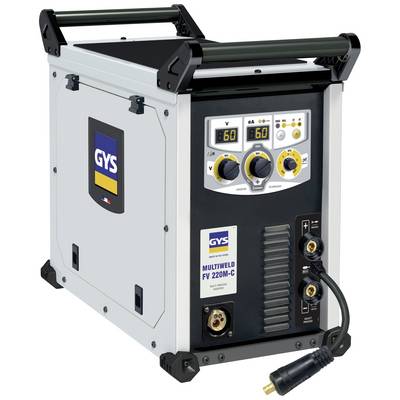

A portable welding machine with a digital display shows '60' and '220V'. Several adjustment knobs and connectors are visible at the front.

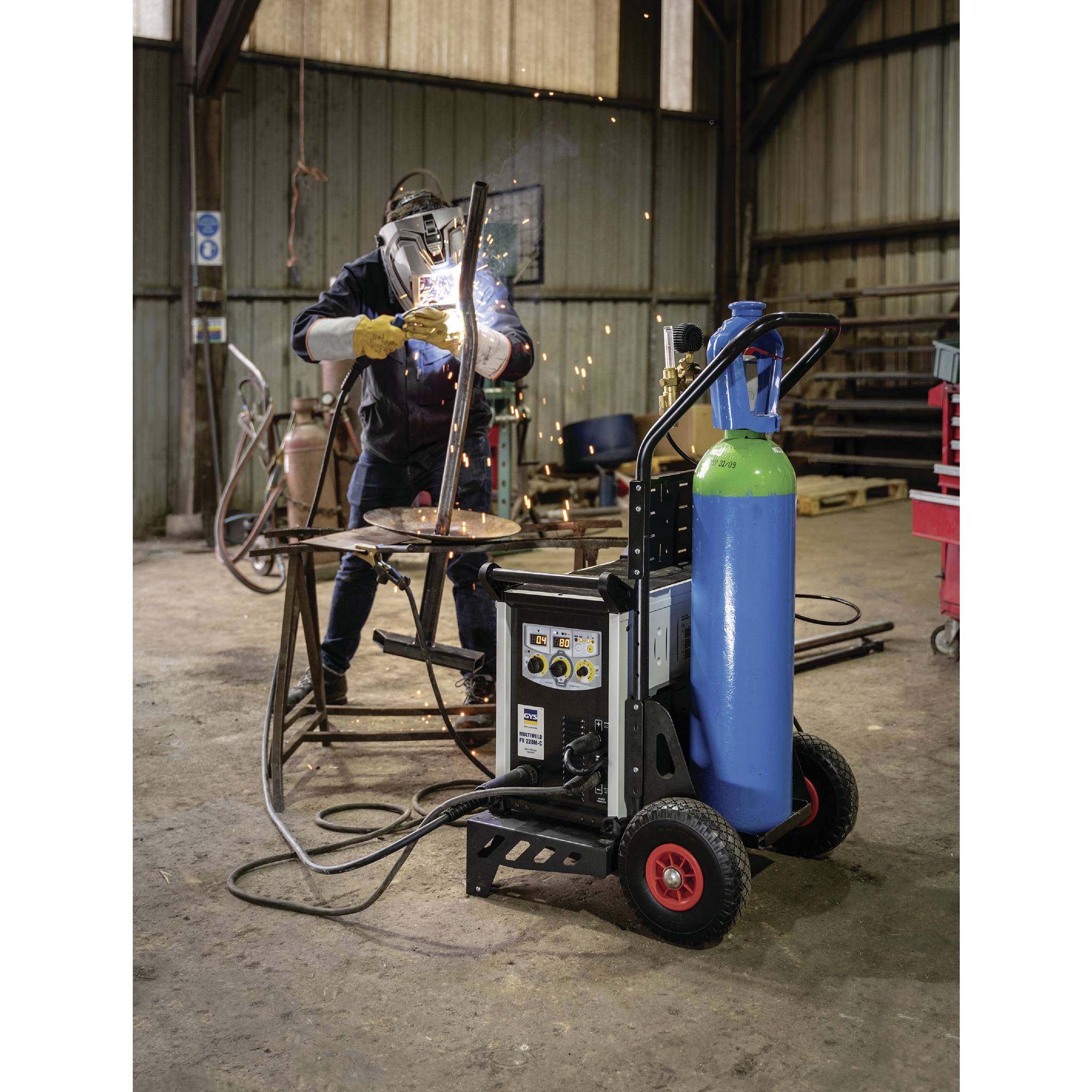

'Person welding with protective equipment in a workshop, surrounded by tools, welding equipment and gas cylinder in the foreground.'

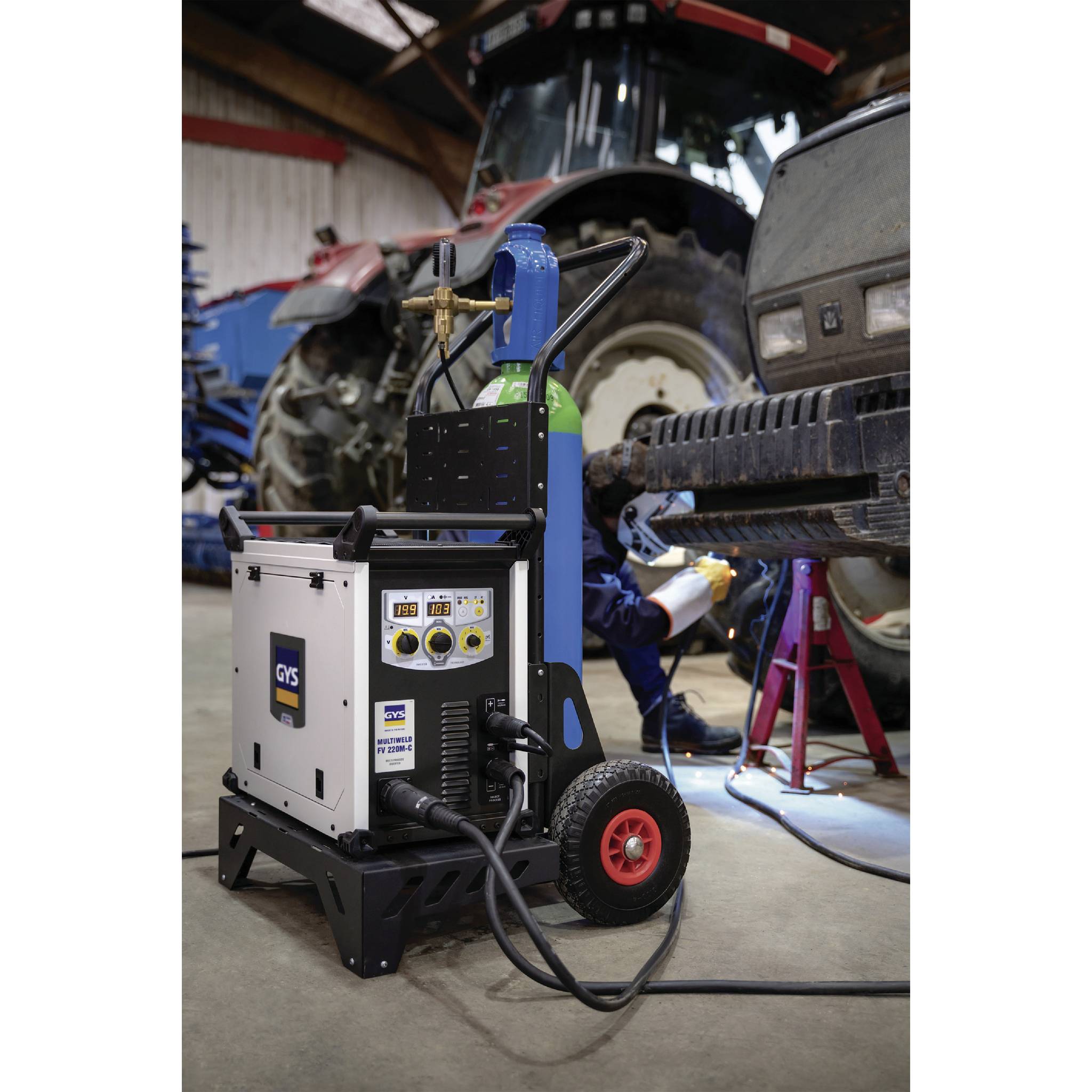

A mechanic is repairing a vehicle, with a welding machine in the foreground. Agricultural machinery can be seen in the background.

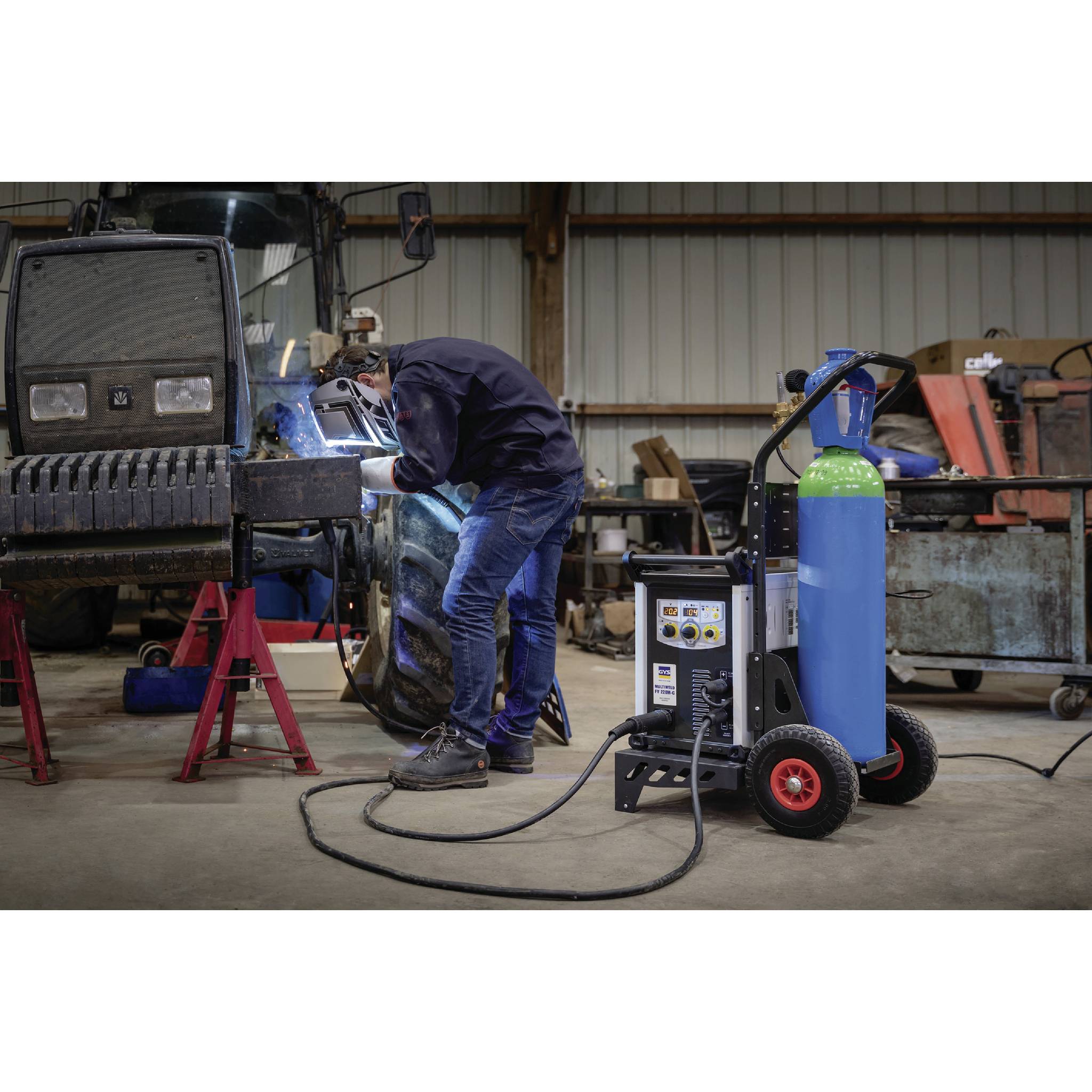

A person is welding in a workshop. They are wearing protective clothing and working with a welding device and gas cylinder near a large vehicle.

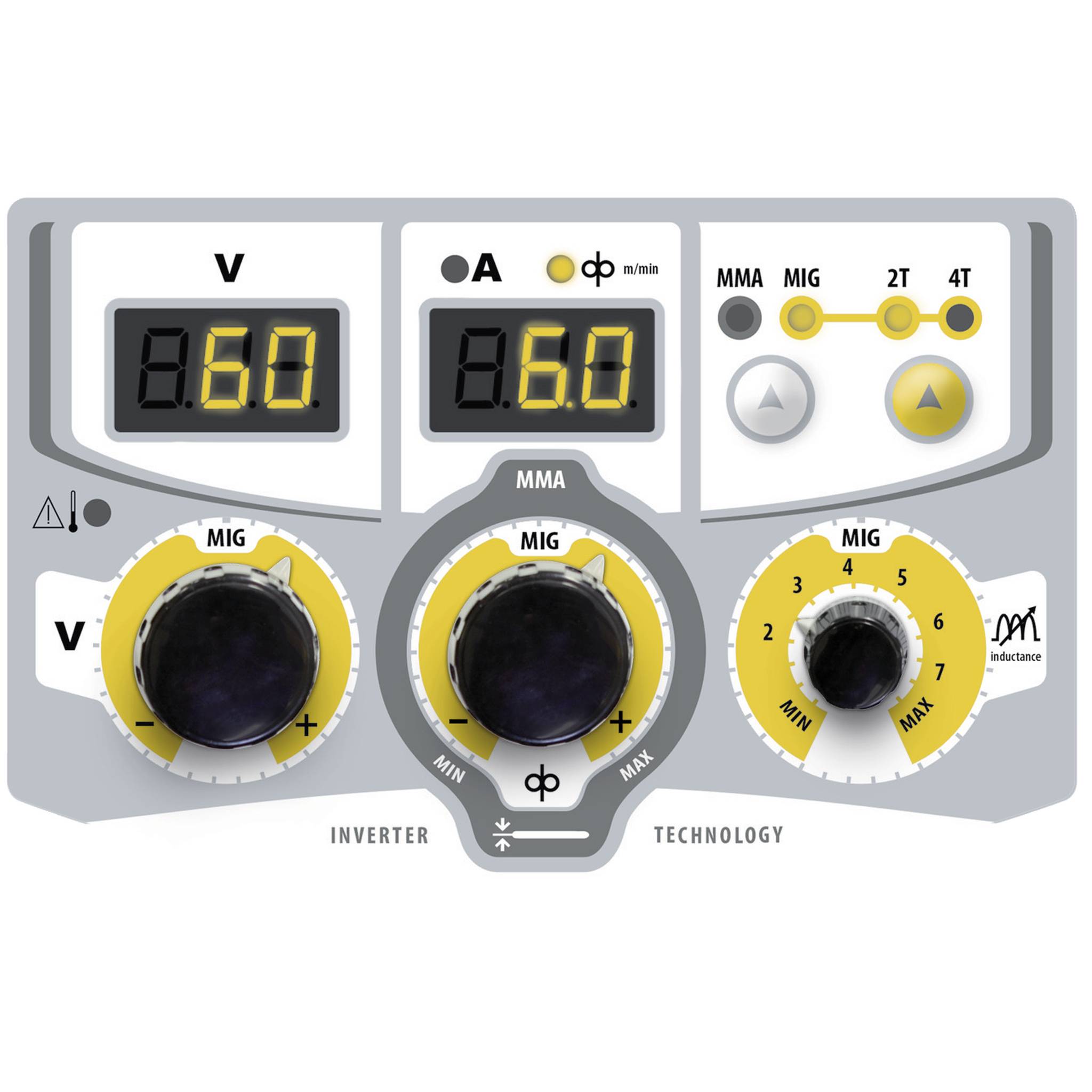

A control panel with digital displays for voltage ('V') and current ('A'). Three rotary knobs for controlling MIG and MMA welding.

1/5

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 1,063.03 / piece)

€

Report legal concerns

Highlights & Details

GYS MULTIWELD 220M-C Inverter welder 30 - 220 A

MMA AND MIG/MAGWelding aidPowerful, efficient 4-roller wire feed

Technical specifications

Welding current MMA 30 - 200 AIP23 protection

Welding current (min.): 30 A

Welding current (max.): 220 A

Welding current (range): 30 - 220 A

Electrode diameter: 1,6 - 5 mm

Fused: 16 A

Open circuit voltage (OCV): 75 V

Operating voltage: 230 V
110 V

Length: 580 mm

Width: 340 mm

Height: 520 mm

Dim: (L x W x H) 580 x 340 x 520 mm

Weight: 24 kg

Product type: Inverter welder

Documents & Downloads

Datasheet

Datasheet 2758256 GYS MULTIWELD 220M-C Inverter welder 30 - 220 A

User & Safety Instructions

User & Safety Instructions 2758256 GYS MULTIWELD 220M-C Inverter welder 30 - 220 A

Information

Information 2758256 GYS MULTIWELD 220M-C Inverter welder 30 - 220 A

Description

The MULTIWELD FV 220M-C is a particularly compactly designed single-phase power source, which combines MIG/MAG welding processes with filler wire and E-Hand (MMA). Thanks to the FV function (flexible voltage) operation is possible from voltage sources between 85 and 265 V. With the precise wire guide system consisting of 4 wire guide rollers and a reinforced housing with 2 handles for lifting or crane transport, the MULTIWELD FV 220M-C becomes an attractive device for use in your workshop as well as on your outdoor applications on construction sites.

This text is machine translated.

Features

Two-stroke or four-stroke operation can be selectedWelding aid: A table on the front side supports the user when selecting the voltage and the wire diameter depending on the material thicknessConnection socket (36V - 4.2A) for gas pre-heating for welding under pure CO2 (gas pre-heater optional)Socket suitable for US (A) as well as FOR EURO plugs (C/E/F types)Wire coils Ø 200 / 300 mmWire feed motor: 4 wire guide rollers for smooth rollingBurner with Euro-central connection for short set-up timeEasy to read display even in difficult lighting conditionsSimple control panel with buttons and knob, even adjustable with glovesProtection class IP 23 for outdoor useOperation possible at very long extension cables of up to 100 m.Two metal grips for a comfortable transportProtection against overvoltage up to 400 V (PROTEC 400)MIG/MAG welding: Steel wire : Ø 0.6 to 1.0 mm, stainless steel wire : Ø 0.8 to 1.0 mm, aluminum wire : Ø 0.8 and 1.0 mm, filler wire (with polarity reversal) : Ø 0.9 to 1.2 mmE-hand (MMA) welding : basic coated electrodes and rutile electrodes (up to Ø 5 mm)
