HellermannTyton 156-01697 T50RSFT6,5-HS-BK-D1 Cable tie 200 mm 4.60 mm Black Spring toggle and disc 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable tie
Content
1 pc(s)
Cable tie length
200 mm
Cable tie width
4.60 mm
Cable tie features
Spring toggle and disc
Datasheet (PDF)
790 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 0.61
6
10% = € 0.06
€ 0.55
10
11% = € 0.07
€ 0.54
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 0.61 / piece)
€ 0.83
-27 %
€
Highlights & Details
HellermannTyton 156-01697 T50RSFT6,5-HS-BK-D1 Cable tie 200 mm 4.60 mm Black Spring toggle and disc 1 pc(s)
Technical specifications
- Plate diameter: 22.4 mm
- Boring-Ø: 6.3 - 6.7 mm.
- Dim
- Product type
Cable tie
- Content
1 pc(s)
- Factory colour
Black
- Cable tie length
200 mm
- Cable tie width
4.60 mm
- Cable tie features
Spring toggle and disc
- Gearing
Inside
- Max. temperature
+145 °C
- Min. temperature
-40 °C
- Writing area
- Halogen-free
Yes
- Material
Polyamide 6.6
- Max. sheet thickness
2.00 mm
- Min. sheet thickness
0.7 mm
- Fire protection properties
UL94 V2.
- Max. bundle diameter
45 mm
- Manufacturer part #
156-01697
- Material (details)
Polyamide 6.6
- Mounting Ø (max.)
6.7 mm
- Mounting Ø (min.)
6.3 mm
- RoHS-compliant
Yes
- Type
T50RSFT6,5-HS-BK-D1
- Type
Displacable foot part at the cable tie
- Operating temperature
-40 - +145 °C
- Temperature range
-40 - +145 °C
Documents & Downloads
Datasheet
Datasheet 545993 HellermannTyton 156-01697 T50RSFT6,5-HS-BK-D1 Cable tie 200 mm 4.60 mm Black Spring toggle and disc 1 pc(s)
User & Safety Instructions
User & Safety Instructions 545993 HellermannTyton 156-01697 T50RSFT6,5-HS-BK-D1 Cable tie 200 mm 4.60 mm Black Spring toggle and disc 1 pc(s)
Description

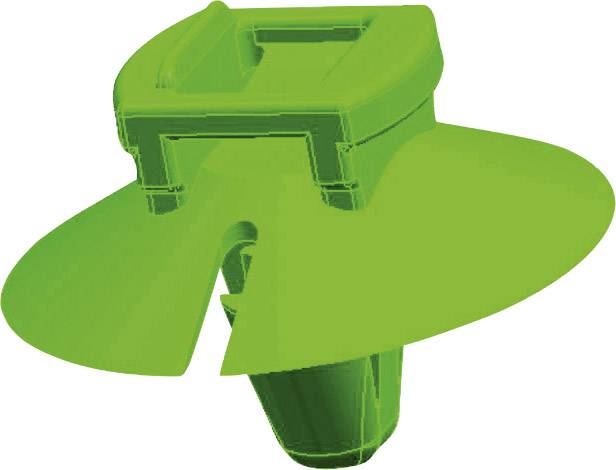

In case of a mounting sensor with a displacable foot part the head of the cable tape can be rotated during the mounting as well as while installing in the optimum position. A cable tape serrated on the inside is also included. The expanding anchor can be pushed through the hole, which plumes on the back of the sheet. The domed head provides tight and rattle-free installation.
