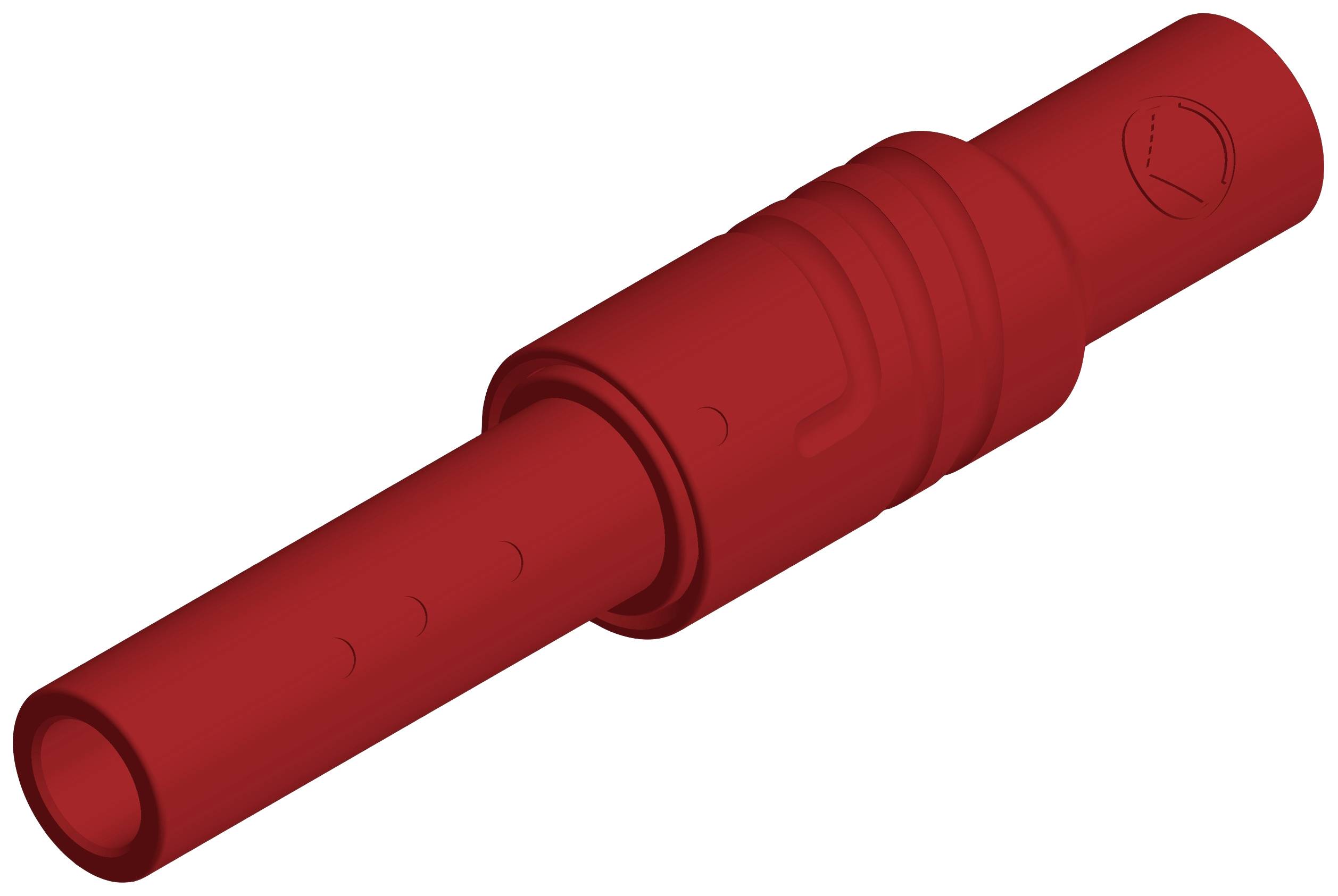

Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
326 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 5.03
-8 %
€
Highlights & Details
Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Red 1 pc(s)
- 4 mm rigid sleeve system
Technical specifications
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Manufacturer part #
934096101
- Type
KUN S
- Content
1 pc(s)
- Dim
- Factory colour
Red
- Connection
Screws
- Insulation type
Insulated
- Nominal voltage
1000 V
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Pin Ø
4 mm
- Connector type
Socket, straight
- Insulation material
PA
- Certification marks
DIN EN 61010/ 031
- Connection
-
- Contact material
Brass nickel plated
- RoHS-compliant
Yes
- Operating voltage
1000 max. V
- Product type
Straight blade safety socket
Documents & Downloads
Datasheet
Datasheet 735245 Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 735245 Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Red 1 pc(s)
Description
Couplers used for building your own test/measurement leads. Various contact and connection systems let you find the optimum solution for every application. Couplers make it possible to create extension/jointed cables. Safety coupler KUN S 4 mm Ø screw terminal.
