HT Instruments HT25N Handheld multimeter Digital CAT III 600 V Display (counts): 2000
EAN:
Part number:
Item no:
Datasheet (PDF)
45 Piece(s)
Sales and shipping:
Number
Total (€ 48.73 / piece)
€
Highlights & Details
HT25N
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
1 µA
- A DC reading range (max.)
10 A
- Reading range - resistance
0.1 Ω ÷ 2 MΩ
- Power supply (details)
9 V DC
- Height
48 mm
- Width
70 mm
- Length
150 mm
- Weight
255 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
DC
- Type
HT25N
- Display
Digital
- Display (counts)
2000
- Dim
(L x W x H) 150 x 70 x 48 mm
Documents & Downloads
Datasheet
Datasheet 2176483 HT Instruments HT25N Handheld multimeter Digital CAT III 600 V Display (counts): 2000
User & Safety Instructions
User & Safety Instructions 2176483 HT Instruments HT25N Handheld multimeter Digital CAT III 600 V Display (counts): 2000
Description

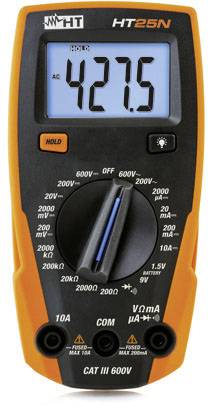

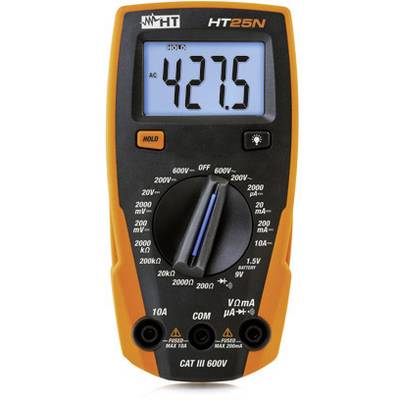

The HT25N is a compact, digital multimeter with large backlit LCD display, for AC/DC voltage up to 600 V and DC current up to 10 A, resistance, battery test, continuity test and diode test in electrical installations with CAT III 600 V.
This text is machine translated.
This text is machine translated.
Scope of delivery
- measurement cable
- Battery
- Operating instructions.
