HT Instruments HTPT03 Equipment tester, VDE tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 3,273.11 / piece)
€
Highlights & Details

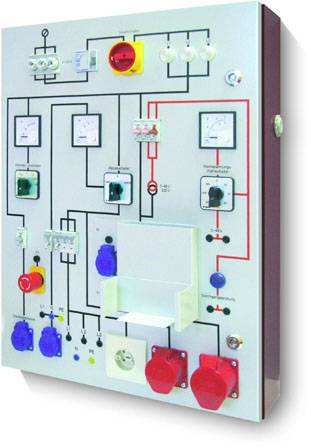

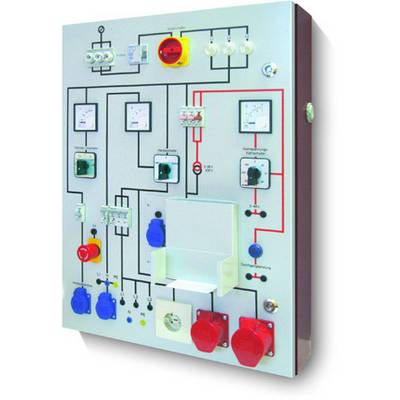

Workshop-based board
- According to VDE 0104 on WS and DS equipment
- According to DIN VDE 0701/0702 (optional with external device tester e.g. Eurotest 0701/2)
- Operating voltage
- Power consumption at WS-consumers max. 16 A
- Optical continuity test
- Low voltage 0-42 V / AC
Technical specifications
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 150 x 600 x 800 mm
- Weight
34 kg
- Display type
Analogue
- Width
600 mm
- Height
800 mm
- Length
150 mm
- Test procedure
automated
manual
- Memory
No
- Type
HTPT03
Documents & Downloads
Datasheet
Datasheet 2176441 HT Instruments HTPT03 Equipment tester, VDE tester
User & Safety Instructions
User & Safety Instructions 2176441 HT Instruments HTPT03 Equipment tester, VDE tester
Description
The ideal supplement to your workshop initial equipment with all measuring and
Test options according to DIN VDE 0104.
This text is machine translated.
Test options according to DIN VDE 0104.
This text is machine translated.
Features
- 1 main fuse 3/25 A, E 18
- 1 EI-circuit breaker (RCD) pulse-current sensitive, 4-pin /25/0.03 A
- 1 main/emergency/OFF switch, 3/25A lockable in 0 position
- 1 EMERGENCY-OFF button, latching
- 1 safety device 2 A, 5/20 mm
- 1 terminal connection for external EMERGENCY-OFF button
- Mains connection terminals 5 x 4 mm²
- 1 terminal connection for external signal lamp according to VDE 0104
- 1 terminal connection for connecting an expansion board
- 1 Voltmeter switch for measuring interlinking and phase voltages
- 1 voltmeter 0-500 V, Cl. 1.5, 72 x 72 mm
- 1 circuit breaker, 1-pin B 16 A
- 1 ammeter 0-15/30 A, Cl. 1.5, 12 x 12 mm
- 1 protective contact socket 16 A, 230 V (measuring socket)
- 1 circuit breaker, 1-pin, B 16 A.
- 1 protective contact socket 16 A, 230 V (mains socket)
- 3 safety laboratory sockets L1, N, PE, 16 A, 230 V, 4 mm (measuring sockets)
- 1 Turn switch 25 A (left-0-right)
- 1 CEE-socket 5-pin, 32 A, 400 V (work socket)
- 1 CEE socket 5-pin, 16 A, 400 V (mains socket)
- 1 circuit breaker, 3-pin, C 16 A.
- 5 safety laboratory sockets 4 mm L1, L2, L3, N, PE, 16 A, 230 V (work plug sockets)
- 1 Perilex socket 5-pin, 16 A, 400 V (mains socket)
- 1 safety transformer 100 VA primary 230 V/sec 3, 5, 8.12, 24, 42 V AC
- 1 circuit breaker, 1-pin, C 2A I, transformer prim.
- 1 circuit breaker, 1-pin, C 4A, I, transformer, (0-24 V) sec.
- 1 circuit breaker, 1-pin, C 2A, I, transformer (42 V) sec.
- 1 Continuity test lamp 42 V, 2 W
- 2 safety laboratory sockets 4 mm for optical continuity testing
- 1 low-voltage selector switch 0-3-5-8-1 2-24-42 V.
- 1 Voltmeter 0-15/0-60 V, Cl. 1.5, 72 x 72 mm
- 2 safety laboratory sockets 4 mm for acceptance of low voltage 0-42 V.
- Holder for removable device tester
- Incl. Device tester holder
