Buy ICY BOX IB-1817M-C31, Type-C® USB 3.1 (Gen 2) zu PCIe NVMe M.2 2230/2242/2260/2280 SSD M.2 SSD enclosure USB C® (USB 3.2

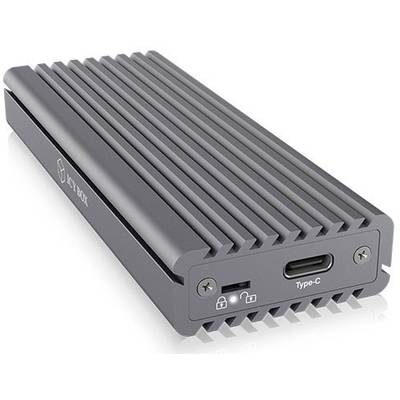

A grey, ribbed aluminium enclosure for an SSD drive with USB-C and USB ports, suitable for rapid data transfers.

A housing for an NVMe PCIe SSD, partially opened, shows the insertion slot for the SSD with a USB Type-C connector at the front.

External NVMe enclosure with aluminium heat fins, USB-C connection. Model number: IB-1817M-C31.

Grey metallic device with USB Type-C port and security lock symbol.

External aluminium SSD enclosure with grooved texture. USB Type-C port and lock/unlock symbol visible at the front.

External SSD with USB-C connection; removable cover; securing screws; suitable for rapid data transfer.

External SSD enclosure adapter with outstanding slot for an NVMe SSD; Type-C connection and two screws for securing.

1/7

40 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 20.16 / piece)

€

Report legal concerns

Highlights & Details

ICY BOX M.2 NVME SSD Housing with write protection IB-1817M-C31 USB type C™

High-quality aluminum casing in innovative cooling ribbed design
Connection to the host computer: USB 3.1 (Gen 2) Type C™, up to 10 Gbps
Supports PCIe 3.0 x2 data transfer rates of up to 1000 megabytes per second
M-Key socket for NVMe SSDs, 22x 30/42/60/80 mm
Has additional, patented heat sink and heat conduction pad inside
Activation of write protection via switch
LED for operation, access and write protection
Supports Windows®, MacOS®

Technical specifications

Product type: M.2 SSD enclosure

HDD connection: M.2 PCIe NVMe

Compatible with: 2230
2242
2260
2280

Supported HDD size (max.): 8 TB

Interfaces: USB C® (USB 3.2 2nd gen)

Transfer rate: 10 GBit/s

Power supply (LOV): via USB

Storage media features: Write protection

Material: Aluminium

Factory colour: Black/grey

Width: 100 mm

Height: 200 mm

Depth: 25 mm

Dim: (W x H x D) 100 x 200 x 25 mm

Weight: 205 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1931851 ICY BOX IB-1817M-C31, Type-C® USB 3.1 (Gen 2) zu PCIe NVMe M.2 2230/2242/2260/2280 SSD M.2 SSD enclosure USB C® (USB 3.2

Description

Fast and mobile
With the external USB 3.1 type C™ housing IB-1817M-C31 an NVMe SSD can be taken along quickly and easily. It allows access to M.2 data carriers of up to 2TB, no matter which host computer it is connected to.

Always stay cool
The patented cooling plate passes the waste heat generated by the SSD to the housing and thus optimally cools the SSD. This prevents the usual premature reduction of the transmission rate to protect against overheating. With the IB-1817M-C31, data can be sent permanently from A to B at maximum transmission rate of up to 10 Gbit/s.

Time is precious
The IB-1817M-C31 is compatible with 30, 42, 60 and 80mm M.2 SSDs and is suitable for a wide range of applications such as high-speed storage, disk cloning, or running a mobile operating system. All this happens with a data transfer rate of up to 1000 MB per second. Compared to data transfer with a SATA drive, the transfer rate is almost doubled.

Click - secure
With the IB-1817M-C31 sensitive data on the installed M.2 SSD can be protected against changes and released again by means of switches. With the supplied practical mini-tool and a small hand movement, the switch of the IB-1817M-C31 can be moved to the desired position. Click - secure.

This text is machine translated.

Scope of delivery

IB-1817M-C31 (SSD not included)
Type C™ to Type C™ cable (20 cm)
Type C™ to Type A cable (20 cm)
Silicon heat conductive pad
Heat Sinks
Tool for write protection switch
Screwdriver
Set of screws
Quick installation guide

System requirements

Windows®, MacOS®.
