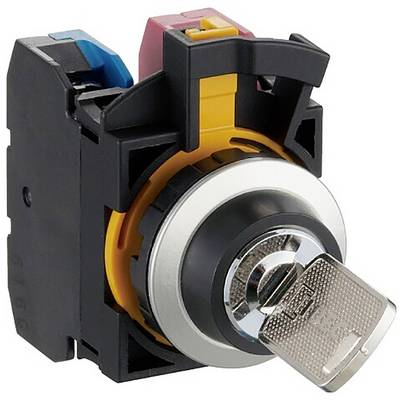

Idec CW4K-2AE20 CW Series Key switch 300 V 10 A 2 x 45 ° IP65, IP66 1 pc(s)
Part number:
Item no:
Switch postions
2
Switching voltage
300 V
Switching current (max.)
10 A
IP rating
IP65
IP66
Product type
Key switch
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€
Only 5 Piece(s) available
Technical specifications
- Casing/button colour
Black
- Switching angle
2 x 45 °
- Switch postions
2
- Material
Polyamide
- Contact material
Silver
- Connection
Screws
- Switching voltage
300 V
- Switching current (max.)
10 A
- Min. temperature
-40 °C
- Max. temperature
80 °C
- Length
41.4 mm
- Width
30 mm
- Height
71.4 mm
- (Ø)
28 mm
- Durability
At least 100 000 inserts
- Electrical lifespan
At least 50 000 inserts
IP65
IP66
- Type
CW Series
- Content
1 pc(s)
- Dim
(Ø x H) 28 mm x 71.4 mm
- RoHS-compliant
Yes
- Product type
Key switch
Documents & Downloads
Datasheet
Datasheet 3395403 Idec CW4K-2AE20 CW Series Key switch 300 V 10 A 2 x 45 ° IP65, IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3395403 Idec CW4K-2AE20 CW Series Key switch 300 V 10 A 2 x 45 ° IP65, IP66 1 pc(s)
Description
22mm flush mount key selector switch
