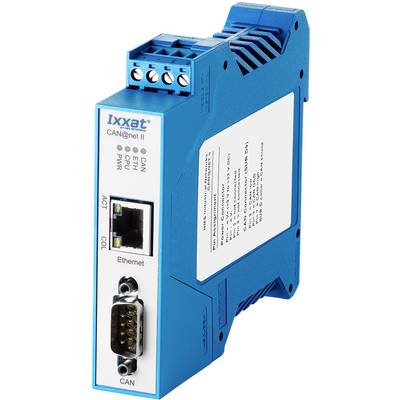

Ixxat 1.01.0086.10201 CAN@net II/Generic CAN bus CAN bus, Ethernet 12 V DC, 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 1,007.56 / piece)
€
Highlights & Details
Ixxat 1.01.0086.10201 CAN@net II/Generic CAN bus CAN bus, Ethernet 12 V DC, 24 V DC 1 pc(s)
- Bridging of large distances and simple system access via Ethernet
- Filters and conversion functionality
- Cost savings through simpler wiring
Technical specifications
- PC-Bus interface: 10/100 Mbit/s Ethernet (10 Base-T/100Base-T), Auto Detect, RJ45 plug
- IP address assignment: DHCP, via PC-tool
- Microcontroller: Freescale MCF 5235, 150 MHz
- Memory: 8MB DRAM, 4 MB Flash
- CAN controller SJA1000:
- CAN-Bus interface: ISO 11898-2, D-Sub 9 plug to the CiA 303-1, galvanically isolated (500 V)
- Certification: CE, FCC, CSA
- Housing: plastic housing for DIN rail mounting.
- Product type
CAN bus
- Interfaces
CAN bus
Ethernet
- Type
CAN@net II/Generic
- Operating voltage
12 V DC
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-20 °C
- Operating temperature
-20 up to 70 °C
- Dim
(W x H) 22.5 mm x 100 mm
- Max. current consumption
250 mA
- Height
100 mm
- Width
22.5 mm
- Manufacturer part #
1.01.0086.10201
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1386371 Ixxat 1.01.0086.10201 CAN@net II/Generic CAN bus CAN bus, Ethernet 12 V DC, 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1386371 Ixxat 1.01.0086.10201 CAN@net II/Generic CAN bus CAN bus, Ethernet 12 V DC, 24 V DC 1 pc(s)
Description
Can Ethernet Gateway
In gateway mode, the CAN@net II/Generic is connected to a PC or controller platform via TCP/IP. The application program on the host communicates over a standard TCP/IP socket and uses a simple ASCII protocol. The CAN@net II/Generic thus provides a simple and flexible access to CAN systems via a LAN or via the Internet as a CAN Ethernet gateway.
Can Ethernet CAN Bridge
A CAN Ethernet CAN bridge can be implemented using two CAN@net II/Generic. This bridge enables the exchange of CAN messages between two CAN systems via TCP/IP, whereby filter tables can be stored.
The configuration of the TCP/IP communication parameters is done conveniently via a PC tool with automatic device recognition. The web server implemented on the CAN@net II/Generic is used to configure the bridge function and to set the CAN configuration parameters.
