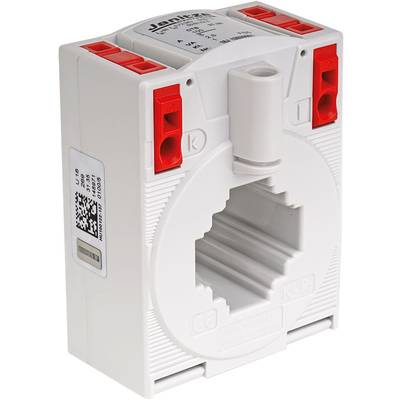

Janitza 200/5 - CTB 31.35 1503274 Current transformer attachment Primary current 200 A 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
6 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€
Only 6 Piece(s) available
Technical specifications
- Product type
Current transformer attachment
- Primary current
200 A
2.5 VA
- Type
200/5 - CTB 31.35
- Weight
230 g
- Factory colour
White
- Width
60 mm
Documents & Downloads
Datasheet
Datasheet 2452088 Janitza 200/5 - CTB 31.35 1503274 Current transformer attachment Primary current 200 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2452088 Janitza 200/5 - CTB 31.35 1503274 Current transformer attachment Primary current 200 A 1 pc(s)
Description
Plug-on current transformer 200/5A, primary current 200 A, secondary current 5 A, power 2.5 VA, class 1, primary conductor 30 x 10 mm, 25 x 12 mm, 20 x 20 mm, round conductor 25.7 mm, width 60 mm, housing classification: UL94-V2, protection class: IP20, Ambient temperature: -5.... +50 °C, weight: 0.23 kg.
This text is machine translated.
This text is machine translated.
Features
- UL certified.
- World's first current transformer with screwless connection technology - spring-loaded terminal
- Innovative, time-saving connection option (front or top) for solid and flexible conductors (max. 4 mm² – wire end sleeves can be omitted)
- Shock-proof and vibration-proof, high mechanical holding forces
- Maintenance-free, gas-tight connection
- High current strength
- Thermometers Rated continuous current Icth: 1.2 X IN
- Low-voltage current transformers for max. operating voltages up to 1.2 kV; can be used in 690 V networks
- This text is machine translated.
