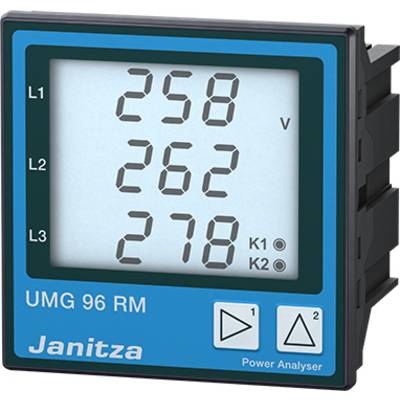

Janitza UMG 96RM-P All-purpose tester L-N: 10-300 VAC, L-L: 18-520 VAC
EAN:
Part number:
Item no:
Number
Total (€ 578.99 / piece)
€
Only 3 Piece(s) available
Highlights & Details
Universal measuring device UMG96RM-P, Profibus
- 4 digital inputs
- 6 digital outputs
- 4ter current transformer for N-conductor measurement
- USB port
- Separate auxiliary voltage 90...277 V/AC, 90…250V/DC.
- Profibus
Technical specifications
- Type
UMG 96RM-P
- Dim
(L x W x H) 78 x 96 x 96 mm
- Weight
790 g
- Height
96 mm
- Length
78 mm
- Width
96 mm
- Reading range
L-N: 10-300 VAC, L-L: 18-520 VAC
- Product type
All-purpose tester
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1173471 Janitza UMG 96RM-P All-purpose tester L-N: 10-300 VAC, L-L: 18-520 VAC
Information
Information 1173471 Janitza UMG 96RM-P All-purpose tester L-N: 10-300 VAC, L-L: 18-520 VAC
Conformity certificate
Conformity certificate 1173471 Janitza UMG 96RM-P All-purpose tester L-N: 10-300 VAC, L-L: 18-520 VAC
Description
The UMG 96 RM is a very compact and powerful universal measuring device used primarily for use in low-voltage and medium-voltage distribution systems.
Measuring, monitoring and inspection of electrical characteristics in energy distribution systems provides load profiles for energy management systems (e.g. ISO 50001).
Detection of energy consumption for cost center analysis measuring transducer for building control system or SPS (Modbus) monitoring of voltage quality large, e. g. Harmonics up to the 40th.
This text is machine translated.
Measuring, monitoring and inspection of electrical characteristics in energy distribution systems provides load profiles for energy management systems (e.g. ISO 50001).
Detection of energy consumption for cost center analysis measuring transducer for building control system or SPS (Modbus) monitoring of voltage quality large, e. g. Harmonics up to the 40th.
This text is machine translated.
Scope of delivery
- Fasteners
- Operating instructions
- Software GridVis Basic
