Jonsbo TK-1 2.0 Tempered Glass Microtower PC casing Black

The Jonsbo TK-1 2.0 Micro-ATX housing: Elegant and modern

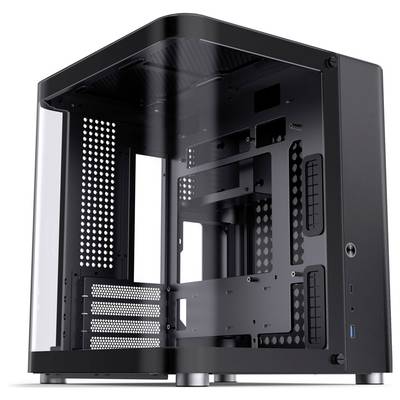

The exterior of the Jonsbo TK-1 2.0 Micro-ATX housing is an elegant and modern cube design with rounded edges and flawless processing. The U-shaped Tempered Glass panel extends from the front to the left and even covers a small part of the back. The rounded shape gives the TK-1 2.0 Micro-ATX casing its unique design and puts your high performance hardware and skillfully in the scene.

Plenty of space for hardware
The TK-1 2.0 Micro-ATX casing has a two-chamber design. In the main chamber you present your motherboard with GPU with a length of up to 280 mm. The right-hand compartment houses the power supply and either two 3.5-inch or one 2.5-inch and one 3.5-inch drive. There is then also plenty of room for cable management.

With its dimensions of 299 x 345 x 310 millimeters, the TK-1 2.0 Micro ATX casing of Jonsbo is still quite compact and can accommodate mature gaming hardware. Along with a Mini-ITX and Micro-ATX mainboard graphics cards with a length of up to 280 millimeters can also be fit.

Motherboard tray for motherboards with back connections
The motherboard tray represents a special feature of this housing. It has slots for motherboards with rear connectors, for example for the BTF series from Asus, from the stealth project from Gigabyte or from the project zero from MSI. The cable routing from the main board is therefore done directly and invisibly in the second chamber to the power supply and the drives.

Fireplace effect for optimal cooling
Two 120 mm fans can be mounted on the floor for cooling. Two additional 120-series fans are placed in the lid of the noble casing and reinforce the natural chimney effect, which is useful for cooling all the components. Alternatively, a 240-mm radiator can be attached at the cover. Holes on the cover, on the right side and the rear side provide the air supply. An air filter is installed at the bottom, which can be removed and attached as required. Ventilation holes also provide cooling for the second chamber.

Discreet I/O panel
The right-hand panel closes at the front with an aluminum panel in which the Power switch, the 3.5 mm audio socket, the USB C-3.1 and the USB A-3.0 connection are discreetly embedded.
