Joy-it BUTTON22C-M-RD BUTTON22C-M-RD Button 250 V AC 15 A 1 x On/(Off) momentary Red (Ø x H) 25 mm x 34.50 mm IP67, IK10
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Switch/button features
illuminable
Recess mount
Front ring (steel)
+ adapter
+ fixing adapter
+ thread
+ LED
round
- Casing/button colour
Silver
- Functions
momentary
- Lighting type
LED
- Mounting type
Screw thread
- Colour
Red
- Bulb type
LED (monochrome)
- Switch position
1 x On/(Off)
- Contact type
2 makers
- Material
Stainless steel
- Contact material
PA 66
- Connection
Plug
- Contact resistance
50 mΩ
- Resistance
1000 Ω
- Switching voltage
250 V AC
- Max. switching capacity
250 VA
- Switching current (max.)
15 A
- Dielectric strength
1000 V AC
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Width
25 mm
- Height
34.50 mm
- (Ø)
25 mm
- Recess length
48.50 mm
- Button diameter
24.80 mm
- Recess diameter
22.20 mm
- Recess width
25 mm
IP67
IK10
- Content
1 pc(s)
- Insulation resistance
1000 MΩ
- Dim
(Ø x H) 25 mm x 34.50 mm
- RoHS-compliant
- Type
BUTTON22C-M-RD
- Switching current (inductive)
4 A
- Product type
Button
Documents & Downloads
Datasheet
Datasheet 2356169 Joy-it BUTTON22C-M-RD BUTTON22C-M-RD Button 250 V AC 15 A 1 x On/(Off) momentary Red (Ø x H) 25 mm x 34.50 mm IP67, IK10
User & Safety Instructions
User & Safety Instructions 2356169 Joy-it BUTTON22C-M-RD BUTTON22C-M-RD Button 250 V AC 15 A 1 x On/(Off) momentary Red (Ø x H) 25 mm x 34.50 mm IP67, IK10
Conformity certificate
Conformity certificate 2356169 Joy-it BUTTON22C-M-RD BUTTON22C-M-RD Button 250 V AC 15 A 1 x On/(Off) momentary Red (Ø x H) 25 mm x 34.50 mm IP67, IK10
Description

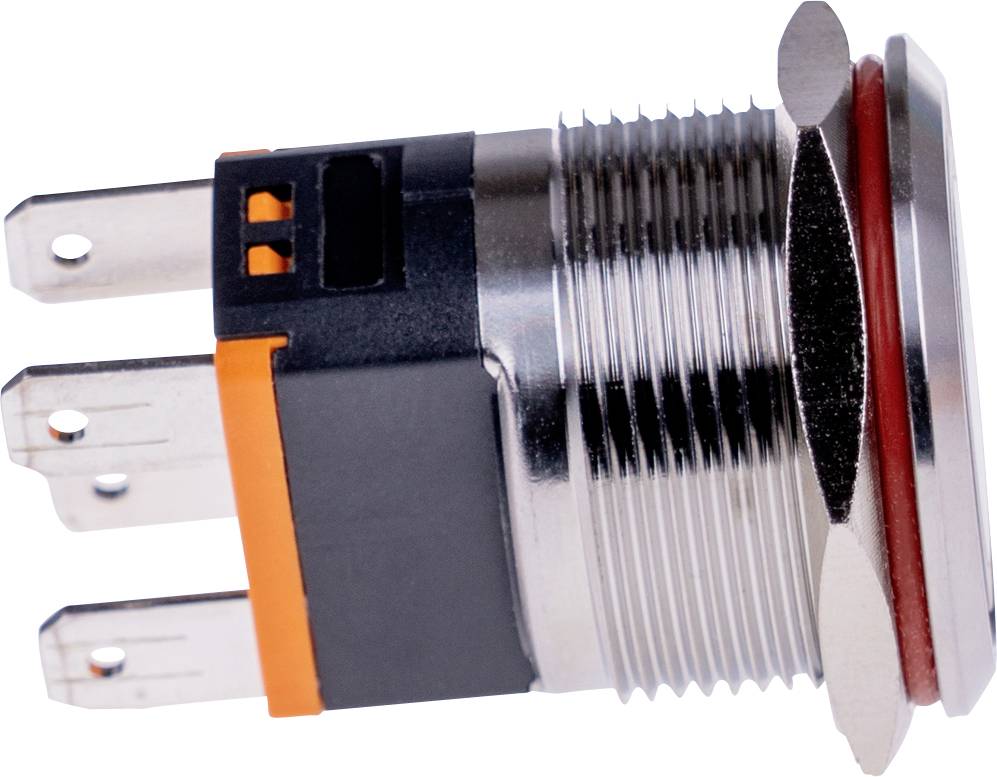

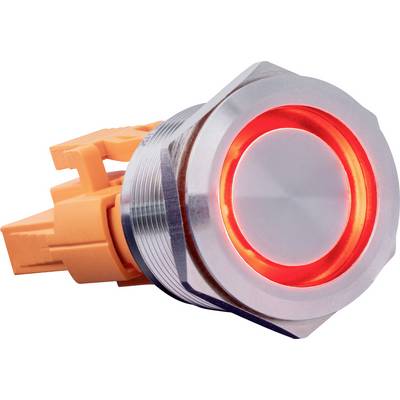

Our fast steel button convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (blow) and PA66 (flame). Due to the protection classes, the large temperature range and the long-range, our steel sensor is suitable for many applications. The steel button has a bright LED ring (red). Due to the concave design of the surface, there are no sharp edges. The connection cables and the sockets have different colors and shapes, so that the switches Vari-anten (22A / 22B / 22C) are not confused.
The necessary connection cables, bushing, sealing ring and nut are already included in the delivery.
This text is machine translated.
The necessary connection cables, bushing, sealing ring and nut are already included in the delivery.
This text is machine translated.
Scope of delivery

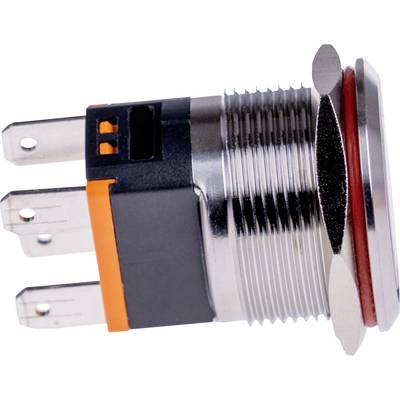

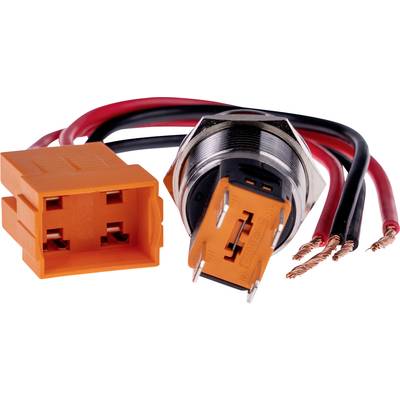

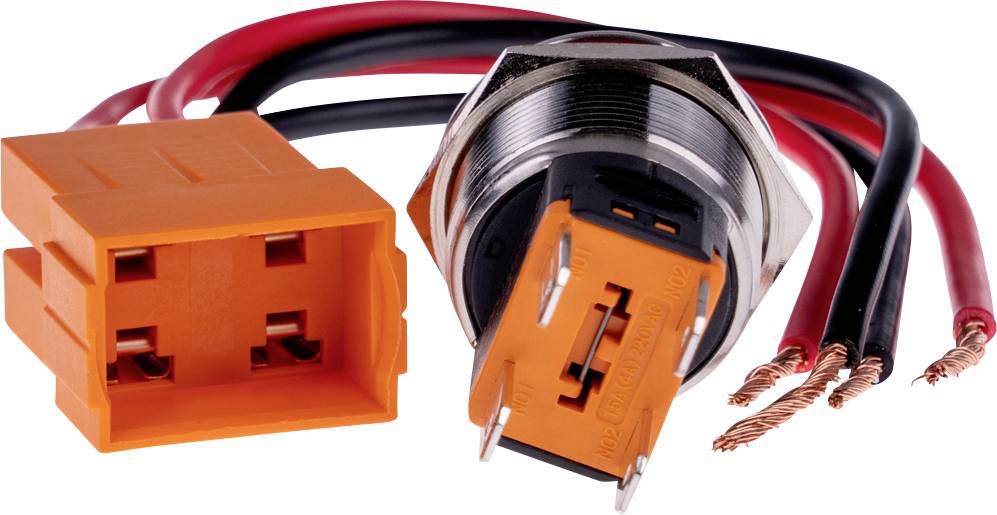

- Steel button, connection cable, bushing, sealing ring, nut
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
