Joy-it COM-OLED2-42 Module 6.1 cm (2.42 inch) 128 x 64 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

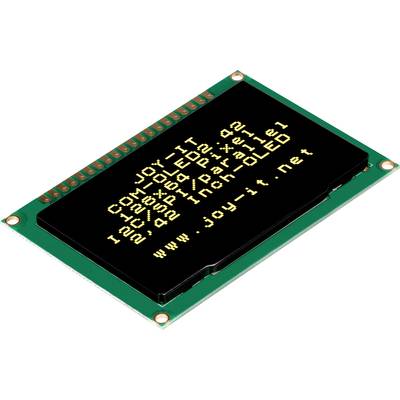

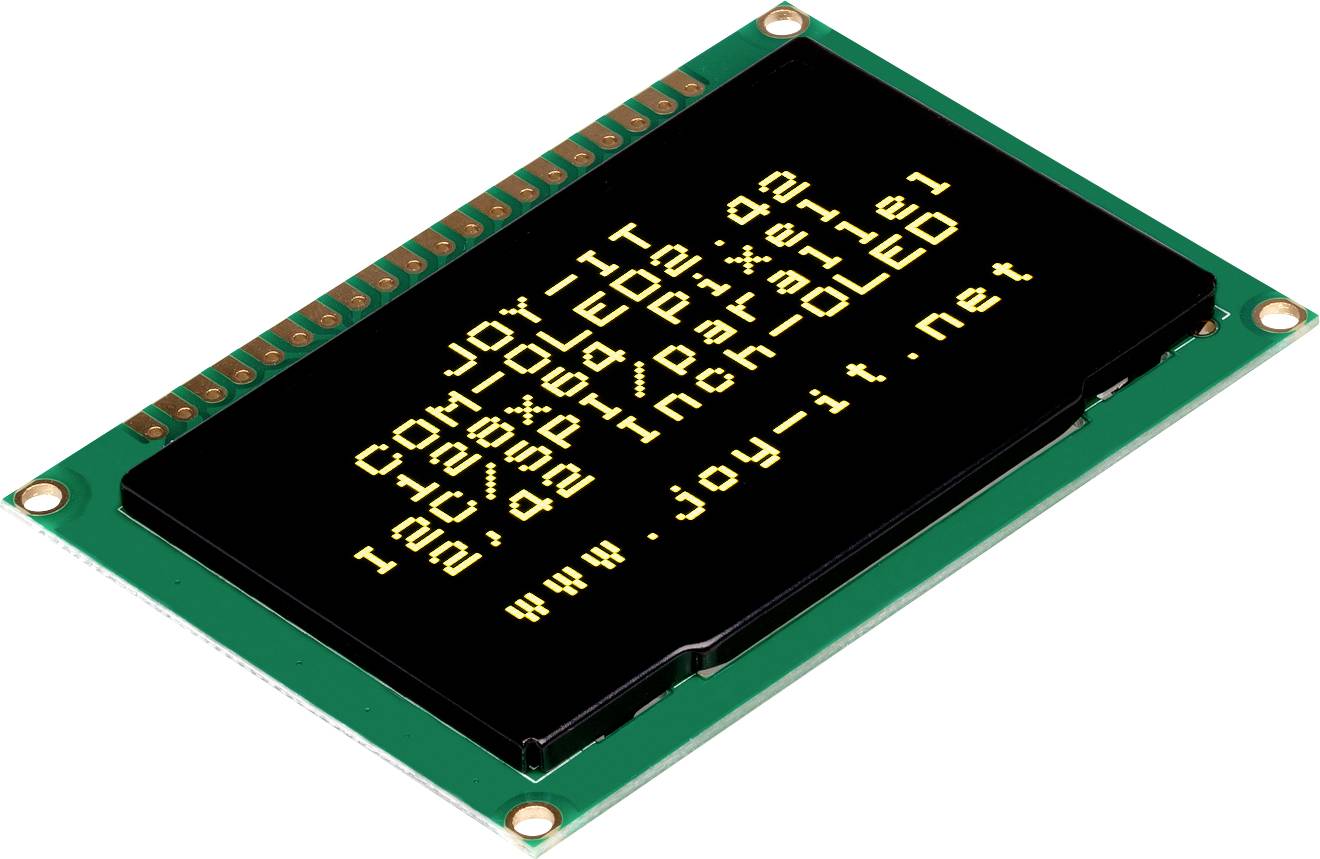

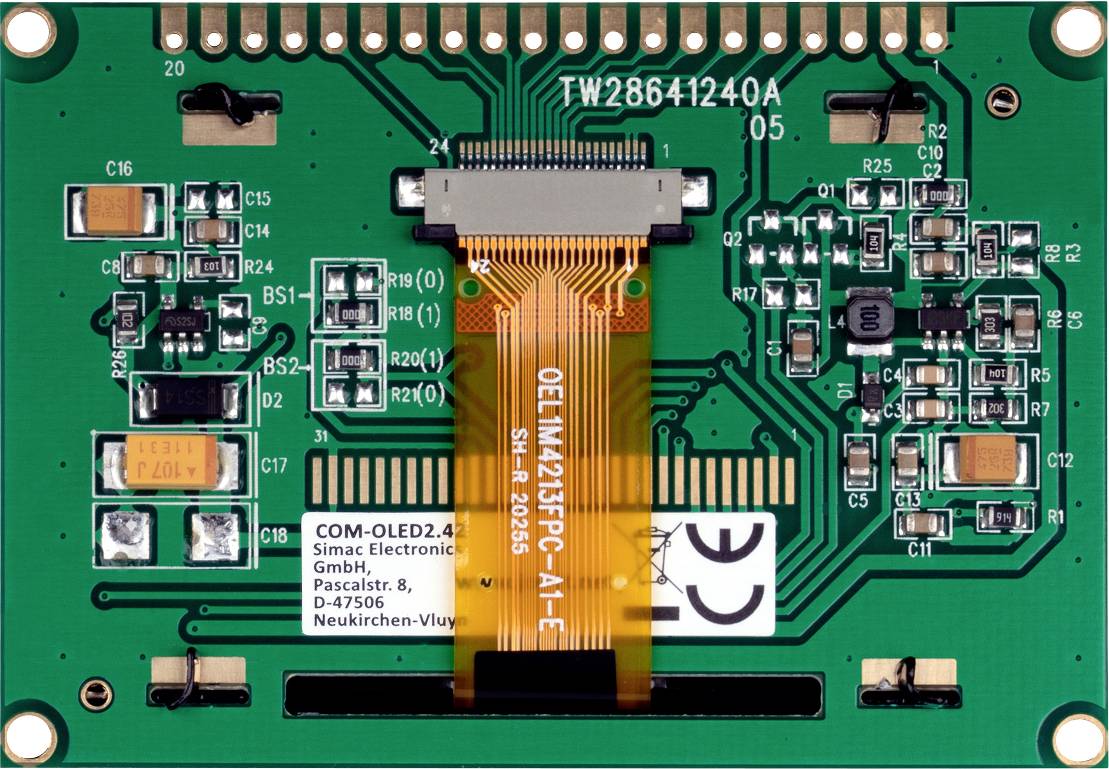

2.42" OLED display, GE/SW, 128x64 Pix
- Interfaces: SPI, I2C, 8 PIN parallel, 6800/8080
- Incl. multiway connector (not soldered)
- 128x64 pixels
- Yellow light on black background
- Contrast: Greater than 2000:1
- Application range: -40 to +85 degrees Celsius
- ideal for integration
Technical specifications
- Type negative OLED
- Display/background color yellow on black
- Chipset SSD1309
- Interface delivery status: SPI
- Further: I2C, 8 pin parallel
- 6800 / 8080 (to change the interface must
- soldering)
- Supply voltage 3 - 5 V.
- Supply current 90 mA
- Logic level 3 V
- High level input at least 2.4 V.
- Low level input max. 0.6 V
- Viewing angle greater than 160 °
- allowed Operating temperature -40 °C to + 85 °C
- Product type
Display
- Display technology
OLED
- Display (cm)
6.1 cm
- Screen size diagonal (inches)
2.42 inch
- Display resolution
128 x 64 Pixel
- Brightness (min)
100 cd/m²
- Brightness (max.)
120 cd/m²
- Static contrast ratio
2000 : 1
- Length
50 mm
- Width
71 mm
- Height
7 mm
Documents & Downloads
Datasheet
Datasheet 2348034 Joy-it COM-OLED2-42 Module 6.1 cm (2.42 inch) 128 x 64 Pixel
Datasheet 2348034 Joy-it COM-OLED2-42 Module 6.1 cm (2.42 inch) 128 x 64 Pixel
User & Safety Instructions
User & Safety Instructions 2348034 Joy-it COM-OLED2-42 Module 6.1 cm (2.42 inch) 128 x 64 Pixel
Description
This high-quality OLED display
Provides good image quality and
has by its 4 different
Communication interfaces
Wide range of applications.
For the integration you will find technical drawings in the data sheet and the instructions in the download area.
This text is machine translated.
Provides good image quality and
has by its 4 different
Communication interfaces
Wide range of applications.
For the integration you will find technical drawings in the data sheet and the instructions in the download area.
This text is machine translated.
Scope of delivery
- Display, PIN bar
