Joy-it COM-ZYPDS 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€
Highlights & Details

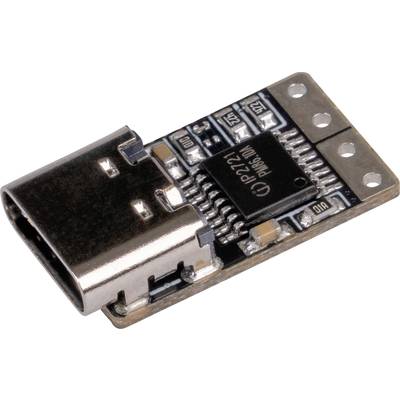

USB-C-PD on solder pad trigger module, 5-20V, max 100W, max 5A, USB-C, ZYPDS
- Input interface USB-C.
- Output interface solder pads
- Up to 20 V / 100 W.
- 5 V / 15 V / 20 V (adjustable via resistors 0201 Imp.)
Technical specifications
- Output voltage
- 5 V / 15 V / 20 V (adjustable via resistors 0201 Imp.)
- Supply voltage
- Up to 20 V / 100 W) PD-capable USB power supply (not included)
- Output current
- 5 A at 20 V, 3 A at less than 20 V.
- Output power
- Max. 100 W
- Input interface
- USB C
- Output interface
- Solder pads
- Product type
Converter
- Tool type
Converter
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2475891 Joy-it COM-ZYPDS 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2475891 Joy-it COM-ZYPDS 1 pc(s)
Description
With this small module you can trigger USB-PD protocols and thus charge your laptop via a PD-capable USB-C power supply. The output voltage can be set by setting a resistance in three stages (5 V, 15 V and 20 V). The module can be highly integrated due to its small form factor and its flexible output interface.
