Joy-it Module 3.3 cm (1.3 inch) 240 x 240 Pixel SBC slot
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 10.92
-42 %
€
Highlights & Details
1.3 inch - IPS - TFT display - SPI - 3.3
- 1.3 inch // 240x240 pixels
- SPI interface
- ideal for NodeMCU, Pi or other
- Pixel density 260 PPI
- IPS TFT display
- Control chip: ST7789VW
- Supply 3.3 V
Technical specifications
- Display type: Color IPS TFT LCD
- Resolution 240 x 240 pixels
- Tax schip: ST7789VW
- Interface: SPI
- Supply voltage 3.3 V.
- Supply current 8 - 10 mA
- Logic level voltage 3.3 V
- Response time 30 - 35 ms
- Permissible operating temperature - 20 °C - 70 °C.
- Product type
Display
- Display technology
LCD
- Display (cm)
3.3 cm
- Screen size diagonal (inches)
1.3 inch
- Display resolution
240 x 240 Pixel
- Interfaces
SPI
- Features
SBC slot
- Brightness (min)
300 cd/m²
- Brightness (max.)
350 cd/m²
- Static contrast ratio
800 : 1
- Length
27 mm
- Width
30 mm
- Height
10 mm
- Max. operating voltage
3.3 V
- Max. temperature
70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2346746 Joy-it Module 3.3 cm (1.3 inch) 240 x 240 Pixel SBC slot
User & Safety Instructions
User & Safety Instructions 2346746 Joy-it Module 3.3 cm (1.3 inch) 240 x 240 Pixel SBC slot

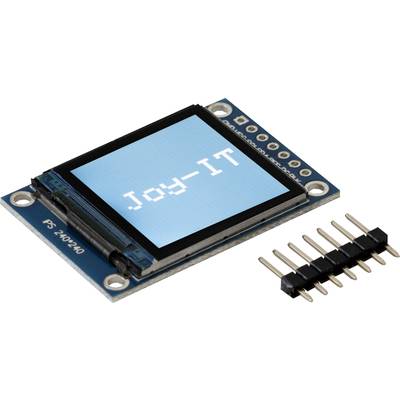

Description
This IPS TFT display is controlled via SPI. It is therefore ideal for use as an output device on microcontrollers (e.g. NodeMCU) and singleboard computers (e.g. Raspberry Pi, Arduino). By using a high-resolution IPS panel with a pixel density of over 260 PPI, content can be displayed in high resolution on the compact display.
This text is machine translated.
This text is machine translated.
Scope of delivery
- TFT module, quiet pen
