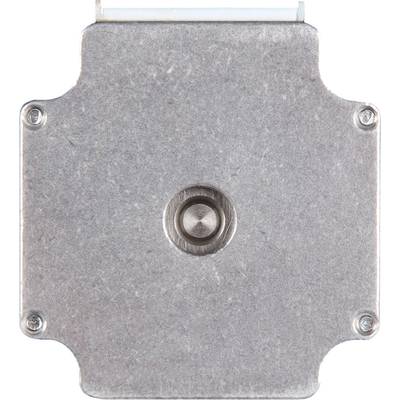

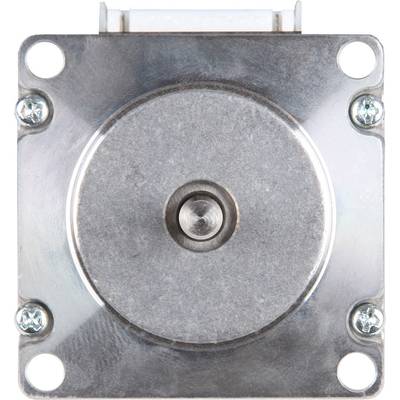

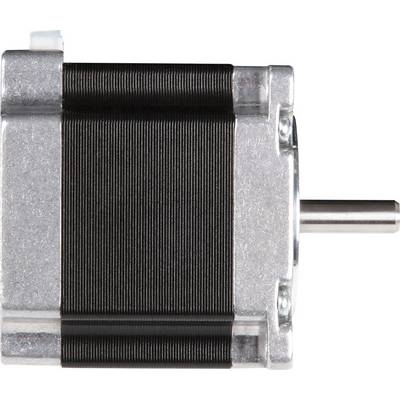

Joy-it Stepper motor Nema23-02 Nema23-02 1.2 Nm 2.5 A Shaft diameter: 6.35 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€
Only 4 Piece(s) available
Highlights & Details
NEMA 23 stepper motor - 2.5A - 1.2 NM
- High product quality
- Connection: 4-pin socket (JST plug)
- Ideal for robotics, CNC, automation, milling
- Temperature range -10 to +50 degrees
- Insulation class: B (up to 130 degrees)
- Steps per revolution : 200
Technical specifications
- Shaft dimensions
- Ø 8 x 20 mm (single shaft)
- Specification:
- 57SHD0408-21
- Connection
- 4-pin socket (JST)
- Steps per revolution
- 200
- Dimensions
- 56 x 56 x 56 mm
- Included in the delivery
- NEMA23-02 engine
- FEATURES
- Holding torque
- 1.2 Nm
- Nominal voltage
- 3 V / 3
- Nominal current
- 2.5 A
- Step angle
- 1.8 °
- Number of phases
- 2
- Phase resistance
- 1.2 Ω
- Phase inductance
- 4.2 mH
- Insulating resistance
- 500 V DC
- Insulation class
- B (130°)
- Moment of inertia
- 260 g
- cm²
- Snap-in torque
- 0.04 Nm
- allowed Temperature range:
- -10 °C - 50 °C
- Angle
1,8°
- Holding torque
1.2 Nm
- Shaft Ø
8 mm
- Shaft length
20 mm
- Manufacturer part #
Nema23-02
- Type
Nema23-02
- Width
56 mm
- Nominal current
2.5 A
- Nominal voltage
3 V
- Phases
2
- Shaft Ø
6.35 mm
- Motor length
56 mm
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2148832 Joy-it Stepper motor Nema23-02 Nema23-02 1.2 Nm 2.5 A Shaft diameter: 6.35 mm
User & Safety Instructions
User & Safety Instructions 2148832 Joy-it Stepper motor Nema23-02 Nema23-02 1.2 Nm 2.5 A Shaft diameter: 6.35 mm
Conformity certificate
Conformity certificate 2148832 Joy-it Stepper motor Nema23-02 Nema23-02 1.2 Nm 2.5 A Shaft diameter: 6.35 mm
Description
This stepper motor can be optimally used for tasks in the fields of automation, CNC (e.g. Milling, etc.) or robotics.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Motor
