Jumo dTRON 304 PID Temperature controller Pt100, Pt500, Pt1000, KTY11-6, L, J, U, T, K, E, N, S, R, B, C, D -200 up to +
EAN:
Part number:
Item no:
Thermostat type
PID
Operating voltage
110 V AC
230 V AC
Max. temperature reading
+2400 °C
Outputs (thermostats)
3 A relay
Analogue current
No. of relay outputs
2
Datasheet (PDF)
Technical specifications
- Protection: front IP65, rear IP20
- Power 0 - 20 mA, 4 - 20 mA
- Voltage 0 - 10 V, 2 - 10 V
- Two digital inputs: Via potential free contacts
- Type
dTRON 304
- Thermostat type
PID
- Operating voltage
110 V AC
230 V AC
- Reading range
-200 up to +2400 °C
- Max. temperature reading
+2400 °C
- Min. temperature reading
-200 °C
- Outputs (thermostats)
3 A relay
Analogue current
- No. of analogue inputs
1
- No. of relay outputs
2
- Dim
(L x W x H) 105 x 96 x 96 mm
- Height
96 mm
- Length
105 mm
- Width
96 mm
IP65 (on front)/IP20 (on back)
- Sensor type
Pt100
Pt500
Pt1000
KTY11-6
L
J
U
T
K
E
Show more
- Manufacturer part #
703044
- Type
3-point stepper controller
- Recess depth
90 mm
- Mounting type
Recess-mount
- Assembly dimensions
92 x 92 mm
- Sensor type
Pt100, Pt500, Pt1000, KTY11-6 · Thermocouple types L, J, U, T, K, E, N, S, R, B, C, D
- Mounting depth
90 mm
- Operating voltage
110 - 240 V AC
- Product type
Temperature controller
Documents & Downloads
Datasheet
Datasheet 198742 Jumo dTRON 304 PID Temperature controller Pt100, Pt500, Pt1000, KTY11-6, L, J, U, T, K, E, N, S, R, B, C, D -200 up to +
User & Safety Instructions
User & Safety Instructions 198742 Jumo dTRON 304 PID Temperature controller Pt100, Pt500, Pt1000, KTY11-6, L, J, U, T, K, E, N, S, R, B, C, D -200 up to +
User & Safety Instructions 198742 Jumo dTRON 304 PID Temperature controller Pt100, Pt500, Pt1000, KTY11-6, L, J, U, T, K, E, N, S, R, B, C, D -200 up to +
Description

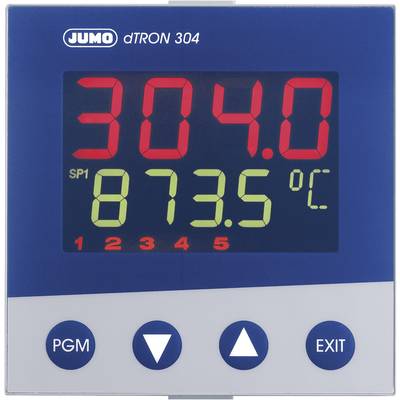

The JUMO dTRON 300 series of controllers is made up of four freely programmable devices in different DIN formats, for the control of temperatures, pressures and other process variables. The high-contrast, multi-coloured LCD screen for actual value, set-point and user management consists of two four-position 7 segment readouts, two one-position 16 segment readouts, display of the active set-point, six switch setting indicators and displays showing units, ramp function and manual operation.
Easy to operate through four buttons. The device can be used as a two-point, three-point, three-point stepping controller or constant controller.
Common features: Four programmable setpoints, two parameter sets · Program function with eight sections or ramp function · Maximum of four limit comparators · Two timer functions · Two self optimizing experience · Fast friendly configuration with setup program and program editor.
Easy to operate through four buttons. The device can be used as a two-point, three-point, three-point stepping controller or constant controller.
Common features: Four programmable setpoints, two parameter sets · Program function with eight sections or ramp function · Maximum of four limit comparators · Two timer functions · Two self optimizing experience · Fast friendly configuration with setup program and program editor.
Features
- Protection class: front side IP 65, reverse side IP 20
- Current 0 - 20 mA, 4 - 20 mA
- Voltage 0 - 10 V, 2 - 10 V
- Two binary inputs: over potential-free contacts.
- Output: two relays (changeover) Switching power: 3A at 230VAC resistive load
- Relay (normally open contact) Voltage supply for two cable measuring transducer
- Voltage: galvanically isolated, unregulated, 30 V unloaded, 23 V at 30 mA
- Option (only for constant controller version): one analog output 0 - 20 mA, 4 - 20 mA, 0 - 10 V.
