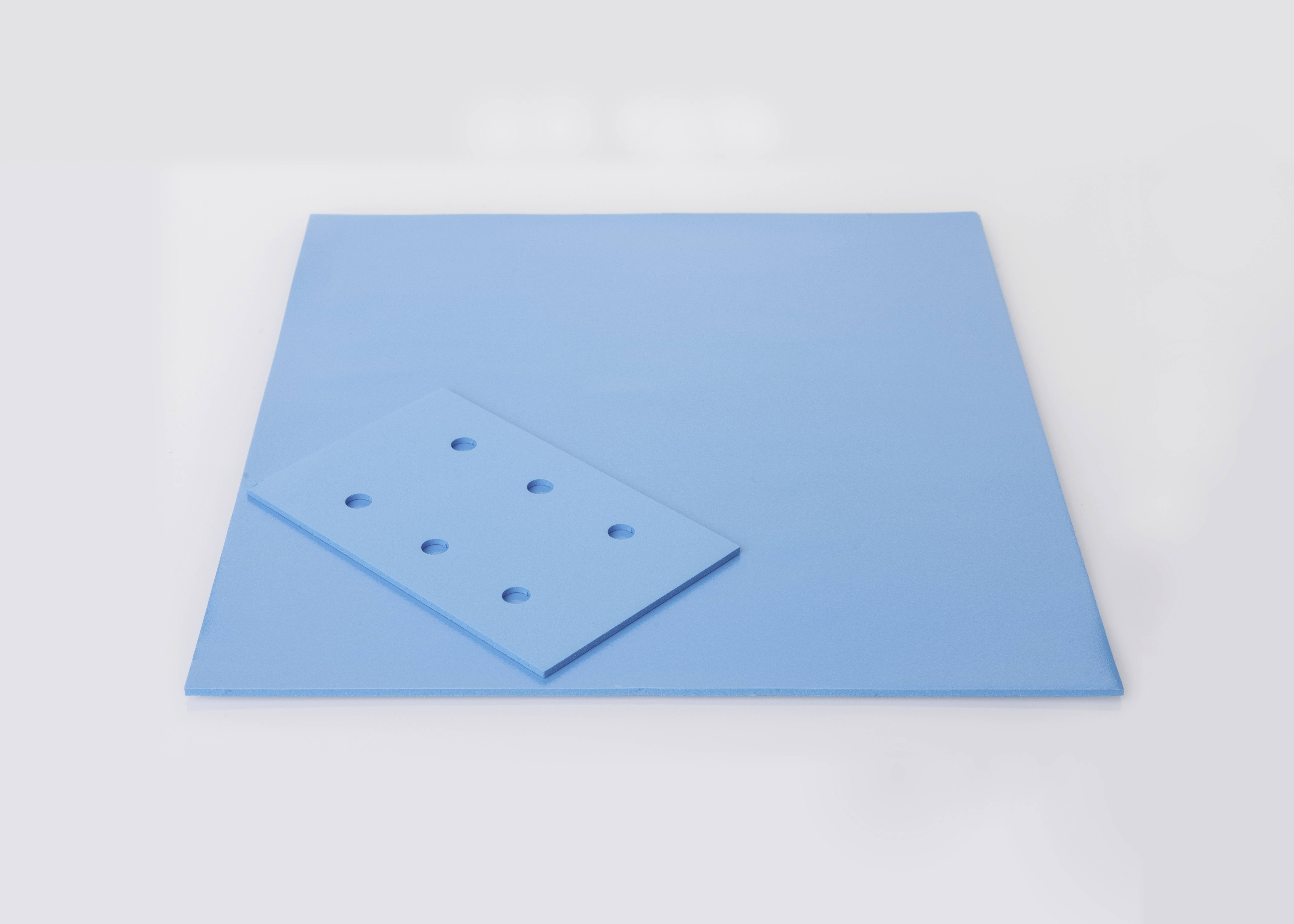

Kerafol 1.003500.ST.01000.W003391 3500 Thermally conductive pad 1 mm 3.5 W/mK (L x W) 120 mm x 200 mm
EAN:
Part number:
Item no:
Product type
Thermally conductive pad
Thermal conductivity
3.5 W/mK
Material thickness
1 mm
Length
120 mm
Width
200 mm
Datasheet (PDF)
28 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M2 = € 1,120.00
€ 26.88
3
1 M2 = € 1,071.25
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m2 = € 1,120.00)
€
Technical specifications
- Product type
Thermally conductive pad
- Type
3500
- Content
1 pc(s)
- Thermal conductivity
3.5 W/mK
- Factory colour
Azure
- Material thickness
1 mm
- Dim
(L x W) 120 mm x 200 mm
- Length
120 mm
- Width
200 mm
- Max. temperature
+200 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2756269 Kerafol 1.003500.ST.01000.W003391 3500 Thermally conductive pad 1 mm 3.5 W/mK (L x W) 120 mm x 200 mm
User & Safety Instructions
User & Safety Instructions 2756269 Kerafol 1.003500.ST.01000.W003391 3500 Thermally conductive pad 1 mm 3.5 W/mK (L x W) 120 mm x 200 mm
Description
KERATHERM® SOFTTHERM® films, also known as gap pads or gap fillers, are a group of highly elastic ceramic-filled films. They are characterized by their extremely good compressibility, optimal plasticity with simultaneous good heat transfer and good electrical properties. The Keratherm® - Softtherm® 3500 is characterized by very good thermal, 3.5 W/mK, and dielectric properties of 10 kV/mm. Owing to its very good elastic and adaptable behavior the 3500 is also very suitable for pressure-sensitive applications.
This text is machine translated.
This text is machine translated.
Features
- PropertiesHighly flexible filmExcellent flexibilityVersatile thermal conductivity rangeGood electrical insulationHigh temperature stabilityPossible applicationsRD-RAM memory chipsHeat Pipe thermal solutionsAutomotive IndustryControl unitsPlasma supply consolesAdvantagesBalancing of component irregularitiesOptimized thermal transitionGood compression behaviorUL listedSlide optionsOptionally one-sided adhesive coatingSpecial thickness possibleAvailable as roll goods or punching goodsGlass-fiber reinforcement is possible if necessary
