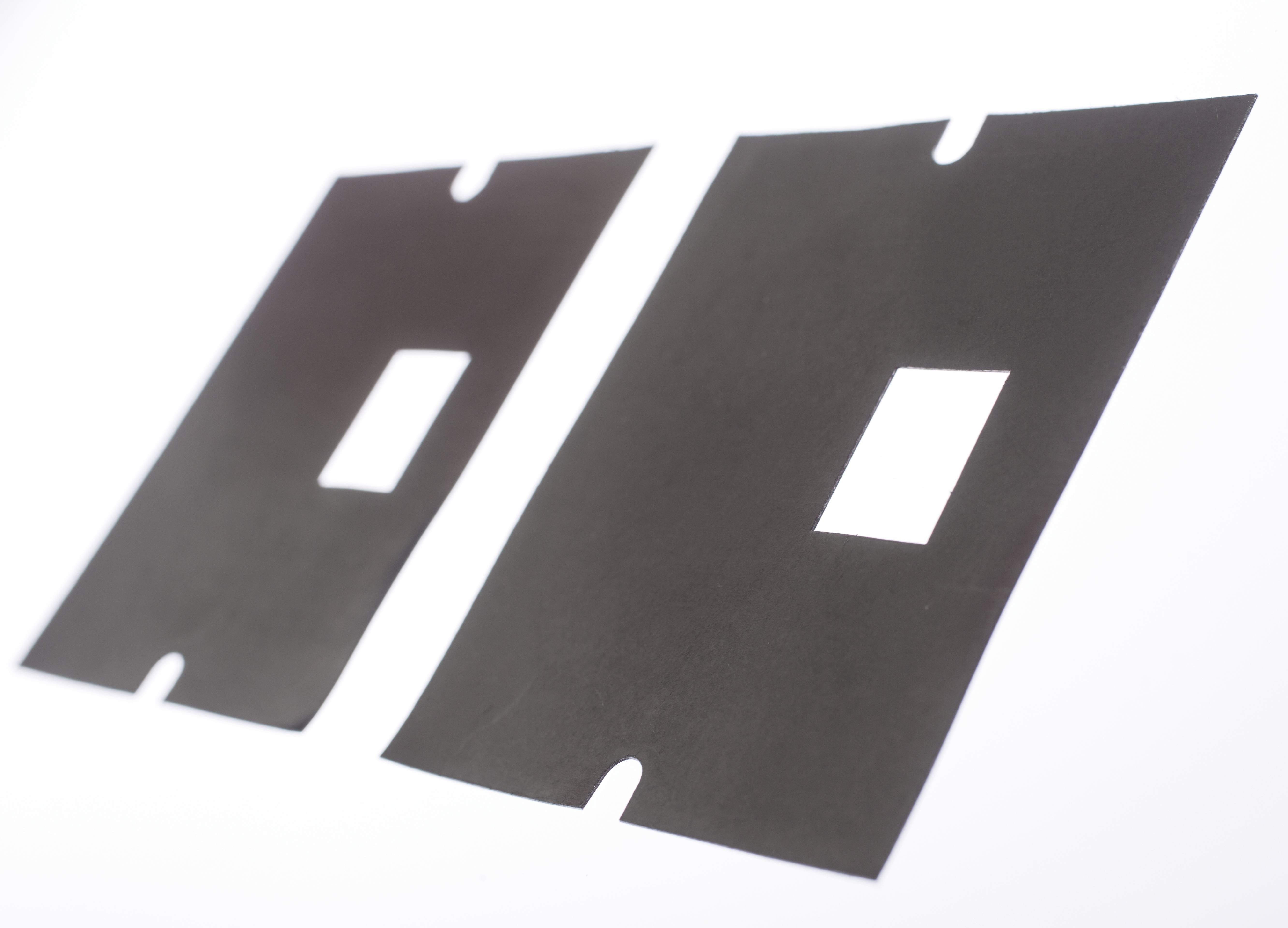

Kerafol S900 Thermally conductive film 0.2 mm 7.5 W/mK (L x W) 190 mm x 190 mm

Graphite films are based on 100% pure graphite. The films are available uncoated and for specific applications also with filled adhesive or standard adhesives. Due to their high thermal conductivity they are used, for example, in the CPU area. KERATHERM® Graphite S 900 is a high-density natural graphite that is rolled and pressed into films or plates without the presence of binder. S 900 has extraordinary properties and is therefore particularly suitable as a cost-effective alternative to conventional interface material. The anisotropy of the thermal properties, combined with a possible weight saving of up to 30% as compared to conventional materials made of copper or aluminum, makes the S 900 interesting in the field of application of the head-spreader. Furthermore, applications are possible in vacuum or even at high temperatures (- 500°C).
